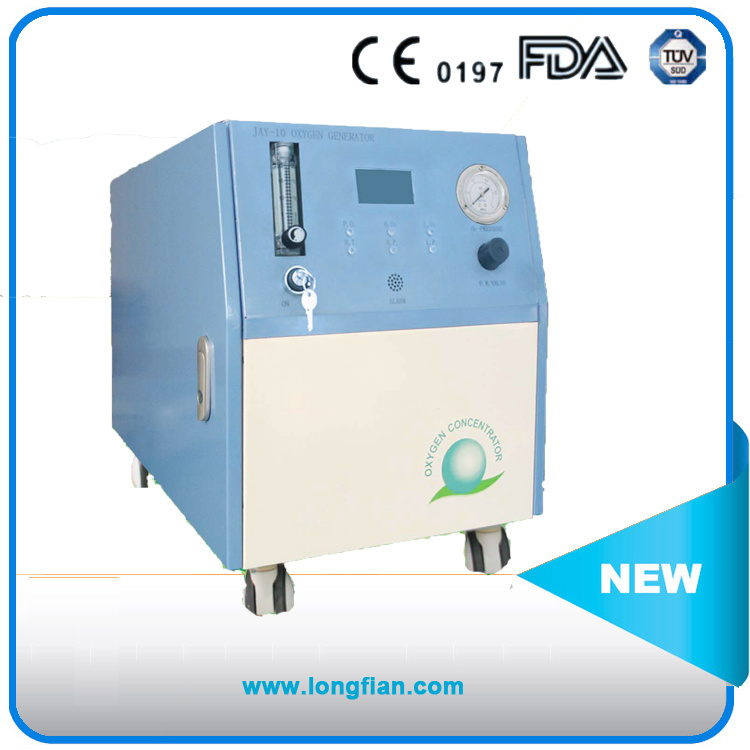

Large pressure oxygen concentrator(JAY-15)
Features:
Automatic on and off
Manually remove the alarm
Emergency stop button
Audio and visual alarm for high&low pressure
Full digital control system
Low purity alarm function
Specification
Oxygen flow (L/min): 15
Air flow (L/min): 15
Oxygen outlet pressure (Mpa): ≥ 0.38Mpa
Air outlet pressure (Mpa): ≥ 0.38Mpa
Oxygen concentration: ≥ 90%
Sound level: ≤ 60dB
Power: AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hz
Power consumption: ≤ 1250W
Alarm: Power failure alarm, high&low pressure alarm
Net weight: 80kg
Size(cm): 60*50*100.
| Model | JAY-10 | JAY-15 | JAY-20 |
| Oxygen Flow | 0-10L/min | 0-15L/min | 0-20L/min |
| Outlet Pressure(Mpa) | 0.14-0.4 |
| Oxygen concentration | 93%±3% |
| Sound level(dB) | ≤55 db | ≤60db | ≤60db |
| Power | AC220V±22V 50Hz±1HzAC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available) |
| Power Consumption | 600/850 | 1500/1550 | 1800 |
| LCD display | Switch times, Operating pressure, Present Working Time Accumulating Time,Presetting time from 10 mins to 40 hours |
| Alarm | Power failure alarm, High&Low pressure alarm; |
| Dehumidifier | Automatic Dehumidifier | Automatic Dehumidifier/ Refrigerated air Dryer | Refrigerated air Dryer |
| Net weight (Kg) | 45/ 65 Kgs | 85/118 Kgs | 125 Kgs |
| Size (mm) | 365x375x600mm
830*360*600mm | 920x360x660mm
860x580x660mm | 860x640x660mm |
