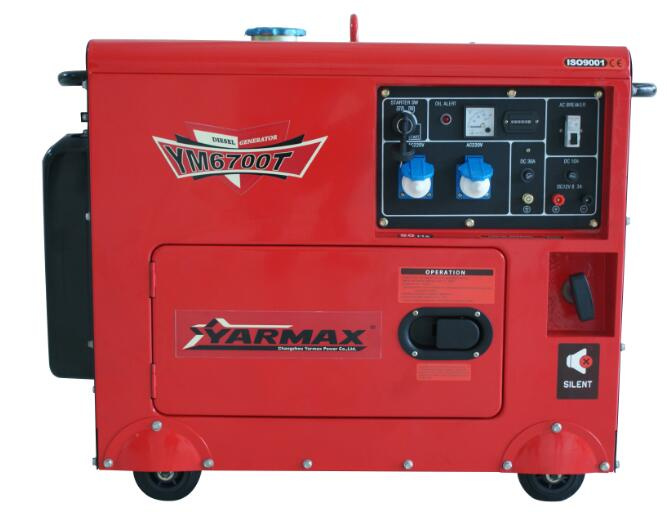

6 kVA Silent Diesel Generator
| Price: |
US $ 300-600/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Model | YM6500T |
| Rated frequency | 50 60 |
| Rated output(kVA) | 4.5 5.0 |
| Max. output(kVA) | 5.0 5.5 |
| Rated Voltage(V) | 230 or as requested |
| Rated current (A) | 19.6 |
| Rated rotation speed(r/min) | 3000 3600 |
| Phase NO. | Single phase |
| Power factor(Cos Φ) | 1 |
| Insulation Grade | B |
| Pole number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| Panel Type | General Panel |
| Voltage(V) | 230 or as requested |
| Receptacle | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension(L×W×H)mm | 930×530×740 |
| Dry weight(kg) | 170 |
| Working assorting weight | 185 |
| Noise level(7m)dB(A) | 72 |
| Structure type | Silent type |
| Engine Model | YM186FAG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection |
| Cylinder NO.-bore×stroke(mm) | 1-86×72 |
| Displacement(ml) | 418 |
| Rated power[KW/(r/min)] | 5.7/3000 |
| Compression ratio | 19:01 |
| Rated rotation speed(r/min) | 3000 |
| Cooling system | Air cooled |
| Combustion system | Direct injection |
| Starting system | Electric starter |
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
| Lube oil brand | CD grade or SAE10W-30,15W-40 |
| Lube capacity(L) | 1.65 |
| Starting motor capacity( V-kW) | 12V 0.8kW |
| Charging generator capacity ( V-A) | 12V 3A |
| Battery capacity(v-Ah) | 12V 30-36Ah |
| Fuel consumption(g/kw.h) | ≤360 |
| Fuel tank capacity(L) | 15 |
| Continuous running time(hr) | 6 |
Since 2007 Changzhou Yarmax Power Co,. Ltd specialized in the ultimate power solution, research, design and production of Engines, Power Generators and Water Pumps with the state of art of the technology and unique design.We only focus on the great goal to be the power expert by your side.YARMAX Power. Power The World !Our main products including Air Cooled Diesel Engine, Air Cooled Diesel Generators, Welding Generators, Water Pumps and Water Cooled Diesel Generator from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001; 2000 and CE. We keep seeking researching and producing new variety of products with our very skillful professional team of technicians and workers. Our products have good reputation and goodwill in both local and international market.We encourage the participation of all our staff members to reply on quality, development and creativity. We also strictly follow the valuable feedbacks of our valuable customers and agents.We are looking forward to co-work with overseas companies based on mutual benefits and provide the best service to the world !
| Prod Model: |
YM9700T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Output: |
2-7kw |
| Rated Frequency: |
50/60Hz |
| Noise Level(7m): |
70-72 |
| Lubrication System: |
Direct Injection |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Three Phase |
| Speed: |
3000/3600r/Min |
| Excitation Mode: |
Self-Excitation/Constant Voltage (AVR) |
Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
Yarmax Power - your ideal choice
