Home Generator Products 6.5kw Wave Stator and Rotor for Gasoline Generator

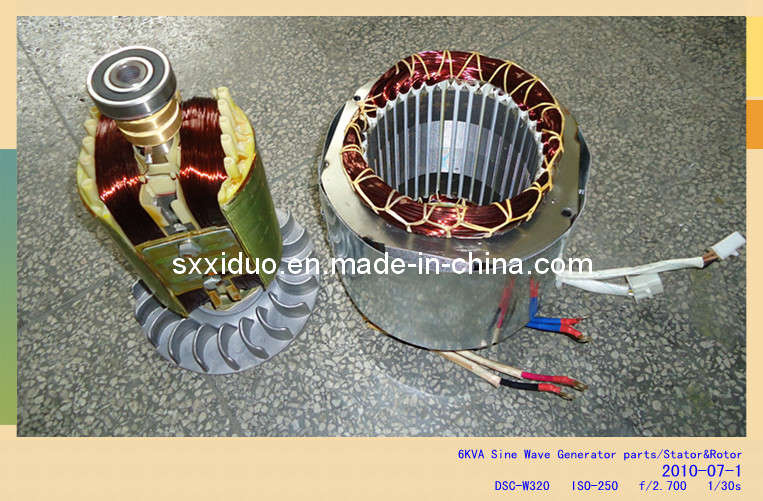

6.5kw Wave Stator and Rotor for Gasoline Generator

6.5kw Wave Stator and Rotor for Gasoline Generator
Price: US $ 100/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: L/C,T/T
Gasoline generator spare parts
1. Stator & Rotor can be designed by our customers
2. CCC, CE, RoHS, UL approvel
3. Good quality

Products Features
1, Portable emergency power supply when working with gasoline generator;

2, Monophase(TFD) or three phase(TFS) AC power output;

3, Brush excitation and brushless excitation model available;

4, AVR (automatic voltage regulator) makes the stable voltage output (TFD brush excitation);

5, The capacitance compensation makes easy maintenance and reliable operation (TFDWBrushless excitation).

6, CE/TUV certificate approved;

7, Rotor&stator can be develop according to client's request;

8, Parts list: Stator +Rotor(Include Ball Bearing & Radiator Fan) + Protect Plate + Electric Brush;

Packaging & Delivery
Packaging Detail: Foam material+carton+container
Delivery Detail 30 days after receipt of the deposit
Type Rated Frequency
(HZ)
Rated Power
(KW)
Max. Output Power
(KW)
Operation Method THDu% Phase External Dimension
Diameter D (mm) Length
L (mm)
Matching
Taper
190-6.5 50/60 6.5 7.5 S1 ≤5% 3 198 148 1:5
Insulation Class B (T≤85K)  &  F (T≤105K)
Power Factor (cosφ) cosφ=0.8
Rated Voltage (V) 110,115,120,220,230,240,110/220,120/240,230/400
DC  Output 12V / 8.3A
Excitation Brush-excitation
Note Honda engine matching taper  is 1:5.333 (3:16)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 6kw
Certification: CE, UL
Winding Material: Cooper Wire
Phase: Singe-Phase
Shaoxing Xiduo Electric Machine Co., Ltd is a high-tech enterprise integrating production with marketing.It is situated in Shanggao Industrial Park, Shengzhou, Zhejiang province.Our company supplys different kinds of products.High quality and favaroble price.We're pleased to get your Inquiry and we will come back to as soon as possible.
