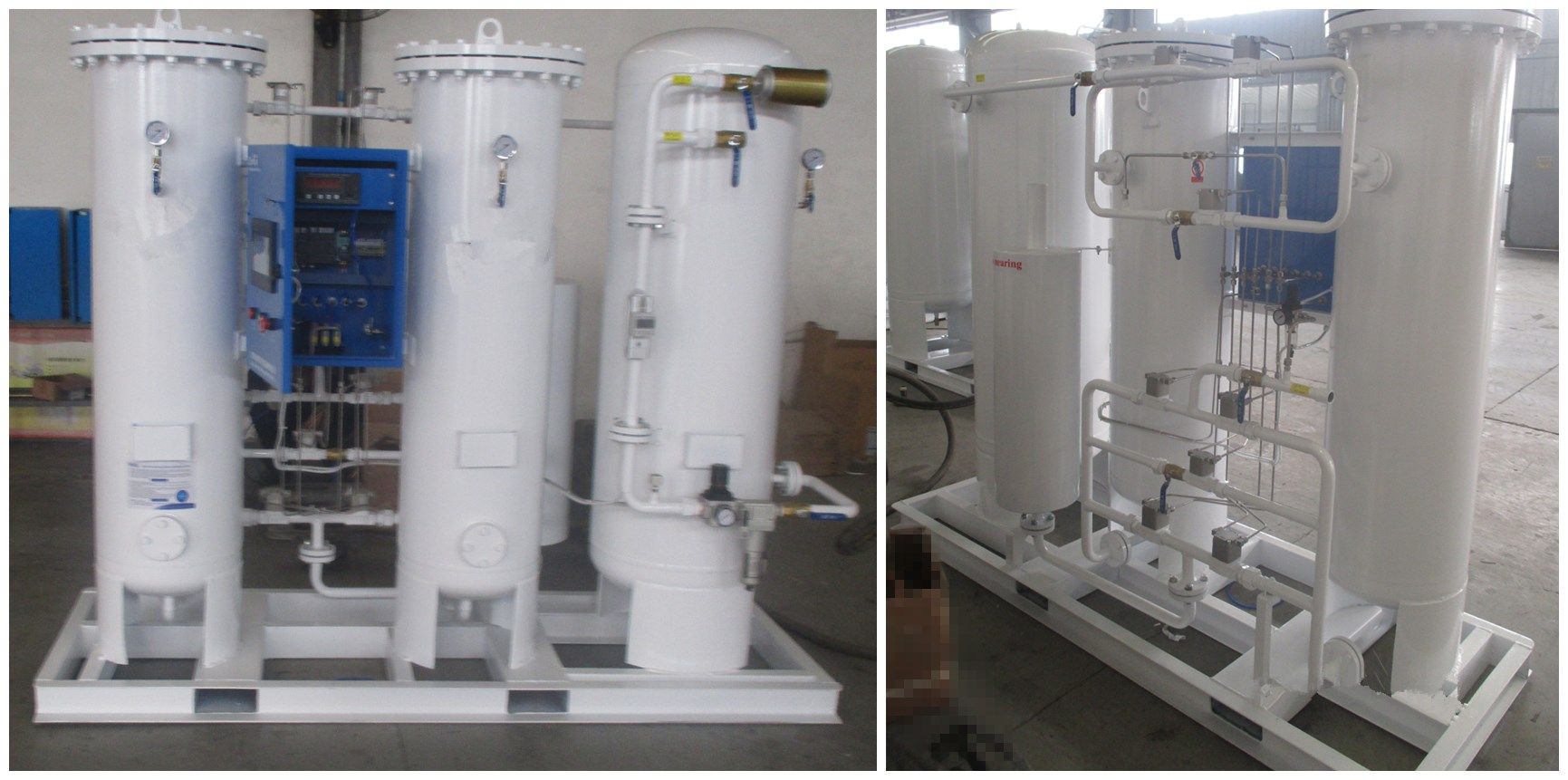

On Site Nitrogen Generator / PSA Nitrogen Gas Equipment For Food Packing
PSA Nitrogen generators have become the preferred source of producing on-site Nitrogen gas. Nitrogen plants based on Pressure Swing Adsorption (PSA) technology are very reliable and give many years of trouble free operation.
PUHUI ™ Nitrogen Generator Features
1. High Reliability: Proven PSA technology, simple engineering design, few moving parts and international standardized manufacturing techniques ensure minimal maintenance and maximum reliability.
2.Low Cost: Patented REFLUX high-efficiency control system reduces air consumption, saves electric power.
3.Convenience: Unattended operation controlled by PLC automatically. Optional touch-screen control, display and alarm system makes the generator to be operated by one touch. It displays working parameters, reminds filter elements replacing and instructs trouble shooting. It enables remote control.
4.Easy Installation: Skid mounted for easy installation and move.
5. Longer Service-life: Exclusive bed containment system extends Carbon Molecular Sieve (CMS) bed life to more than ten years.
6. Minimal Maintenance: The generator has highly-reliable valves and no other moving parts. Filter elements are easily replaced.
Details of Puhui Nitrogen Generator
Condition: New
Place of Origin: Tianjin China (Mainland)
Brand Name:PUHUI
Model: PFNC-5
Nitrogen ProductionRate: 5Nm3/h
Voltage: 220V Power(W): 0.1KW
Certification: SGS ,ISO9001
Warranty: 24months
After-sales Service Provided: Overseas service center available
Type: Skid-mounted
Dew point: -45ºC - -60ºC
purity: 95%-99.999%
capacity: 1-3000 Nm3/h
PSA Nitrogen Generator Work Principle
PSA nitrogen technology utilizes two towers which are filled with carbon molecular sieve (CMS). Compressed air enters the bottom of one tower. While the smaller oxygen molecules are adsorbed by the CMS, the larger nitrogen molecules pass through the sieve and are stored. Once the CMS of the working tower is saturated with oxygen, the regeneration of the CMS in the tower starts to work by depressurizing, and while another tower is switched to start the process over again.
Functional Specification:
1,The system adopts the one-click start way,Air compressor,Refrigerated Air Dryer,Adsportion dryer,Nitrogen Generator will start to work following the program one by one.
2,The Nitrogen generator equipped with unqualified nitrogen gas warning-galarm and automatic vent out ,then it can make sure that all nitrogen that goes into the pipeline is good quality.
3,The Nitrogen generator equipped with colorful touch screen from Siemens Germany ,it can
display the running condition , purity, pressure, and nitrogen rate of flow of whole system
on-line;And it can also remind the maintenance time,record the trouble alarm, download the
operating data.
Benefits From Puhui
* Most reliable technology
* More advanced and more economical air separation modules. extremely low power consumption
* Simple engineering design, Less components = lower maintenance cost
* Automated Operation.
* Turn-key solution and pre-commissioned.
* Skid mounted design, easy installation.
* Durable Molecular Sieve and Steel Structures ensures longer life
Applications
Food and beverage industries
Aircraft & motor vehicle tires
Chemical and petrochemical industries
Electronics industry
Metallurgy / heat treatment
Pharmaceutical industry
Glass and lighting industry
Oil & Gas
