5MW Biomass Gasifier Power Plant
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
We can design the production line according to your requirements. The following data is just for your refernence.1. Brief introduction Comprehensively consider the characteristic of biomass gasification process and biomass to design 15MW biomass gasification power plants,we will adopt 3 sets of 5MW biomass gasification power plants in parallel. Biomass is constantly sent by feeding system to gasifier and react with a certain amount of air to produce fuel gas. After the hot gas is cleaned and cooled down by cleaning system, it is piped to internal combustion gen-set to output demanded power. To reasonable design the height and diameter of gasifier make sure good gasification condition and long residence time of biomass in gasifier in order to get high efficiency. The main technical process is shown by F1.

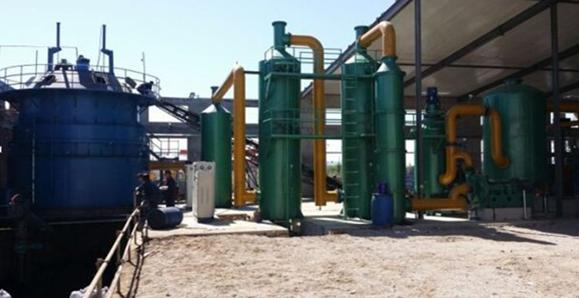

2. Main Technical Process 2.1 Preparation of BiomassThe humidity of biomass should be treated to 15% size should be lower than 4cm. After that, satisfied biomass is sent into biomass storage room. And at least, it is necessary to store adequate biomass which is enough to support plant to run fro one week. 2.2 Biomass Gasification ProcessBiomass is fed continuously into gasifier by feeder located on the bottom of gasifier. Under the effect of hot bed material, biomass contact with air from the bottom of gasifier. At the same time, pyrolysis and gasification reaction happen so that biomass is converted into fuel gas. The main composition of fuel gas is CO, H2, CH4, etc. And some tar and dust are included in fuel gas. The heat value of fuel gas is 1000~1200kcal/Nm3. 2.3 Gas Purification ProcessIn the role of the airflow inside furnace, the biomass ash is carried out of the furnace, separated by the two-stage cyclone, the ash trapped is discharged by the ash discharge device. 2.4 Gas Cooling and CleaningUse water as media of purification process. Based on different temperature and ash content in different stage, choose to use different wet purification device with different capability in order to well remove tar and dust till gas quality meet the demand of IC Gen-set. 2.5 Power Generation ProcessCooled and cleaned gas is piped to cyclinder and mix with air to combust to produce electricity.

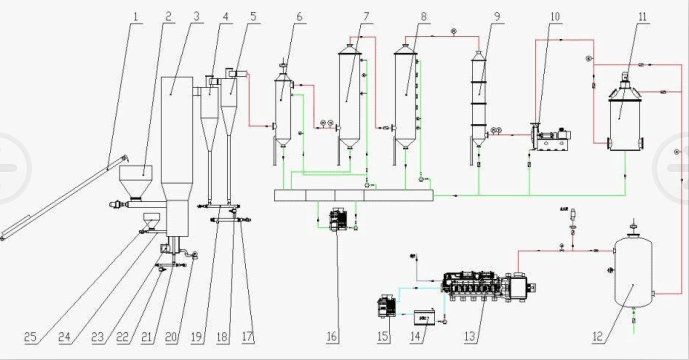

F1. Schematic diagram of fluidized bed gasification system for one set| No. | Process | No. | Process |
| 1 | Belt Conveyor | 2 | Biomass Silo |
| 3 | Gasifier | 4 | First step cyclone |
| 5 | Second step cyclone | 6 | First step spray tower |
| 7 | Second step spray tower | 8 | Turbulence tower |
| 9 | Purifying tower | 10 | Gas booster fan |
| 11 | Dry filter | 12 | Surge tank |
| 13 | Internal combustion engine and generator | 14 | Water pool |
| 15 | Cooling tower | 16 | Cooling tower |
| 17 | Humidifying screw conveyor | 18 | Star discharger |
| 19 | Charcoal discharging screw | 20 | Air blower |
| 21 | Bottom charcoal release screw | 22 | Star discharger |
| 23 | Balancing chamber | 24 | Sand feeding screw |
| 25 | Sand Silo |
|
|
3.Technical Features 3.1 High Gasification Efficiency3.2 Fluid Ignition3.3 Stable Running3.4 High Automatic Level4.Work Condition of fluidized bed gasification system 4.1 Altitude: <2000m surrounding4.2 Temperature: -20ºC—40ºC4.3 System is not suitable for atmosphere with conductive dust and corrosive chemicals gas4.4 Requirement of raw materialHumidity :<15%; Size:<3cm; LHV:3200Kcak/kg; No Mouldiness; No Metal; Ash Content: <5%.5.Equipments list for one set, one set is 5MW | No. | Name | Specifications | Unit | QTY |
|
| A | Gasification system |
|
| 1 | Gasifier | JTD-L-15000 | Unit | 1 |
|
| 2 | Cyclone | JTD-XV-15000 | Unit | 2 |
|
| 3 | Refractory Materials |
|
| 4 | Wearable Castable |
|
| 5 | Insulation material |
|
| 6 | Air Distributor | Unit | 1 |
|
| 7 | Balancing chamber | Unit | 1 |
|
| 9 | Air Blower | Unit | 1 |
|
| 10 | Frequency converter of Air Blower | Unit | 1 |
|
| 11 | Booster Fan | Unit | 1 |
|
| 12 | Ignition device | Unit | 1 |
|
| 13 | Bottom Charcoal Discharge screw | Unit | 1 |
|
| 14 | star discharger | Unit | 2 |
|
| 15 | Charcoal discharge screw | Unit | 1 |
|
| 16 | Humidifying screw | Unit | 1 |
|
|
|
|
| B | Feeding System |
|
| 1 | Conveyor | Unit | 1 |
|
| 2 | Biomass Silo | Unit | 1 |
|
| 3 | Feeding biomass screw conveyor | Unit | 1 |
|
| 4 | Frequency Converter of screw | Matched | Unit | 1 |
|
| 5 | Sand silo | Unit | 1 |
|
| 6 | Feeding sand screw | Unit | 1 |
|
|
|
|
| C | Cleaning System |
|
| 1 | Spray Tower | Unit | 2 |
|
| 2 | Turbulence Tower | Unit | 1 |
|
| 3 | Purifier | Unit | 1 |
|
| 4 | Dry Filter | Unit | 1 |
|
| 5 | Liquid Separator | Unit | 1 |
|
| 6 | Pressure limiting Tank | Unit | 1 |
|
| 7 | Surge Tank | Unit | 1 |
|
| 8 | Circulation Pump | Unit | 3 |
|
|
|
|
| D | Power Generation System |
|
| 1 | Engine | 8300D/M-1 | Unit | 10 |
|
| 2 | Generator | 500GFM | Unit | 10 |
|
| 3 | Circulation water Pump | Unit | 5 |
|
| 4 | Cooling Tower | Unit | 1 |
|
| 5 | Air Compressor | Unit | 1 |
|
| 6 | Air Storage | Unit | 1 |
| 7 | Distribution Box | Unit | 1 |
|
|
| E | Instruments and Controlling System |
| 1 | Valves | Unit | 1 |
| 2 | Pressure Meter | Unit | 1 |
| 3 | Temperature Meter | Unit | 1 |
| 4 | Pressure Transmitter | Unit | 1 |
| 5 | Thermalcouple | K | Unit | 1 |
| 6 | Level Indicator | Unit | 1 |
| 7 | Monitoring equipment | Unit | 1 |
| 8 | Controlling system | Unit | 1 |
|
|
| F | Others |
| 1 | Installation necessories and accessories |
| 2 | Wires, cables, bridge |
|
|
| For more information, please contact us at any time. |
| Prod Model: |
whole machine line |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Altitude: |
<2000m Surrounding |
| Rated Gas Production: |
15000nm3/H |
| Rated Power: |
500kw |
| Gas Source: |
Biogas |
| Certification: |
SGS |
| Power: |
＞200kW |
