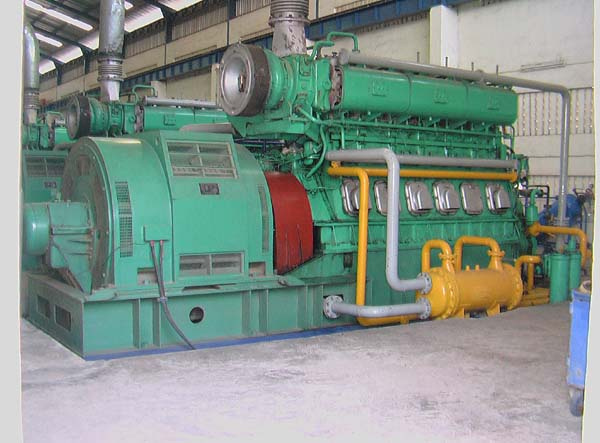

5MW(2x2.5MW) HFO Power Plant(HFO/diesel Genset), which is composed by 2units of 2.5MW Gensets and provided by AVESPEED NEW ENERGRY GROUP Co., LIMITED
A. Standard generating set of 5MW(2X2.5MW) HFO power plant(HFO Gensets)
1Diesel engine, coupling and common base with std accessories
Including:
Lube oil cooler
Lube oil filter
Fuel strainer
Manual pre-lubricating pump
Injector cooler
Control valve for turning
Adjusting pressure valve
High pressure air filter
Spare parts kit for turbocharger
Foundation bolt
Model CZ20/30 air compressor
Air bottle
2 Alternator
3 Switchgear
Including:
1) VCB
2) Protection, CT and PT
3) Meters, indicators
4 Control and operation panel
Including:
1) Programmable Logic Controller (PLC)
2) Automatic Voltage Regulator
3) Meters, indicators, hour counters
4) Push buttons, selector switches
5) Auto synchronization and load-share device
5 Local control desk
1) Pressure gauges, switches
2) Temperature indicators or scanner
3) Scanner for Engine exhaust temperatures
4) Push buttons, indicating lamps, selector switches
5) Flasher
B. Generating accessories
1 Generating accessories
Including:
Lube oil tank
Silencer
Exhaust pipe and elbow
Exhaust expansion joint
Cooling tower
Thermostatic valves
C. Electricals
1 PT for 15kV busbar (KYN28A-24)
2 Main outgoing panel for power transformer
3 Station transformer incoming and PT panel
4 220V/24VDC panel
5 400 Volt main panel
6 400 Volt supply panel to DG set auxilliaries
7 S9-160kVA/13.8/0.48kV station transformer
8 Synchronous cabinet
9 Cooling tower and air compressor control box
A. 2.5MW Gen-set technical specification |
No. |
Item |
Unit |
Specification |
1 |
Model |
|
GF2500 |
2 |
Rated power |
kW |
2500 |
3 |
Rated rev. |
rpm |
600 |
4 |
Rated voltage |
V |
AC13800 |
5 |
Rated current |
A |
130.7 |
6 |
Frequency |
Hz |
60Hz |
7 |
Power factor |
|
0.8 (lagging) |
8 |
Phase |
|
3-phase |
9 |
Voltage fluctuation rate |
% |
±1 |
10 |
Frequency (rev.) fluctuation rate |
% |
±0.5 |
11 |
Stable voltage regulating rate |
% |
±2.5 |
12 |
Stable frequency (rev.) regulating rate |
% |
5 |
13 |
Transientvoltageregulating rate |
% |
±20--15 |
14 |
Stabilizing time |
s |
5 |
15 |
Voltage regulating method |
|
Auto |
16 |
Speed Governor |
|
Electronic hydraulic |
17 |
Frequency regulating method |
|
Manual/Auto |
18 |
Lubricating method |
|
Pressure lubricating |
19 |
Cooling method |
|
Closecircuit of cooling water |
20 |
Coupling |
|
Flexiable |
21 |
Painting color |
|
Munsel 7.5GB |
22 |
Overall dimension |
mm |
8552x2200x3348 |
23 |
Net weight |
kg |
48000 |
B. Diesel engine specification |
No. |
Item |
Unit |
Specification |
1 |
Engine Model |
|
AV8320ZD8 |
2 |
Type |
|
In-line, 8-Cyls, four-stroke, direct injection, charged, inter cooled |
3 |
Bore |
mm |
320 |
4 |
Stroke |
mm |
380 |
5 |
Total displacemen |
L |
244.5 |
6 |
Mean piston seed |
m/s |
7.6 |
7 |
Rated power |
KW |
2648 |
8 |
Rated rev. |
rpm |
600 |
9 |
Overload (1 hr per 12 hrs) |
kW/rpm |
2912.8/600 |
10 |
Mean effective pressure |
Mpa |
2.17 |
11 |
Compression ratio |
|
13 |
12 |
Rotation direction |
|
Clockwise, viewed from flywheel end. |
13 |
Firing order |
|
1-5-7-3-8-4-2-6 |
14 |
Specific fuel oil consumption |
g/kW.h |
205 |
15 |
Specific Lube oil consumption |
g/kW.h |
1.0g/kW.h |
16 |
Smoke |
RB |
≤0.3 |
17 |
Noise |
dB(A) |
105 |
18 |
Starting method |
|
Compressed air |
19 |
Cooling system |
|
Open circuit of water cooling |
20 |
Lubricating system |
|
Pressure lubricating |
21 |
Fuel oil specification |
|
diesel or 180Cst/50ºC |
22 |
Lube oil specification |
|
CD40 |
23 |
Piston lifting height |
mm |
2600 |
24 |
Overall dimension |
mm |
6180x1835x2917 |
25 |
Net weight |
kg |
29000 |
C. Alternator specification |
No. |
Item |
Unit |
Specification |
1 |
Alternator Model |
|
TFW2500-12 |
2 |
Type |
|
Brushless marine generator |
3 |
Rated power |
kW |
600 |
4 |
Rated voltage |
V |
13800 |
5 |
Rated current |
A |
130.7 |
6 |
Frequency |
Hz |
60 |
7 |
Power factor |
|
0.8 (lagging) |
8 |
Working condition |
|
Continuous |
9 |
Phase and connection |
|
3-phase |
10 |
Voltage regulation method |
|
Brushless, self excited |
11 |
Insulation Class |
|
F |
12 |
Protection Class |
|
IP23 |
