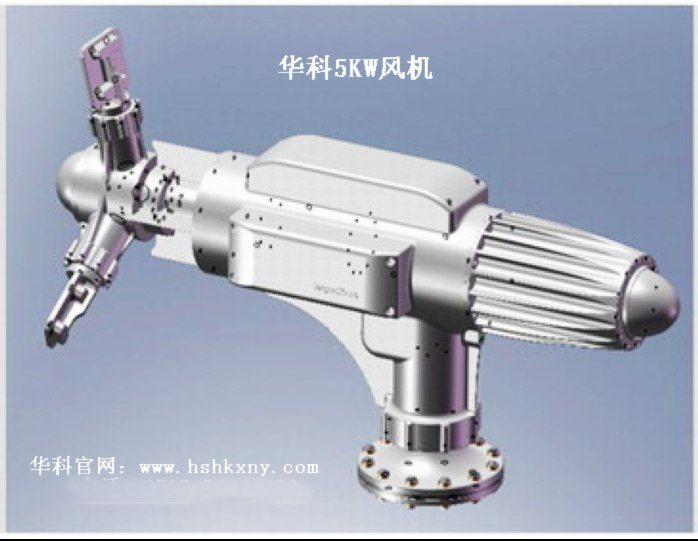

5kw Wind Turbine
Using WPP Technology
Rotor Diameter: 5.5m
Blade Material: Reinforced Fiber glass*3
Rated Power/Max Power: 5/5.6kw
Rated Rotating Speed: 245rpm
Rated Wind Speed: 10m/s
Start-up Wind Speed: 2.5m/s
Working Wind Speed: 3~25m/s
Survived Wind Speed: 55m/s
Working Voltage/System Output Voltage: DC240V/AC220V
Speed Regulation Method: Variable Pitch Controlled
Stop Method: Positive Pitch
Wind Turbine Main Body Weight: 270kg
Noise Level: ≤ 65dB
Tower Height: 8m.
Main Functions:
@Low wind speed start-up performance
@overrunning limiting and stabilizing
@Hurricane shutdown automatically
@"Fuse" security protection
@Power output _green light
@Fault _red light blinking.
Huangshi Huake New Energy Science & Technology Co., Ltd. is a high and new technology enterprise which specialized in development, production, sales of new energy products of 400W to 50kw Wind Turbine system, LED Light and Solar Panels.
Huake is the first company(the pioneer) in China to adopt the Wind Pressure Push Variable Pitch Technology in the development and production 1KW, 2KW, 5KW wind turbines. This technology is used to ensure the wind turbine with the function of starting work at low wind speed, limiting speed and keeping steady speed timely and effective at high wind speed, reliable shutdown automatically on the terrible condition of Hurricane, anti-fatigue under long-running, anti-wind, anti-corrosion, good operation unattended for a long time.
Huake as a leader pioneer who owns the internationally leading edge technology in the field of energy industrial will make outstanding contributions to serve the society and human for more healthy and peaceful world.
