Generator horizontal permanent magnet direct drive

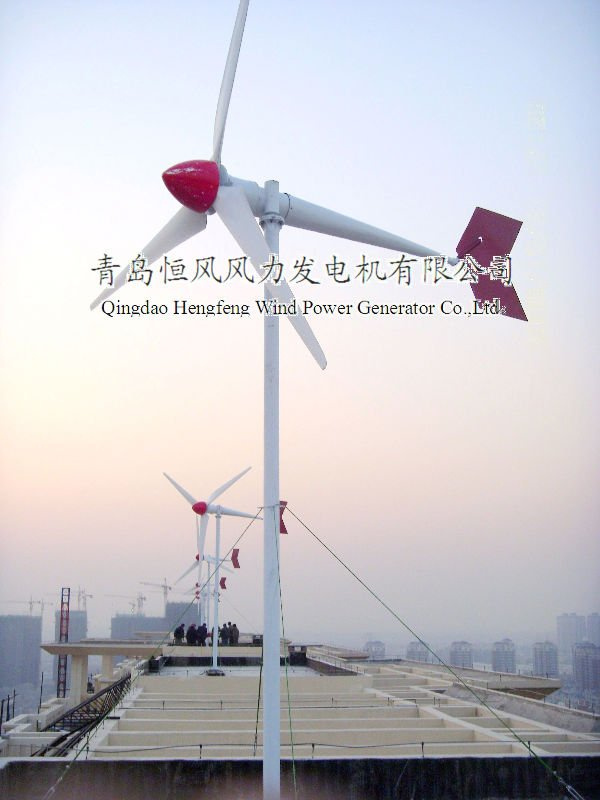

Tower guy wire tower
Life-span 20-25 Years
Output voltage of inverter according to customers' request
Controller high-performance controller
Inverter pur sine wave
Blades FRP lay-up by hand (3PCS)
Security wind speed 50 m/s
Start up wind speed 3 m/s
Work speed 3-25m/s
Type of generator:
Permanent magnet direct drive 3 phase AC
Blades diameter: 6.0(M)
Rated rotor speed: 200(r/m)
Rated speed: 8(m/s)
Rated power: 5000W
Max power: 7000W
Output voltage: 220V
Start up wind speed: 3(m/s)
Work speed: 3-30(m/s)
Security wind speed: 50(m/s)
Generator shell material: Pressure cast iron
Blade technical data:
Material of blades: FRP Lay-up by hand
Number of blades: 3PCS
Diameter of blades: 6.0M
Tower technical data:
Height of pole: 9 m
Thickness: 6 mm
Tower diameter: 133(mm)
Flange: 200*200*10 (mm)
Material: Q235 Steel pipe
Surface treatment: Painting against decaying
|
Generator |
horizontal permanent magnet direct drive |
|
Tower |
guy wire tower |
|
Life-span |
20-25 Years |
|
Output voltage of inverter |
according to customers' request |
|
Controller |
high-performance controller |
|
Inverter |
pur sine wave |
|
Blades |
FRP lay-up by hand (3pcs) |
|
Security wind speed |
50 m/s |
|
Start up wind speed |
3 m/s |
|
Work speed |
3-25m/s |
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
