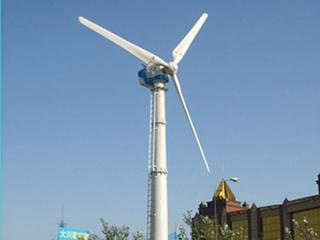

5kw wind power system / 5000w wind turbine system 5KVA wind generator system for home and farm
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar power system product, wind power system product, solar &wind hybrid system(on grid and off grid systems).
For solar system mostly use for household power supply, have main charger when non-sunshine. very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France, USA, Canada, Pakistan, UAE, Bangladesh .,ect) popular product and new energy leads low carbon life.
wind on grid system :wind turbine +wind on grid controller +grid tie inverter
wind off grid system: wind turbine +wind controller+ battery +pure sine wave inverter
System Application:
1,Living house and home building;
2.Office building ,factory and warehouse
3.Shopping mall, venue, stadium and so on
4.Power station, field operation and some huge engineer construction
Wind turbine Feature:
1.Rare earth permanent-magnet generator
2.small vibration and tiny friction, stable rotation in higher speed
3.streamlined wind turbine body and blade outline design
4.Blades have 2 kinds ,300w-1kw have 3 pcs or 5 pcs choose ,up to 2kw have lighted blades choose.
5.Noice level below 55dBaround the wind turbine tower
6.state of the art, workmanship and beautiful appearance
7.Use magnetic saturation technology, with 20years designed life;
8.Select high quality bearing, free to maintenance;
9.Anti-twist device, generator can whirl in each direction
10.Anti strong wind, the blade protect itself automatically,
11.Supply matched controller/inverter, make the system more stable.
Off grid wind power supply systems-FD5000 |
System Basic Information | Wind generator power:5000W, Annual average energy: 12500kWh Supply power for air-condition, refrigerator, water pump, washer | QTY |
Wind generator
| Model | FD-5000 | Rated power | 5000W | Starting wind speed | 4m/s | Cut-in wind speed | 4m/s | Rated wind speed | 10m/s | Security wind speed | 60m/s | Rated DC voltage | 96V | Rated speed | 160 r/m | Rotor diameter | 5150mm | Protection | Electromagnetic torque control and electricity brake | Type | 3phases permanent magnetism synchronization generator | Blade material | Extra-strong fiber glass | Packing material | Plywood box and foam material | Packing dimension | 910*520*630mm | N.W&G.W(kg) | 378/402kg |
| QTY 1pc |
Wind controller | Ws5kw/96v wind charger controller Wind Turbine Maximum Input: 100A Unload Voltage(factory default): 112V Unload Current(factory default): 50A | QTY 1pc |
Gel Battery | Capacity:12V/150AH full sealed Solar power Gel battery, Service life:6-8 years , Size:483*170*239mm | QTY 16pcs
|
Off-Grid inverter | TF5KW/96V pure sine wave inverter 110/120/220/230V output; with grid charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc. | QTY 1pc $475 |
Guy cable tower | 9m tower; It help fasten wind generator in safe altitude. Use steel material with rust prevention. Easy to install | QTY 1set |
Cable | 10mm2 cable 100M International standard, with specification suitable for wind system, Include terminals and the cable connect the battery | QTY 100m |

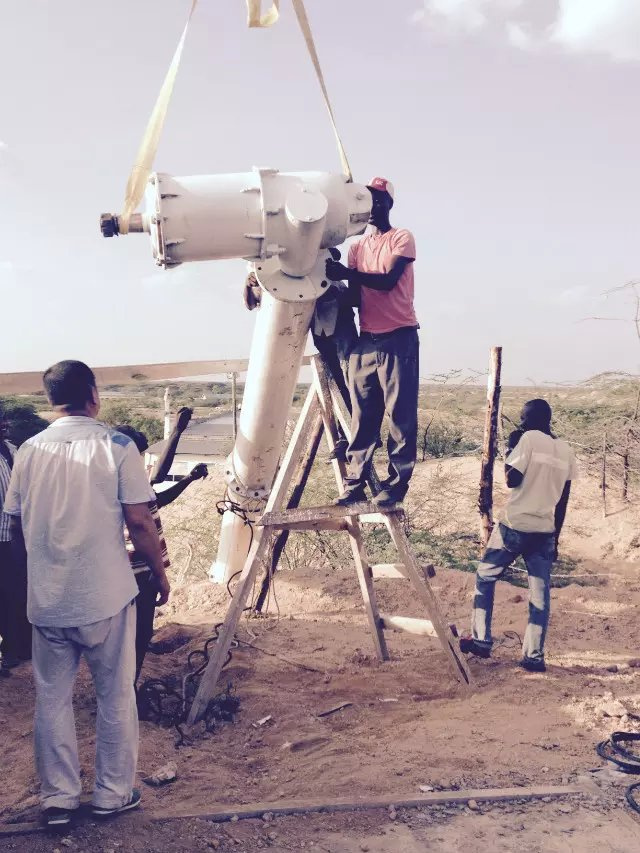

project in Kenya:
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
