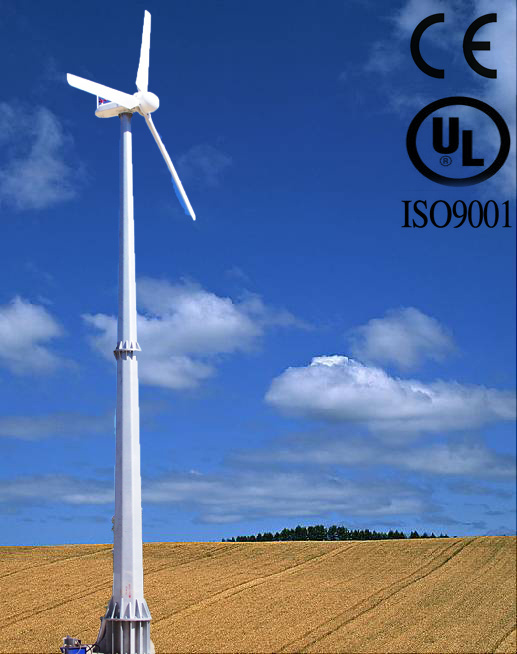

5kw Wind Generator Wind Turbine System

5kw Wind Generator Wind Turbine System
Price: US $ 5385/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Electricity power supply 5KW wind generator wind turbine system

1. Features
SCF Supercritical generator
Hummer's 5KW wind turbine generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.

SKF bearings
Hummer 5kW wind turbine generator adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.

PLC integrated with Siemens module
Hummer 5kW wind turbine generator's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.

Low noise
The design of the rotor blade of Hummer 5kW wind turbine generator absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.

Triple braking protection
Hummer 5KW wind turbine generator adopts triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.

2. Application of 5kW wind turbine generator:
Housing, office, farm and factory;
Telecommunications Station;
TV Transfer Station;
Monitoring Station (military, hydrology, observatory)
Water-pumping Station;


Rated power (W)


5000


Maximum output power (W)


7500


Battery bank voltage (Vdc)


240


System output voltage (Vac)


110/220/380


Start-up wind speed (m/s)


2.5


Rated wind speed (m/s)


10


Working wind speed (m/s)


3-25


Survival wind speed (m/s)


50


Generator efficiency


>0.8


Wind energy utilizing ratio (Cp)


0.4


Generator type


Permanent Magnet Alternator


Generator weight (kg)


147


Blade material/quantity


GRP/3


Blade diameter (m)


6.4


Speed regulation method


Yawing+Electromagnetism braking

(Optional hydraulic braking)


Shutting down method


Manual+Automatic


Battery 12V150AH/200AH


20pcs


Warranty


2years


Certification


CE/UL/ISO/BV


Prod Model: H6.4-5KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power (W): 5000
Maximum Output Power (W): 7500
Battery Bank Voltage (VDC): 240
Start-up Wind Speed (M/S): 2.5
Rated Wind Speed (M/S): 10
Working Wind Speed (M/S): 3-25
Survival Wind Speed (M/S): 50
Certificate: CE, BV, ISO
Output Voltage: 110V to 240VAC Single Phase
Tower: Guyed Tower, Freestanding Tower
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Phase: Three Phase
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
