5kw Wind Generator (Permanent Magnet Alternator) With CE Certificate (HF6.0-5KW)

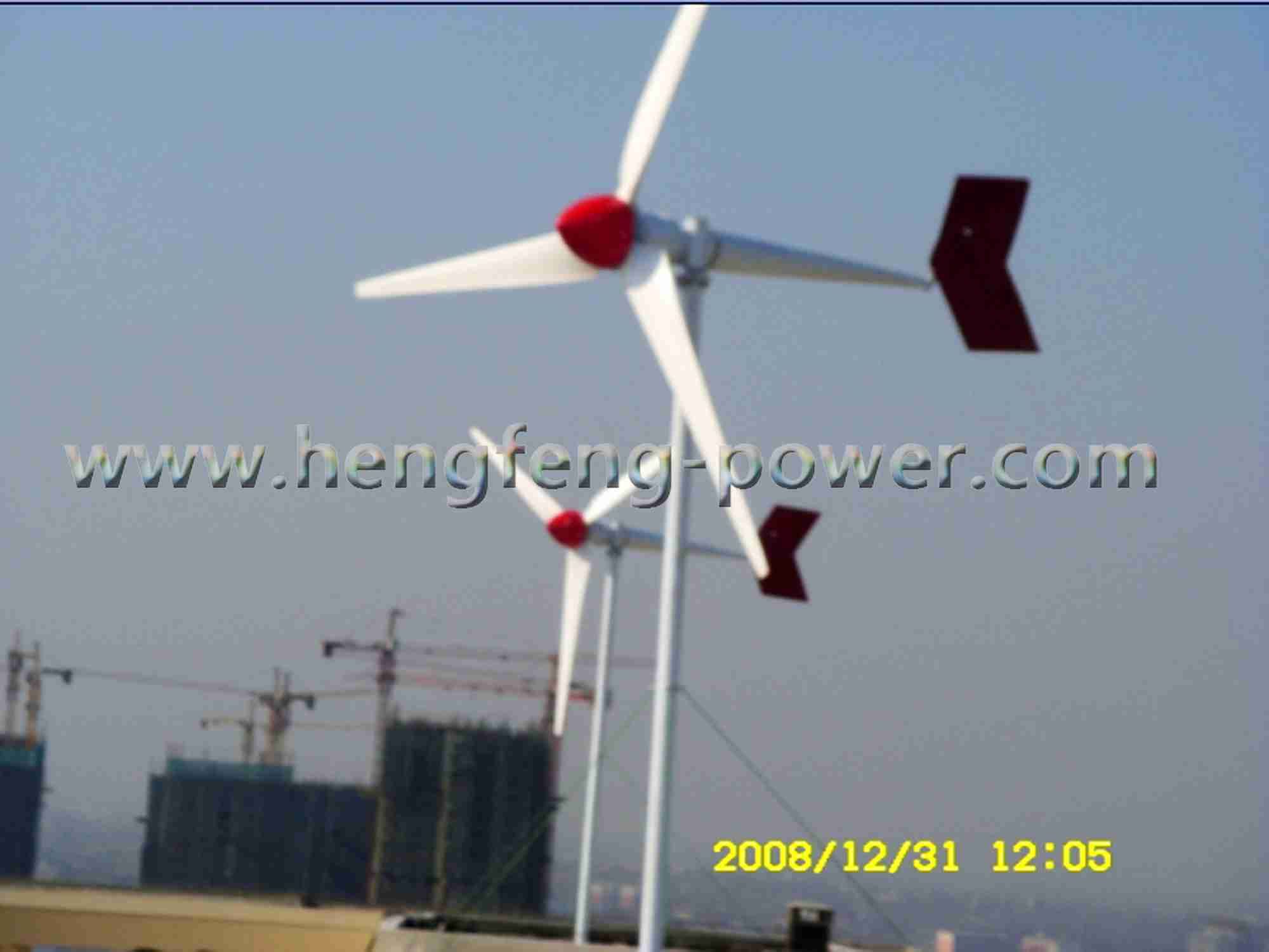

5KW wind turbine

5kw wind turbine, developed by Qingdao Hengfeng, has been experienced by our many projects in domestic market. It has a stable output power and safe running and is maintenance free. The automatic brake would protect the whole system when the battery is full and over voltage. That will be safe if you switch the manual brake button when there is a strong gale.

Power: 5KW
Blades diameter: 9m
Rated rotor speed: 200r/m
Rated speed: 8m/s
Rated Power: 5KW
Max Power: 7KW
Output voltage: 220V
Start up wind speed: 3(m/s)
Work speed: 3-25(m/s)
Security wind speed: 50(m/s)
Height of tower: 9m
Top weight except tower: 285kg
Tower type: 133 steel tube
Output controller system: Controller, Inverter

Can supply power for
Small Village, air-condition, refrigerator, washing machine, water pump, electric pan, color TV, lighter, fanner,

Charger: Suggested batteries and it's capacity 18PCS 12V200AH

HF-Series wind turbine advantages

1. Features of our generator:

We use the high greade NdFeB permanent magnet for generator. Every pieces magnet will be test the magnetic flux by the authority institution. The low starting torqure is designed by our mechanical engineer but also assure the high generating effciency by improving the inner structure. With scientific design and practised experience, the machine has stable and high efficiently.

2. Characters of Controller

Our wind&solar hybrid controller has the battery over voltage protection, battery under voltage protection, battery reverse-connect protection, solar panel reverse-charge protection, solar panel reverse-connect protection. If the system meet problem, and the wind turbine is running, the manual brake button will prevent the wind turbine race rotation The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging batteries. When the charge current is high in strong wind, controller can load the wind turbine automatically and charging the battery with low current, however, the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%. The big power controller which are from 15KW to 100KW matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive to show more directly.

3. Blades of the wind turbine

Streamline shape 3 pieces fiber reinforce plastic blades. Also it is unidirectional fibre fabric that use epoxy resin mold made by hand.

4. Pure sine wave Inverter

It is the pure sine wave output can drive any household appliances and use integrated circuit, less wire connection.

We adopt the micro-processor technology, improving system integration. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection with high efficiency transformer instead of high frequency e-circuit design. Inverter displayed by LCD peration status. High efficient transformer isolation and buzzer alarm while over-loading, over-voltage, high-temperature.

5. The tower

We can supply free stand tower and guy wire tower, and the height can be changed according to your requirement. We also can produce the tower with climb ladder, that is convenience for installation.
