Home Generator Products 5kw Wind Driven Generator /Home Wind Turbine

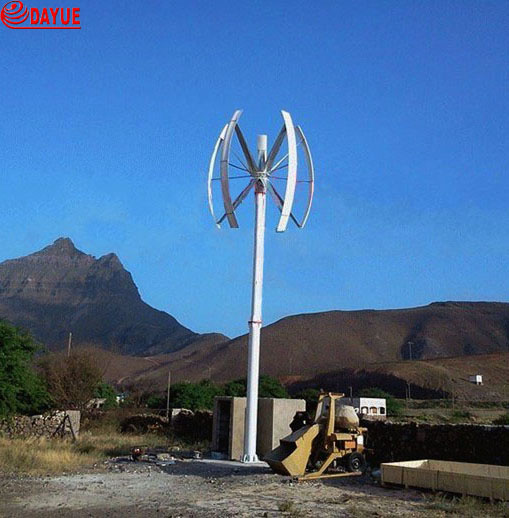

5kw Wind Driven Generator /Home Wind Turbine

5kw Wind Driven Generator /Home Wind Turbine
Price: US $ 6750-10270/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
This vertical  turbine is adopted maglev axis and can be used for on-grid and off-grid,  we also supply complete system including the grid tie controller, grid tie inverter ,free standing tower or hydraulic tower optional .



2. Wind Turbine Models Optional For Your House

- 1KW, 2KW, 3KW  Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.  pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal  home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.


PS: if you want to know  clearly  and completely   the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the  "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.





2. Wind Turbine Models Optional For Your House

- 1KW, 2KW, 3KW  Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.  pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal  home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.



    1.JD and FDV Series Wind Turbine Features :

-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop.

-JD-1KW-5KW HAWT (variable pitch blades) wind turbine can run from 3m/s -25m/s wind speed ,
it can be braked by disc-brake mechnism for automatic or manual way , it is a high quality ,high safety and high power generation efficiency wind system


- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal  home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.

Numbers of Blade
5 pcs
Material of BladeFRP Complex Resin
Diameter of Wind Rotor6m
Start (out-in) wind speed2.5m/s
Wind Rotor height3.9m
Security wind speed50m/s
Wind energy ratio45%
Generator rated power5KW
Max output power7.5KW
Generator TypeThree phase Permanent magnet generator
Output power from Generator0-415V
Charging voltage240Vdc
Output voltage of InverterSingle phase 220-240Vac/50HZ  or 110-130Vac /60HZ
Stop methodBy manual or Automatic Brake
Tower typeGalvanized Free Standing Tower, hydraulic tower for optional
Tower heightStandard height is 12m, and therere 15m, 18m, 20m for optional
Charging controlIntelligent control full-automatically (with overcharge protection)
Inverter power supplyPure sine wave
Battery Matching (off-grid system)20Pcs 12V-150AH Lead-acid or colloid batteries
Grid tied inverter matching10KW Grid tied inverter( or 1 X Windy boy 6000A)
Time of charging (off-grid type)About  12 hours


Packing
Details
Parts' NameDimensionGross Weight
Blades and connection pole4100× 1400× 950 mm292kgs
Tower and accessory8100× 430× 400mm1380kgs
Wind Turbine & accessory2100× 255× 103 mm230kgs
Controller385× 517× 272 mm80kgs

PS: if you want to know  clearly  and in depth  the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the  "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.
Prod Model: 5kw
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 5kw
Max Power: 7.5kw
Axis Type: Vertical Axis Wind Turbine
Blades Number: 5PCS
Blade Material: FRP Complex Resin
Diameter Of Wind Rotor: 6meters
Wind Rotor Height: 3.9meters
Generator Type: Three Phase Permanent Magnet Generator
Brake Method: Automatic Brake or by Manual
Tower Type: Galvanized Free Standing Tower, Hydraulic Tower Fo
Rotating Shaft: Vertical
Stress Way Of Blade: Lift Force
Number Of Blade: Multiple-Blade
Phase: 3 Phase
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.

The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:

- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)

-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)

-FDV series Vertical Axis Wind Turbine (300W-5KW)

-Wind & Solar Hybrid Street Light System (500W and 800W)

-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)

These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries

In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;

There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.

If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
