Home Generator Products 5kw Small Portable Automatic Diesel Power Generator (DG6500SE with ATS)

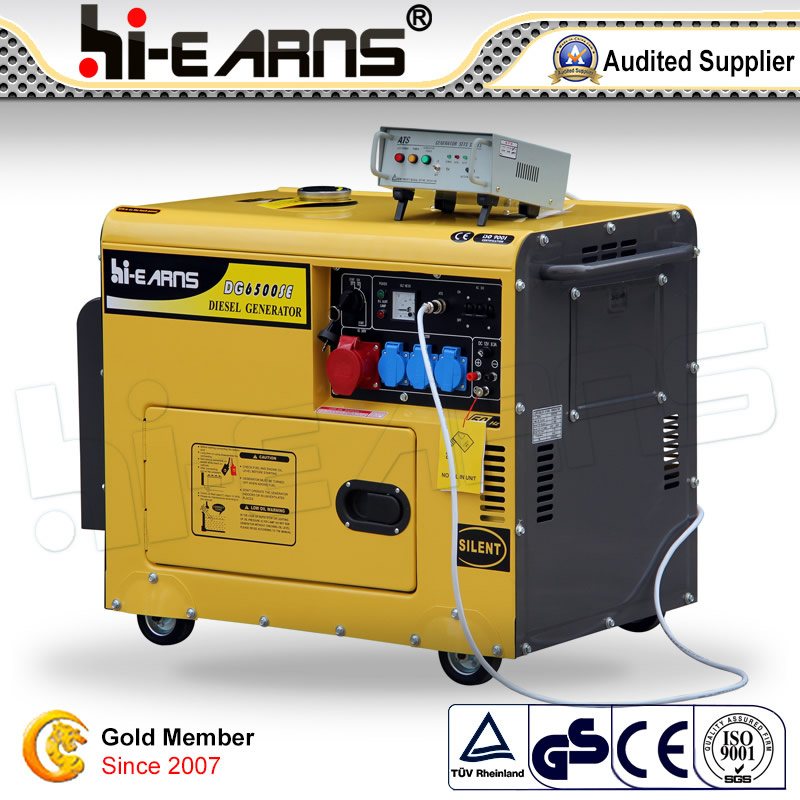

5kw Small Portable Automatic Diesel Power Generator (DG6500SE with ATS)

5kw Small Portable Automatic Diesel Power Generator (DG6500SE with ATS)
Price: US $ 535-545/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union


Our Advantages:

1. Reliable Performance:

Reliable Performance is the major advantage of Hi-earns products, and this reliability is based on the

Outstanding design in every aspect and strict Q. C. System.

2. Customer First:

We devote ourselves to develop products to meet customers' requirements. Our engineer develop and

Design new products for customers.

3. Technical Support and Service: Our engineer team will solve your technical problems within 48 hours.

4. Strict test process before ex-factory:

Every product will be tested twice before ex-factory, and our products are 100% ex factory pass rate.

5. Certification: CE, ISO, , TUV, GS, SONCAP etc.

Warranty policy:

Guarantee for one year or 1000 hours whichever reach first from ex-factory date.

During the guarantee period, Hi-earns Power will provide the free easy-damageable spare parts of diesel

Engine caused by our quality of production or raw material. After expiration, Hiearns Power provides cost

Spare parts maintenance of gensets.

Our service:

1. Our quality department will provide the best solution that make you satisfied efficiently and accurately.

2. If the broken spare parts are in the period under warranty, we will offer this spare parts for free uncder

The condition of this spare parts are not intentionally damaged.
Model DG6500SE
GENERATOR              Frequency (HZ)                           60HZ
Max.output (KW)                         5.5KW
Rated output(KW)                          5KW
Rated AC Voltage(V)                          220V
Power Factor                                       1
DC output (V)                            12V/8.3A
Phase  Single Phase
Alternator Type            Self-excited,2-pole, Single alternator
Starting System                          electric
Noise Level (Dba/7m)                68-72 Db
Fuel Tank Capacity (L)  16
Continuous Running Time (hr) 8.5/7.8
ENGINE              Engine Model HR186FA
Engine Type  single-cylinder, vertical,4-stroke air-cooled diesel engine
Bore×Stroke  86×72
Fuel Consumption rate ≤ 280
Fuel                                     0# or -10#  light diesel oil
Lubrication Oil Volume (L) 1.65
Combustion System Direct Injection
STANDARD FEATURES       Voltmeter YES
AC Output Socket 2
AC Circuit Breaker YES
Oil warning Light YES
Oil Alert                              YES
DIMENSIONS Dimention(LxWxH)(cm) 95*56*76
Net Weight(kgs)                                       155
20FT loading pcs  72
Prod Model: DG6500SE with ATS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diesel Engine: Hr186fa
Alternator: 100% Copper
Panel: ATS Panel
Noise: 68-72db
Power: 5.0kw
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Air Cooled
Installation Method: Fixed
Output Type: AC Single Phase
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.

Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.

"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
