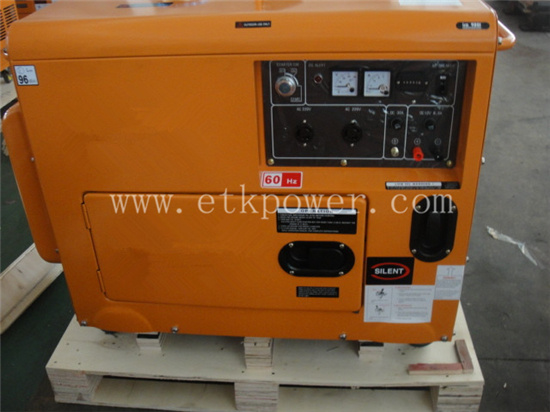

5kw Silent Diesel Generator with Emergency Response
| Price: |
US $ 200-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
DIESEL GENERATOR SET
Introduction
Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificates. Have steady quality and competitive price.
This air-cooled diesel generators are widely used when electrical power is scarce, Our welders provide a portable mobile solution in supplying power for field operations during project construction.
We are thinking of "Quality first, Customer top", it has been pushing us all the time to cooperate with all our old and new customers.
Advantages
1. Diesel generator set with CE certificates
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
Detail Pictures Of Generator:
Working Line:
| Model | open type diesel generator set | silent type diesel generator set |
| 2KW | 3KW | 5KW | 3KW | 5KW |
| DG3LE | DG4LE | DG6LE | DG4LN | DG6LN |
| Frequency(Hz) | 50 /60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Voltage(AC)(V) | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 |
| Voltage(DC)(V) | 12 | 12 | 12 | 12 | 12 |
| Current(A) | 8.30 | 8.30 | 8.30 | 8.30 | 8.30 |
| Engine speed(rpm) | 3000 /3600 | 3000 /3600 | 3000 /3600 | 3000 /3600 | 3000 /3600 |
| Power facotr(cosφ) | 1 | 1 | 1 | 1 | 1 |
| Starting system | Recoil manual start/optional electric start |
| Rate power(Kw) | 2.0/3.0 | 3.0/4.0 | 4.6/6.0 | 2.8/3.5 | 4.6/5.5 |
| Net weight(kg) | 75 | 96 | 119 | 139 | 168.5 |
| Engine model | ETK170F(E) | ETK178F(E) | ETK186F(A)(E) | ETK178F(E) | ETK186F(A)(E) |
| Type | Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine |
| Cooling type | Force air-cooled |
| Crankshaft direction | Clockwise from flywheel end |
| Continuous Output(Kw) | 2.5/2.98 | 3.4/4.4 | 5.7/6.6 | 3.4/4.4 | 5.7/6.6 |
| Maximum Output(Kw) | 2.8/3.36 | 4.0/4.9 | 6.3/7.34 | 4.0/4.9 | 6.3/7.34 |
| Bore × Stroke(mm) | 70*55 | 78*62 | 86*70/86*72 | 78*62 | 86*70/86*72 |
| Displacement(cc) | 211 | 296 | 406/418 | 296 | 406/418 |
| Fuel Tank Capacity(L) | 15 | 15 | 15 | 15 | 15 |
| Packing dimensions(L×W×H)mm | 705*520*580 | 745*520*600 | 785*550*635 | 950*550*770 | 965*565*725 |
| Lube-oil Capacity(L) | 0.75 | 1.1 | 1.65 | 1.1 | 1.65 |
| 20FT container (pcs) | 132 | 99 | 99 | 72 | 72 |
| Prod Model: |
DG6LN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
2/3/5kw |
| Frequency: |
50/60Hz |
| Colour: |
Red,Yellow,White etc. |
| Voltage(AC)(V): |
220,230,120/240 |
| Voltage(DC)(V): |
12 |
| Starting System: |
Recoil Start/Optional Electric Start |
| Warranty: |
Running for One Year |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Air Cooled |
| Installation Method: |
Portable |
| Output Type: |
AC Sigle Phase&Three Phase DC12-18V |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
