5kw Silent Diesel Engine Power Generator (DG6500SE)
| Price: |
US $ 455-465/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Super silent diesel generator set (DG6500SE-N)1. Super silent 65DB at 7 meters, with National patent. (Also a normal silent model DG6500SE, the price is much cheaper!)
2. Perfect air passage and inside design, make inside temperature very low with stable performance.
3. Diesel Generator (DG6500SE-N) use good brand components, give clients reliable quality.
4. Warranty time is 1 year, could supply spare parts for every mdoel since we are manufacturing factory.
5. The main features and advantages first lie in the soundproof material and technical application.

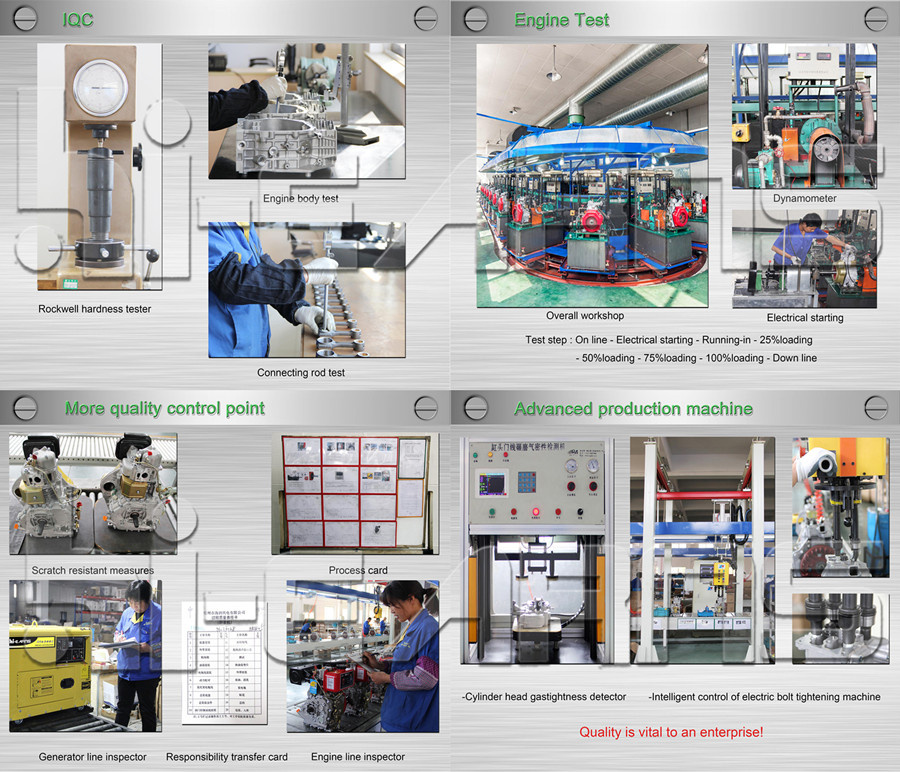

6. They are widely adopted by families, companies and other telecommunications.Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output:
Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard:
We are professional generator manufacture, I think we must have one type even more can match what you need!Just send us your inquiry, we will high appreciate it!
| Model | DG6500SE-N |
| Frequency(hz) | 50 | 60 |
| Max. output(kw) | 4.6 | 5.0 |
| Rated output(kw) | 4.2 | 4.6 |
| Rated. AC voltage(v) | 120, 220, 230, 240, 220/380, 230/400, 240/415 |
| Power factor(cos& phi) | COSΦ =1 |
| DC output (v) | 12V/8.3A |
| Phase | Single phase |
| Alternator type | self-excited, 2-pole, single phase alternator |
| Starting system | Electric |
| Operating noise level(at 7m) | 65~68 |
| Fuel tank capacity(l) | 16 |
| Continues work(hr) | 9.3 | 8.5 |
| Model | HR186FA |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
| Bore× stroke(mm) | 86× 72 |
| Fuel | 0# or -10#light diesel oil |
| Lubricatiom oil volume(l) | 1.65 |
| Combustion system | Direct lnjection |
| Voltmeter | yes |
| AC Output Socket | 2 |
| AC circuit breaker | yes |
| Oil warning light | yes |
| Oil alert | yes |
| DC circuit breaker | optional |
| Calculagraph | optional |
| Big Wheel | optional |
| Three phase volatge | optional |
| Current meter | optional |
| ATS | optional |
| Remote control | optional |
| Welding | optional |
| Dimension(L× W× H)(mm) | 765*520*710 |
| Dry weight(kg) | 175 |
| 20FT | 80 |
| Prod Model: |
DG6500SE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
Hr186fa |
| Engine Power: |
10HP |
| Generator Output: |
4.6kw |
| Noise Level: |
65 dB |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
AC Single Phase |

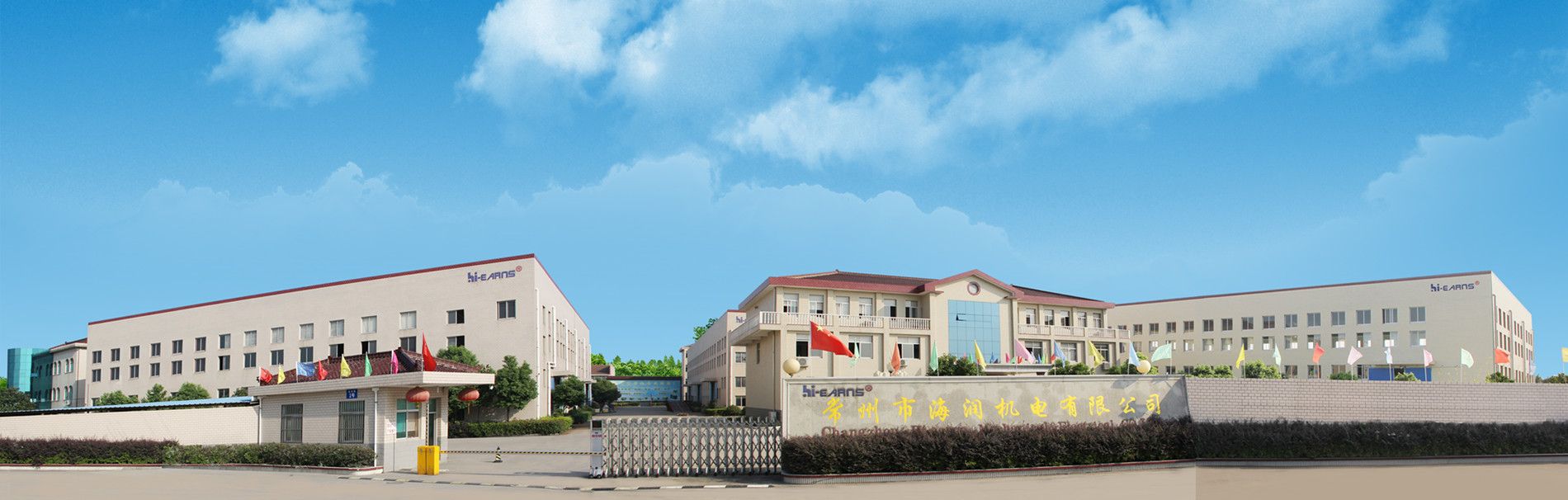

Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
