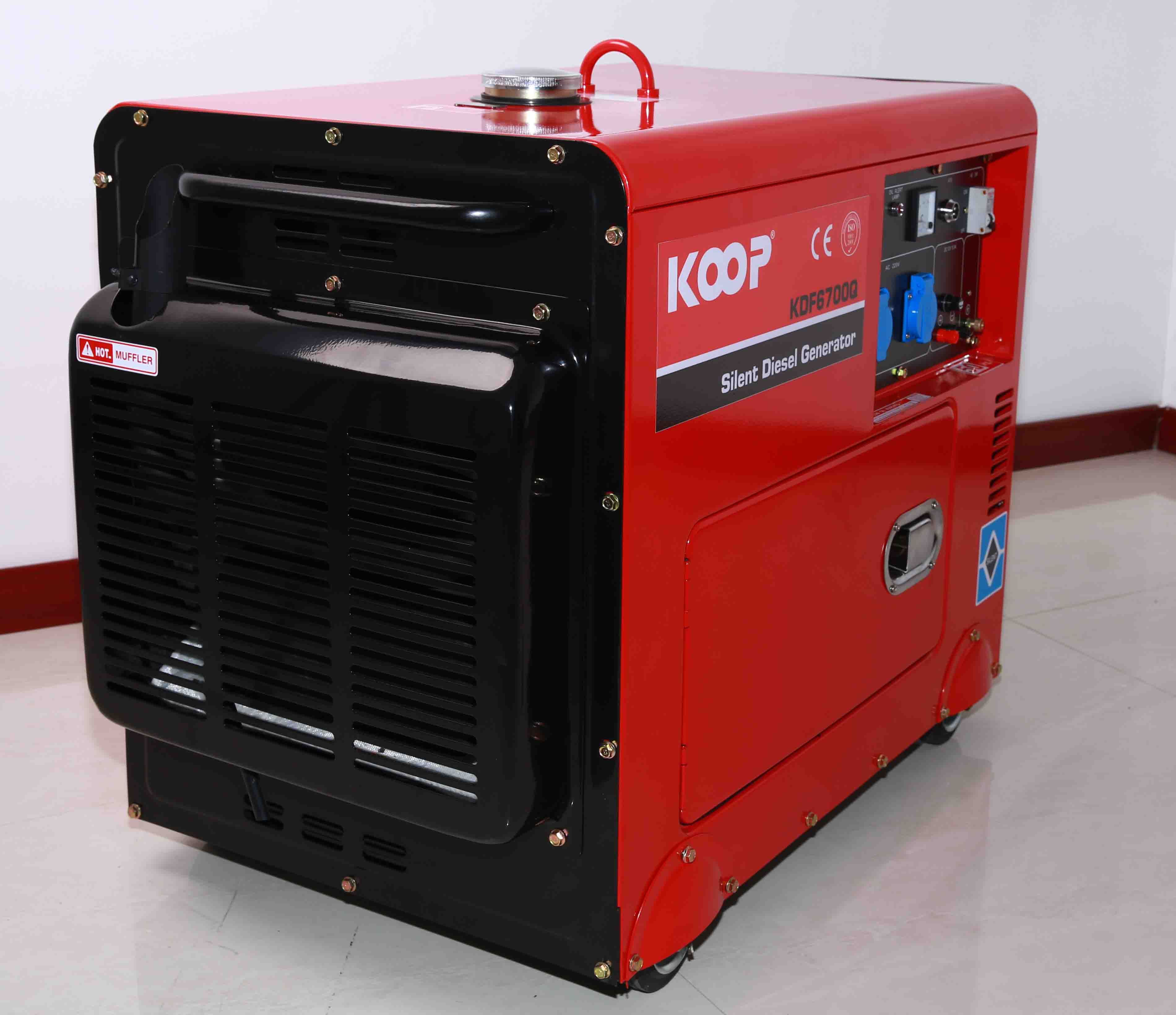

1. CE approved, powered by KOOP advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
|
Model |
KDF6500AQ |
|
|
Rated frequency (Hz) |
50 |
60 |
|
|
Rated voltage (V) |
220, 230, 240, 220/110, 230/115, 240/120 |
|
|
|
|
Rated output power (KVA) |
4.2 |
4.5 |
|
|
Rated rotation speed (rpm) |
3000 |
3600 |
|
|
DC output |
12V, 7A |
|
|
Power factor cosφ |
1 |
|
|
Phase number |
Single phase |
|
|
Excitation mode |
Self-excitation Brushless |
|
|
|
|
Noise level dB(A)@ 7m (zero load - full load) |
70-74 |
|
|
|
|
Overall dimension [mm(in)](L×W×H) |
920×520×700 |
|
|
36.22×20.47×27.56 |
|
|
Net weight [kg(lbs)] |
140 (308) |
|
|
Structure model |
Low noise type with enclosure |
|
|
Connection mode |
Single bearing, rotor drive shaft, rigid coupling |
|
|
Engine model |
KD186FE |
|
|
Engine type |
1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
|
|
Displacement [cm³(Cu-in)] |
406 (24.78) |
|
|
Compression ratio |
19:01 |
|
|
Rated power [KW(Hp)/rpm] |
6.3 (8.6)/3600 |
|
|
Starting system |
Electric starting |
|
|
Rotation direction (view from flywheel) |
Clockwise |
|
|
Fuel type |
0 (sumber), 10 (winter) diesel oil |
|
|
Lube |
SAE10W30 (above CC grade) |
|
|
Low oil pressure alarm system |
With |
|
KOOP is a pioneer enterprise which involves in the research and manufacture of small power engine and standby power system. The core team consists of industrial senior technology experts and management elites, who acquire the advanced design ability as well as abundant experience in internal combustion engine, electrical and electric field. After many years' efforts, with Changzhou KOOP Power Machinery Co., Ltd., Changzhou KOOP Imp. & Exp. Co., Ltd., and Changzhou Powermart Imp. & Exp. Co., Ltd. As sub-companies, KOOP has become a leading manufacturer of engine power industry in China.
Changzhou KOOP Power Machinery Co., Ltd., the manufacturing base of KOOP Group, which locates in the California Technology Park, Changzhou Development Zone, Jiangsu, China, is a modernized garden-like factory with convenient traffic and beautiful environment. The company has a construction area around 20000m2, including 5000m2 none-dust workshop and large logistics center, with an annual production capacity of 50, 000 air-cooled diesel engines and generator sets.
From the many years passed to now, KOOP has always been following the concept of 'Technology as priority, Quality as foundation'. Every product is elaborately manufactured and strictly tested according to standard, to ensure its high quality when delivered to customer. At present, the company has established and perfected the quality management system in accordance with TS16949 standard. KOOP will make continuous efforts to ensure the products quality and plant the quality as culture into the hearts of our staff. At the same time, KOOP will feed back our customers with best quality and price through design innovation, scientific management and lower cost.
KOOP is making ceaseless efforts to build itself the best engine power supplier in China. We are willing to develop with all the partners and create a bright future together.
