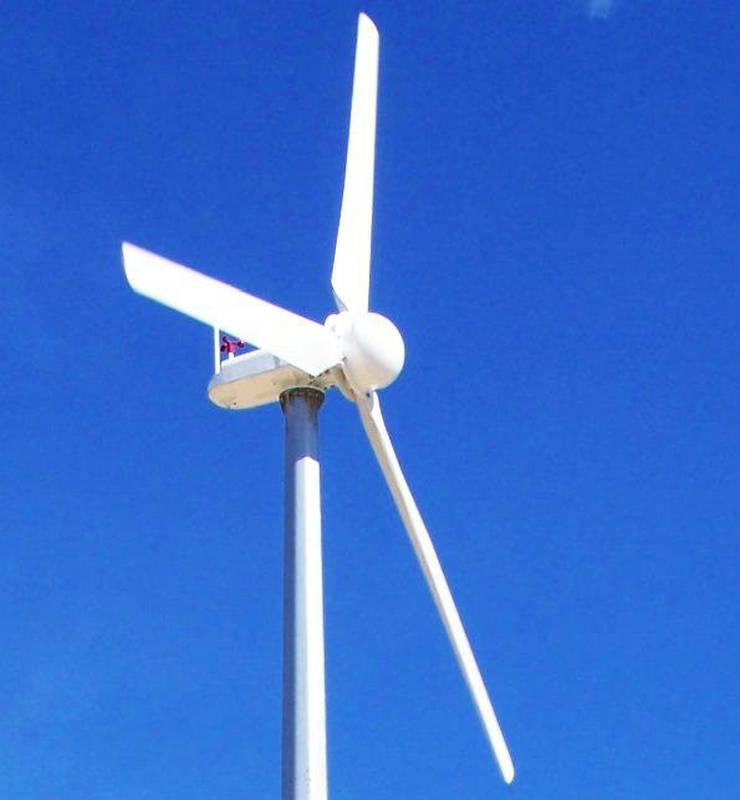

Hummer H6.4-5kw residential wind generator have two three versions: Off grid residential wind generator, on grid and wind solar hybrid system.
Features of hummer 5KW wind turbine generators:
1. SCF supercritical generator technology, generator weigh only 147kg, generation efficiency over 0.80.
2. Quality parts use SKF bearings and Siemens PLC control system and so on
3. Sine wave output, drive 2kw pump, 5kw appliances etc.
4. Connect with 1500W solar panels to make up the wind solar hybrid system.
5. Low energy comsumption by the wind turbine generator itself.
6. Long life design with easily installation and maintenance
Application to:
1) Housing, factory and hospital
2) Telecommunication Station
3) Monitoring Station (military, hydrology, observatory)
4) Wind farm station
5) Water-pumping Station
|
Rated power (W) |
5000 |
|
Maximum output power (W) |
7500 |
|
Charging voltage (V) |
DC 240 |
|
Blade quantity |
3 |
|
Rotor blade material |
GRP |
|
Rotor blade diameter (ft. ) |
21 (6.4m) |
|
Start-up wind speed (mph) |
6 (2.5m/s) |
|
Rated wind speed (mph) |
22 (10.0m/s) |
|
Rated rotating rate (r/min) |
240 |
|
Wind energy utilizing ratio (Cp) |
0.4 |
|
Generator output |
Frequency conversion AC |
|
Rated charging current (A) |
20.8 |
|
The maximum charging current (in a short time) (A) |
32 |
|
Output AC frequency (Hz) |
0~360 |
|
Generator efficiency |
> 0.8 |
|
Free standing tower diameter (in. ) |
19.5*7.3
(Ø 495*Ø 185mm) (2pcs) |
|
Guy tower diameter(in. ) |
8.7*78.7*0.2 (Ø 220*3000*6mm)(4pcs) |
|
Tower height (ft. ) |
39 (12m) |
|
The weight of generator (lb) |
324 (147kg) |
|
Suggested Battery (Ah) |
400/600 |
Anhui Hummer Dynamo Co., Ltd, a famous high and new tech enterprise in wind turbine(wind power generator)industry: 500W, 1kw, 2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 100kw; Hummer is specialized in the researching, manufacturing and providing medium and small sized wind turbine (wind energy generator), as well as providing solutions for small wind farms. Hummer provides both off gird and grid tied wind turbine(wind energy)systems, further more, each of the wind turbine system could upgrade to wind solar hybrid system by adopting hummer specially wind-solar hybrid rectifier/dumping controller. Besides, we offer new design wind solar hybrid street light system which adopt hummer special 400W/600W wind generator on the top will be a city landscape on both side of the street. Our manufacturing base, which covers an area of 23000 m2, is located in the economic development zone of Lujiang county, Anhui province, China, with a registered capital of 11 millions RMB. There are about 200 workers among whom 40 researchers and technicians. There are over 70 sets of advanced machines and equipments, which can provide a maximum monthly production capacity of 3000 sets ofwind turbine (wind generator) and an annual production capacity of 20, 000 sets wind turbine (wind power generator).
With the supercritical generator technology as the core of our technologies, Hummer wind turbine&wind-solar hybrid street light system are pysically lighter and smaller, in the meanwhile more efficient and more stable. Hummer wind turbine's whole system has passed European CE certificate, the generator part has passed American UL certificate and controller unit has passed North American ETL certificate. In the past six years, our products have been exported to 91 countries and areas, such as the USA, Australia, Germany, the UK, France, Russia, Brazil, South Africa, India, Israel and Japan, etc.
