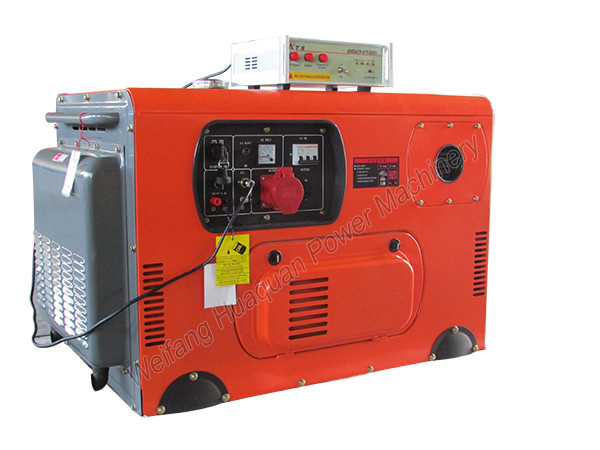

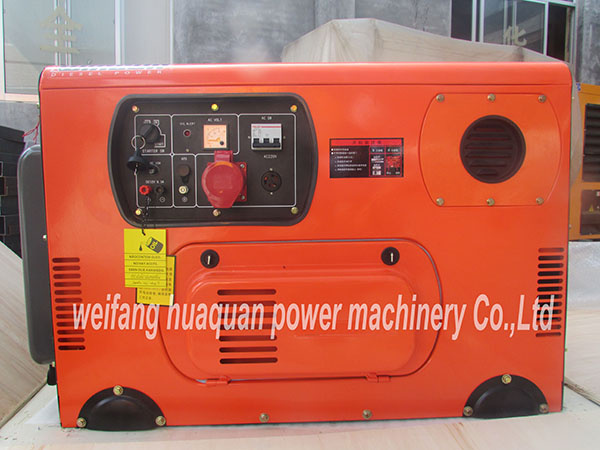

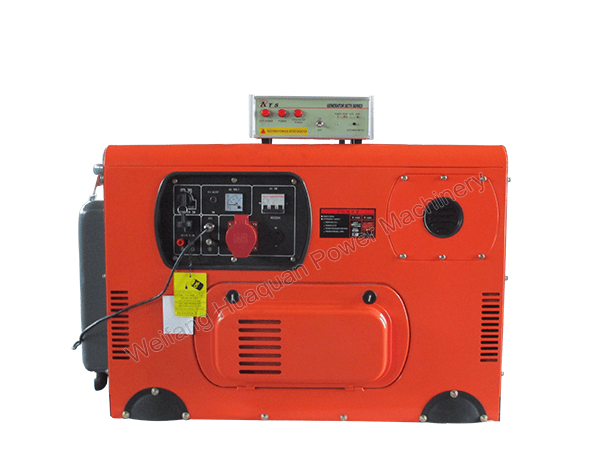

5kw Portable Generator Diesel
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
5kw portable generator diesel3kw 5kw 10kw diesel generator portable generator set? Features:
1) Electric starter ensures starting easily;
2) Easy to move with durable 4 wheels;
3) Single-cylinder, 4 stroke, air-cooled diesel engine;
4) Low fuel consumption;
5) Low oil shutdowm system;
6) AVR ensure stable voltage and current;
7) Open frame type;
8) Lightweight and small size convenience displacement;
9) Electric start with 30AH battery;
10) Portable model apply for office,home and camping use!
? Optional:
1) Three phase available;
2) Silent type available;
2) ATS system, digital panel available;
3) Remote control available;
4) Overload protection avavilable;
Specification:
Generator Model | HQ-5000CE |
| Rated frequency (Hz) | 50 60 |
| Rated output(kVA) | 4.5 5.0 |
| Max. ouput (kVA) | 5.0 5.5 |
| Rated voltage (V) | 220V,230V,240V,220/110V,240/120V (For option) |
| Rated current (A) | 39.2/19.6 41.7/20.8 |
| Rated speed (r/min ) | 3000 3600 |
| Phase NO. | Single phase |
| Power factor (cosφ) | 1 |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel |
| Output | Volage (V) | 220V,230V,240V,220/110V,240/120V (For option) |
| Receptacle (mm) | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension:L×W×H(mm) | 720×492×655 |
| Dry weight (Kg) | C:95 E:100 |
| Working assorting weight(Kg) | C:110 E:115 |
| Noise Level(7M) db(A) | 77 |
| Structure type | Open frame |
| Engine Model | 178FA |
| Engine type | single-cylinder,Vertical,four-storke,direct injection |
| Cylinder NO,-bore×stroke(mm) | 1-78×64 |
| Displacement | 296 |
| Rated power[kW(Hp)/(r/min)] | 5.0/3000 5.5/3600 |
| Compression ratio | 20:01 |
| Rated rotation speed | 3000 3600 |
| lgnition system | - |
| Cooling system | Air cooled |
| Lubrication system | pressure splashed |
| Starting system | C:Recoil E:Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.8kW |
| Charging generator capacity (V-A) | 12V 3A |
| Battery capacity(V-Ah) | 12V 36Ah |
| Fuel consumption (g/kW·h) | 275.1 281.5 |
| Fuel tank capacity (L) | 13.5 |
| Continuous running time (hr) | 11 |
Generator Model | HQ-3000CE |
| Rated frequency (Hz) | 50 60 |
| Rated output(kVA) | 3.5 4.0 |
| Max. ouput (kVA) | 3.0 3.5 |
| Rated voltage (V) | 220V,230V,240V,220/110V,240/120V (For option) |
| Rated current (A) | 39.2/19.6 41.7/20.8 |
| Rated speed (r/min ) | 3000 3600 |
| Phase NO. | Single phase/Three phase |
| Power factor (cosφ) | 1 |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel |
| Output | Volage (V) | 220V,230V,240V,220/110V,240/120V (For option) |
| Receptacle (mm) | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension:L×W×H(mm) | 655×4 655×480×530 80×530 |
| Dry weight (Kg) | C:65 E:70 |
| Working assorting weight(Kg) | C:78 E:83 |
| Noise Level(7M) db(A) | 77 |
| Structure type | Open frame |
| Engine Model | 178FA |
| Engine type | single-cylinder,Vertical,four-storke,direct injection |
| Cylinder NO,-bore×stroke(mm) | 1-78×64 |
| Displacement | 296 |
| Rated power[kW(Hp)/(r/min)] | 3.0/3000 3.5/3600 |
| Compression ratio | 20:01 |
| Rated rotation speed | 3000 3600 |
| lgnition system | - |
| Cooling system | Air cooled |
| Lubrication system | pressure splashed |
| Starting system | C:Recoil E:Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.8kW |
| Charging generator capacity (V-A) | 12V 3A |
| Battery capacity(V-Ah) | 12V 36Ah |
| Fuel consumption (g/kW·h) | 275.1 281.5 |
| Fuel tank capacity (L) | 13.5 |
| Continuous running time (hr) | 11 |
| Prod Model: |
HQ5GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
5kw, 5kw |
| Certificate: |
ISO9001 CE |
| Voltage Regulation: |
AVR |
| Exciting Type: |
Self-Excitation, 2 Poles, Single Phase |
| Dimension(Mm): |
950X560X760 |
| Starting Method: |
Electric Start |
| Weight(Kgs): |
155 |
| Frequency: |
50/60Hz |
| Warrant: |
One Year |
| Rated Current: |
9A |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Two Stroke |
| Cooling Method: |
Oil Cooling |
| Output Type: |
AC Three Phase |
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
