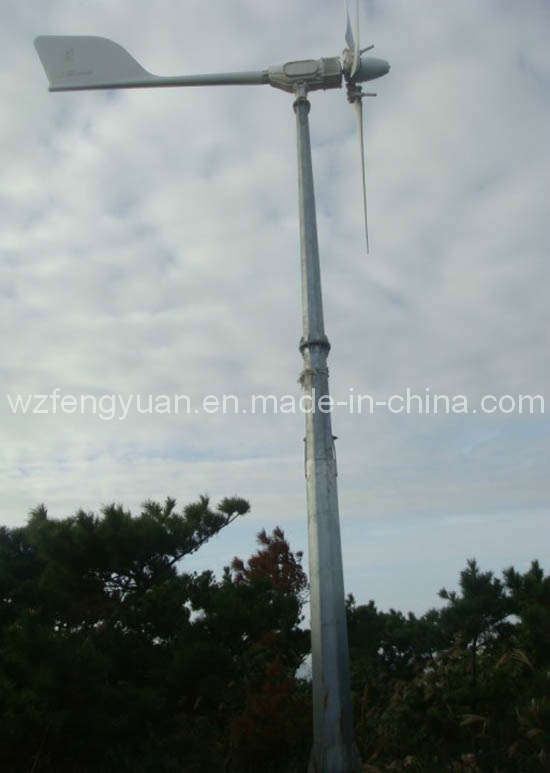

TY-5kW pitch controlled on grid system basic characteristics
1) Start up wind speed System start when wind speed is more than 2~3m/s
2) cut in wind speed System connects to grid and has output power when wind speed is over 3m/s.
3) Rated wind speed System has full output power at 11m/s, on grid output power is 6kW
4) Working condition in strong working wind in strong wind from 11m/s to 30m/s, system has full output power through pitch control mechanism and controller regulation.
5) Over working wind speed system needs to stop when wind speed is over 30m/s. Use manual brake to stop wind turbine.
|
Parameter |
|
Wind rotor diameter |
5.4m |
|
Type |
Three blade, horizontal, up wind |
|
Blade material |
Reinforced fiber glass |
|
Start up torque |
< 7.5N· m |
|
Pitch control regulation |
260~320rpm |
|
Max rotate speed |
< 320r/min |
Generator technical parameter
|
Condition |
parameter |
|
Generator type |
Permanent magnet, three phase, AC |
|
Start up torque |
< 7.5N· m |
|
Rated rotate speed |
260r/min |
|
Rated voltage |
500Vdc |
|
Rated efficiency |
> 80% |
|
Capacity |
> 1.5 times of rated power |
|
Max rotate speed in zero load condition |
1.2 times of rated rotate speed |
|
Working temperature |
-25° C~65° C |
|
Working environment humidity |
< 95% |
Power curve data sheet
|
Wind speed (m/s) |
2m/s |
3m/s |
4m/s |
5m/s |
6m/s |
7m/s |
8m/s |
9m/s |
10m/s |
11m/s |
12m/s |
> 12m/s |
|
Power(w) |
0 |
70 |
280 |
550 |
900 |
1400 |
1960 |
2710 |
4000 |
5800 |
6000 |
6000 |
System parameter
|
Wind rotor diameter |
5.4m |
|
Blade material |
Reinforced fiber glass |
|
Rated power / max power |
5kw/6kw |
|
Rated rotate speed |
260r/min |
|
Rated wind speed |
11m/s |
|
Start up wind speed |
2.5m/s |
|
Working wind speed |
3~30m/s |
|
Survive wind speed |
60m/s |
|
Working voltage |
DC500V |
|
Speed regulation method |
Pitch control |
|
Stop method |
Manual brake |
|
Generator type |
Permanent magnet, three phase, alternator |
|
Wind turbine weight |
400kg |
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
