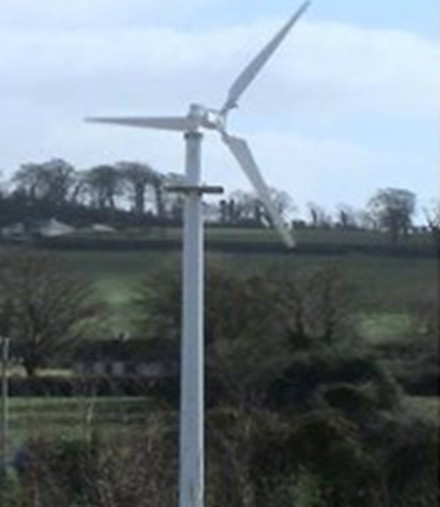

Variable pitch wind turbines act just like the above automatic transmission by automatically adjusting their variable pitch blades to optimize blade efficiency over a broad range of wind speeds.
| HY--5000W Technical Parameter |
| Rated power(kW) | 5 | Material of the blades | Fiberglass-Reinforced Plastics |
| Rated wind speed(m/s) | 11 | Speed regulation method | Adjustable-Pitch of blades |
| Startup wind speed(m/s) | 3 | Generator style | 3-phase AC PM |
| Working wind speed(m/s) | 4~25 | Tower height (m) | 8 |
| Survived wind speed(m/s) | 50 | Stop method | Sweepback
Adjustable-Pitch |
| Rated rotate speed (r/min) | 240 | Main machine weight(kg) | 340 |
| Rotor Diameter(m) | 5.6 | Guyed tower weight(kg) | 380 |
| Working voltage(v) | DC240V/AC220V | Freestanding tower weight (kg) | 600 |
Annual power generation
(KWH) | 7500/22500 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
