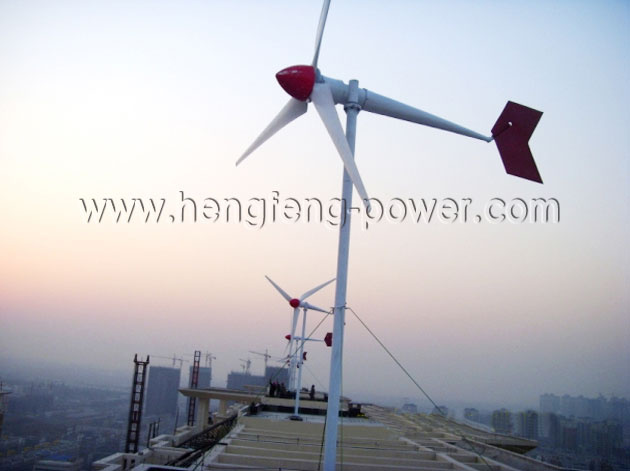

5kw Permanent Magnet Wind Generator (HF6.0-5000W)

5kw Permanent Magnet Wind Generator (HF6.0-5000W)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Wind generator 5000W(HF6.0-5000W)

1. Features of our generator:
We use the high greade NdFeB permanent magnet for generator. Every pieces magnet will be test the magnetic flux by the authority institution. The low starting torqure is designed by our mechanical engineer but also assure the high generating effciency by improving the inner structure. With scientific design and practised experience, the machine has stable and high efficiently.

2. Characters of Controller
Our wind&solar hybrid controller has the battery over voltage protection, battery under voltage protection, battery reverse-connect protection, solar panel reverse-charge protection, solar panel reverse-connect protection. If the system meet problem, and the wind turbine is running, the manual brake button will prevent the wind turbine race rotation The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging batteries. When the charge current is high in strong wind, controller can load the wind turbine automatically and charging the battery with low current, however, the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%. The big power controller which are from 15KW to 100KW matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive to show more directly.

3. Blades of the wind turbine
Streamline shape 3 pieces fiber reinforce plastic blades. Also it is unidirectional fibre fabric that use epoxy resin mold made by hand.

4. Pure sine wave Inverter
It is the pure sine wave output can drive any household appliances and use integrated circuit, less wire connection.
We adopt the micro-processor technology, improving system integration. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection with high efficiency transformer instead of high frequency e-circuit design. Inverter displayed by LCD peration status. High efficient transformer isolation and buzzer alarm while over-loading, over-voltage, high-temperature.

5. The tower
We can supply free stand tower and guy wire tower, and the height can be changed according to your requirement. We also can produce the tower with climb ladder, that is convenience for installation.
  Power 5000W
  blades diameter   6.0m
  rated rotor speed   200r/m
  rated speed   8m/s
  rated power 5000w
  max power 7000w
  output voltage   220v
  start up wind speed   3m/s
  work speed   3-25m/s
  security wind speed   50m/s
  height of tower   9m Φ 133mm steel tube
  output controller system   controller, inverter
  suggested batteries and its capacity   12V 100AH18PCS

Prod Model: HF6.0-5000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Blade: Three Blade
Stress Way Of Blade: Lift Force
Rotating Shaft: Horizontal
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
