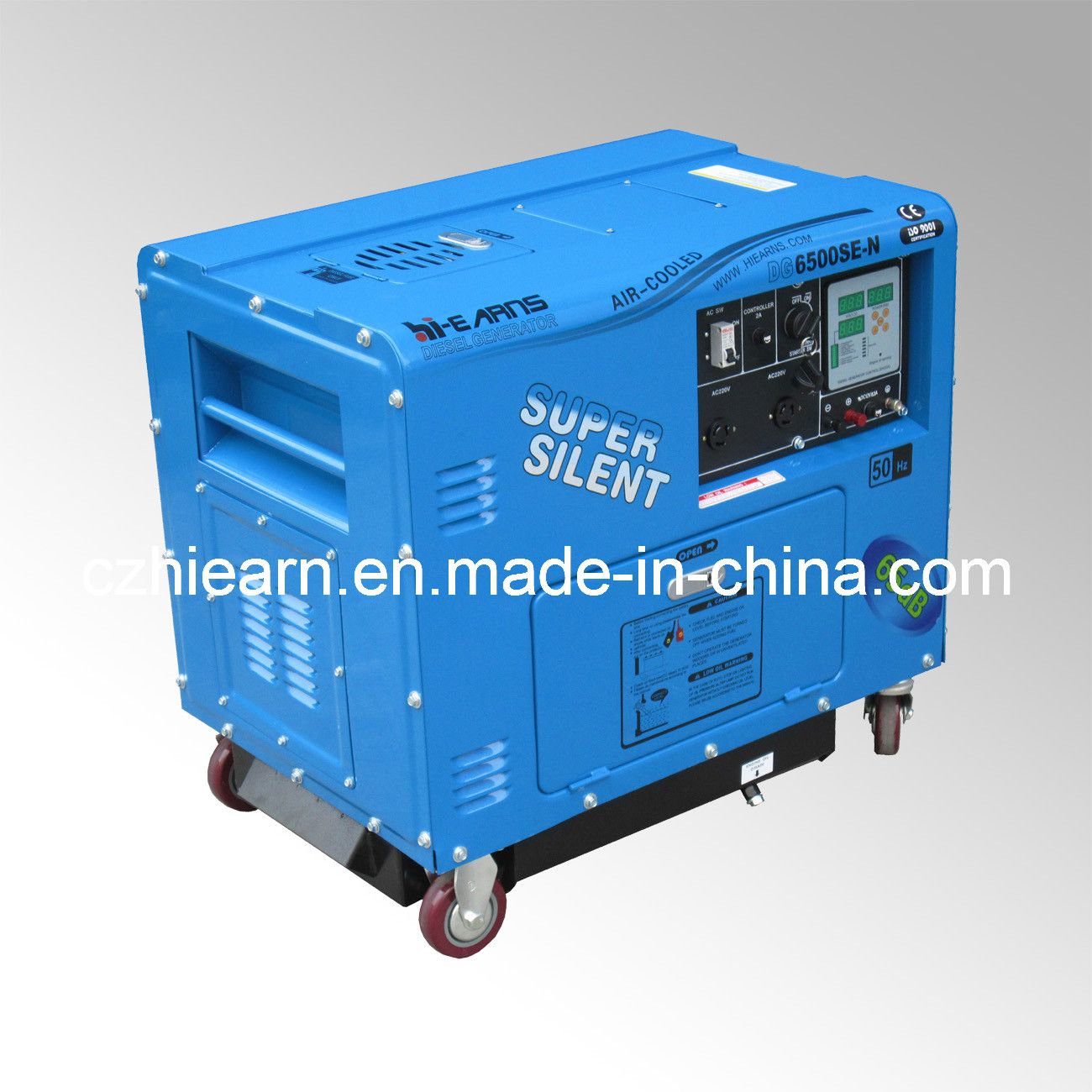

5kw Patent Product Super Silent Type Diesel Generator (DG6500SE-N)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Super Silent Diesel Generator (DG6500SE-N)CE
*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Electric starter ensures easy starting.
*Low oil pressure alert system shuts down the engine automatically.
*Enclosed structure brings quieter operation for the owner.
*Auto depression unit ensures quick starting
Super Silent diesel generator(DG6500SE-N)CE
|
Model |
DG6500SE-N |
|
Frequency(hz) |
50 |
60 |
|
Max. output(kw) |
4.6 |
5.0 |
|
Rated output(kw) |
4.2 |
4.6 |
|
Rated. AC voltage(v) |
120, 220, 230, 240, 220/380, 230/400, 240/415 |
|
Power factor(cos& phi) |
COSΦ =1 |
|
DC output (v) |
12V/8.3A |
|
Phase |
Single phase |
|
Alternator type |
self-excited, 2-pole, single phase alternator |
|
Starting system |
Electric |
|
Operating noise level(at 7m) |
65~68 |
|
Fuel tank capacity(l) |
16 |
|
Continues work(hr) |
9.3 |
8.5 |
|
Model |
HR186FA |
|
Engine type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Bore× stroke(mm) |
86× 72 |
|
Fuel |
0# or -10#light diesel oil |
|
Lubricatiom oil volume(l) |
1.65 |
|
Combustion system |
Direct lnjection |
|
Voltmeter |
yes |
|
AC Output Socket |
2 |
|
AC circuit breaker |
yes |
|
Oil warning light |
yes |
|
Oil alert |
yes |
|
DC circuit breaker |
optional |
|
Calculagraph |
optional |
|
Big Wheel |
optional |
|
Three phase volatge |
optional |
|
Current meter |
optional |
|
ATS |
optional |
|
Remote control |
optional |
|
Welding |
optional |
|
Dimension(L× W× H)(mm) |
820*560*780 |
|
Dry weight(kg) |
175 |
|
20FT |
80 |
| Prod Model: |
DG6500SE-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
Hr186fa |
| Engine Power: |
10HP |
| Generator Output: |
4.2kw |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Single Phase |
