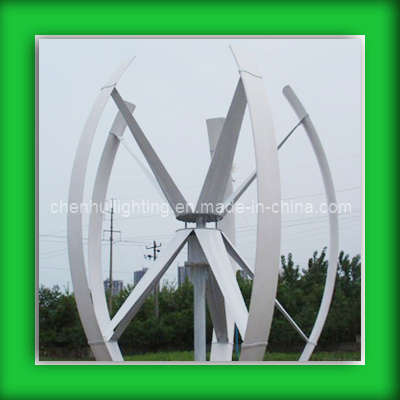

Wind turbine
Technology & Innovation
Sealed Sweden SKF bearingn
Unique designsn to keep water and moisture out
Unique anti-Vibration designn
Efficientn aero-dynamic design
Electromagnetic emergency breaking system
Unique earth permanent magnetic material
Low noise level
Durability
High salt fog, dust n& sand resistance
Strong wind resistancen & high survival wind speed.
|
Rated power (W) |
500 |
|
Maximum output power (W) |
1000 |
|
Charging voltage (V) |
DC 24 |
|
Blade quantity |
3 |
|
Blade material |
GRP |
|
Blade diameter (ft. ) |
9 (2.7m) |
|
Start-up wind speed (mph) |
7 (3.0m/s) |
|
Rated wind speed (mph) |
16 (7.0m/s) |
|
Rated rotating rate (r/min) |
600 |
|
Wind energy utilizing ratio (Cp) |
0.48 |
|
Generator output |
Frequency conversion AC |
|
Output AC frequency (Hz) |
0~300 |
|
Rated charging current (A) |
16.7 |
|
The maximum charging current (in a short time)(A) |
25 |
|
Generator efficiency |
> 0.78 |
|
Tower diameter (in. ) |
ø 3.0*78.7*0.1 (ø 76*2000*3 mm)(3pcs) |
|
Tower height (ft. ) |
20 (6m) |
|
Generator weight (lb) |
14 (6.5kg) |
|
Suggested Battery (Ah) |
120/150 |
