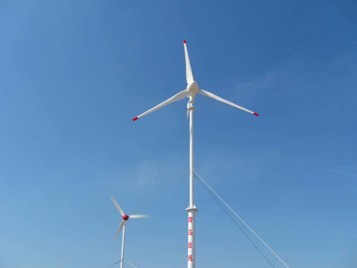

5kw horizontal axis wind turbine parameterDiameter of wind wheel 5.4m
Material of bladesFiberglass-Reinforced Plastics
Blades number3
RPM 320r/min
Rated wind speed 10m/s
Start up wind speed 2.7m/s
Working wind speed 3-30m/s
Survival wind speed 50m/s
Generator style3-phase AC PMG
Protection grade of PMGIP54
Material of generator caseQ23
Rated power 5kw
The max. Power 6kw
Rated voltage (DC)220V
The height of tower 10m
Guy cable tower type 219mm+159mm
Top weight
(generator + blades)195kg
Brake typeCentrifugal wheel intelligent slowing down

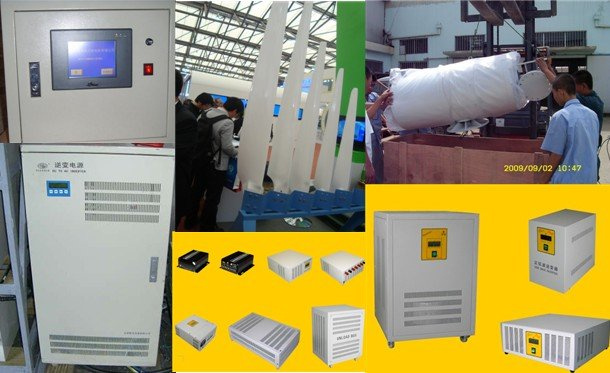

Controller and inverteradvanced wind & solar hybrid controller, pure sine wave inverter /on grid
Battery reference12V150ah, 18PCS
| Rated Power | 5kw |
| Blades Number | 3 pcs |
| Rotor Diameter | 6m |
| Rated Rotated Speed | 200r/m |
| Rated Wind Speed | 10m/s |
| Output Voltage | 220v |
| Start Up Wind Speed | 3m/s |
| Operating Wind Speed | 3-30m/s |
| Security Wind Speed | 50m/s |
| Output Controller System | controller and inverter |
| Battery | 12V200AH 18pcs |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
