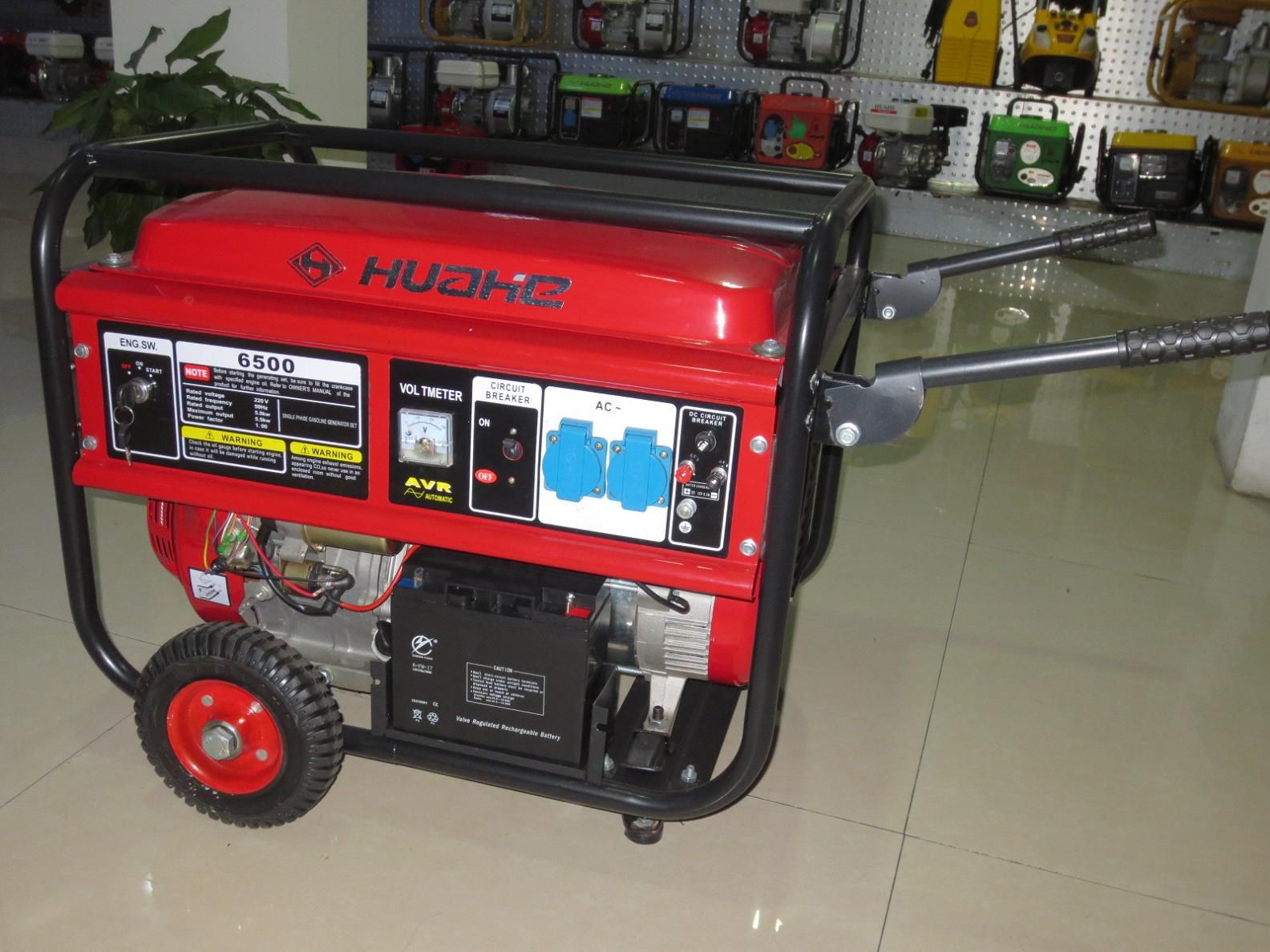

5kW Home Gasoline Generator With Wheels
Lower Fuel Consumption
Low Noise due to from Multiple Layers Expansion Design
AVR Adjust System, automatically stabilizes voltage
Easy Start Switch and Easy Pull Recoil Starter
Long Life OHV Design
Low Oil Sensor Protects Engine
Power Surge Alternator
Convenient Outlets
Specifications:
| Generator | Rated frequency (Hz): | 50 | 60 |
| Rated voltage (V): | 220 | 110 |
| Rated output power (kW): | 3.0/4.0/5.0 | 3.0/4.0/5.0 |
| Max output power (kW): | 3.5/4.5/5.5 | 3.5/4.5/5.5 |
| Rated rotation speed (rpm): | 3000 | 3600 |
| DC output: | 12V 8A |
| Power factor cos: | 1 |
| Phase number : | Single phase |
| Noise level dB (A)/7m | 72/73/74 |
| Fule tank[L]: | 25 |
| Set | Overall dimensions [mm] ( L x W x H ): | 680*520*540 |
| N. W[Kg]: | 65/78/86 |
| Engine | Engine model: | HH177/HH182/HH188 |
| Engine type: | single cylinder, 4-stroke, air-cooled, OHV, gasoline engine |
| Displacement [cc]: | 242/237/389 |
| Compression ratio: | 8.5: 1 |
| Rated power [(HP]: | 9.0/11.0/13.0 |
| Rated rotation speed (rpm): | 3600 |
| Starting system: | recoil starter / electric start |
| Low oil alarm system : | With |
