Professional generator OEM factor in guangzhou
. Stock available
. Generator 5kw
. SGS, SONCUP

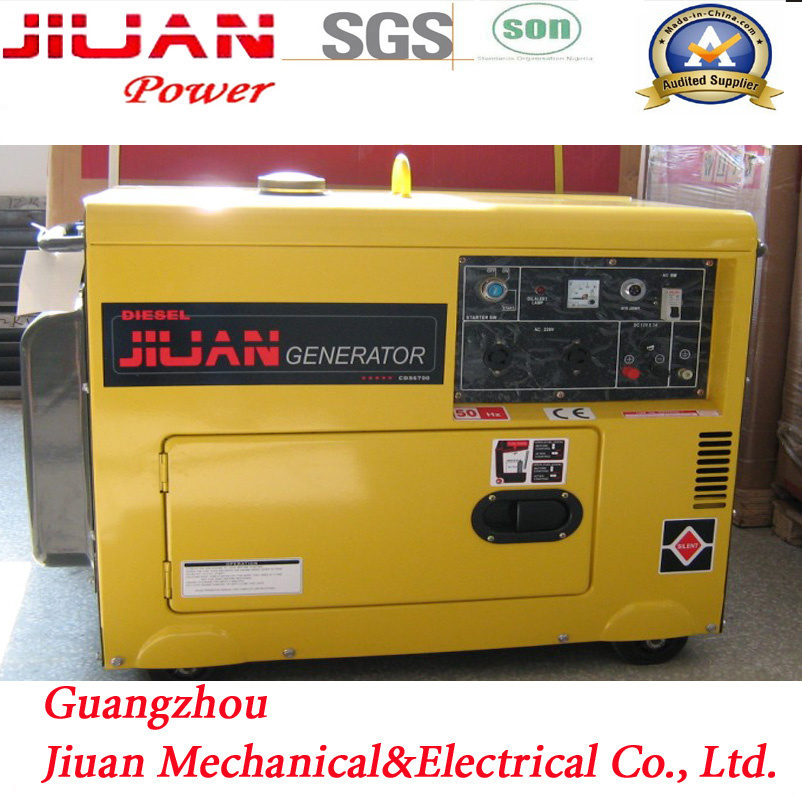

5kw generator self start generator
OEM Factory in City GUANGZHOU
Generator (yangdong diesel generator) power range 10-50kVA
JIUAN Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available
Diesel Generator Set 5kw |
Generator Specifications | Generator Model | 5kw |
Generator Prime Power | 5kw |
Generator Standby Power | 186FA |
Generator Engine Model | YD480G |
Generator Alternator | Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
Canopy for Choice | Super silent;Silent;Open frame;Trailer |
Controller | Smartgen or Deepsea |
Dimensions (L*W*H) | 2300*1100*1400(s)mm |
20FT/40HQFT Container | According to you |
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Generator MOQ | 1PCS |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Payment | T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Generator Sets | Frequency (HZ) 50HZ 60HZ |
Max.output (KW) 5KW 5.5KW |
Rated output (KW) 4.6KW 5KW |
Rated AC Voltage (V) 120,220,230,120/240,220/380 |
Power Factor 1 |
DC output 12V/8.3A |
Phase Single Phase/three phase |
Alternator Type Self-excited,2-pole, Single/three phase alternator(brush or brushless) |
Starting System Electric |
Noise Level (Dba/7m) 68-72Dba |
Fuel Tank Capacity (L) 16L |
Continues Running Time (hr) 7hr |
Engine | Engine Model: 186FA |
Engine Type single-cylinder, vertical,4-stroke air-cooled diesel engine |
Max output of engine: 8.5HP/3000rpm 9.2HP/3600rpm |
Bore X Stroke (mm) 86×72 |
Displacement Capacity(cc) 411cc |
Fuel Consumption rate(g/kw.h) ≤280 |
Fuel 0# or -10# light diesel oil |
Lubrication Oil Volume (L) 1.65L |
Combustion System Direct Injection |
Standard Features | Voltmeter Yes |
AC Output Socket 2 |
AC Circuit Breaker Yes |
Oil warning Light Yes |
Oil Alert Yes |
Optional Features | DC circuit breaker Optional |
Hour Meter Optional |
Three Phase Voltage Optional |
Current Meter Optional |
Remote Control Optional |
ATS Optional |
Digital Control Panel Optional |
New Canopy Type Optional |
Weld(20-160A) Optional |
Dimensions | LxWxH (mm) 975*555*710 |
20FT 72PCS |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
