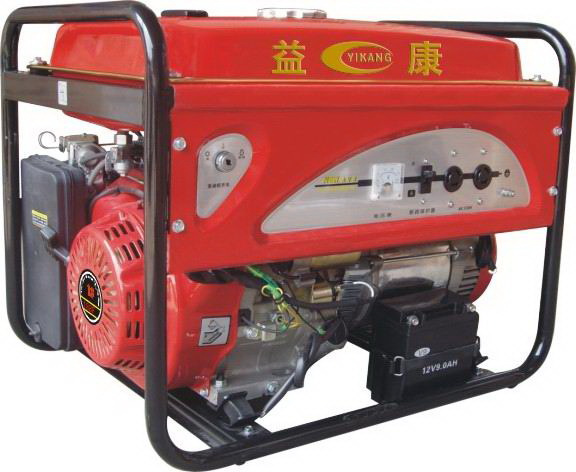

1. 5KW Gasoline generator
2. Recoil start
| | TYPE | QF5.0 QF5.0-A QF5.0-C | QF5.0-E QF5.0-EA QF5.0-EC |
| ITEM | |
| Generator | Rated frequency(HZ) | 50(60) |
| Rated voltage(V) | 230(110,120,220,240,220/110,230/115,240/120) |
| Rated amperage(A) | 20.8 |
| Max.output(KW) | 5.5 |
| Rated output(KW) | 5.0 |
| Power factor | 1 |
| Voltage regulate | Automtic regulator |
| Engine | Fuel tank capacity(L) | 25 |
| | Engine model | 188F |
| | BoreXstroke | 88*64 |
| | Compression ratio | 8.0:1 |
| | Starting system | Recoil | Recoil/Electric start |
| | Fuel volume(L) | 1.1 |
| | Engine type | OHV 25 0 Tile single cylinder,forced air cooling,4-stroke |
| Package | N.W/G.W(kg) | 84/88 | 91/95 |
| Package dimensions(mm) | 702*532*615 |
| Standard features | Big fuel tank,big air cleaner,big muffler,engine oil Waring system,electric current machine,wheel,push hand-picked match |
| 20FT(set) | 90 |
Our predecessor is Chongqing Nanan Jianye Auto Parts Factory, established in 1994. After years of development, we changed our name into Chongqing Yikang general mechanism manufacture Co., Ltd. In 2003.
As a professional producer of gasoline engine, gasoline generator and water pump, we have already obtained ISO9001: 2000 quality system certification and passed CE. Meanwhile, our company occupies a total area of 7, 000 square meters, with workshop area of 4, 000 square meters.
We now have totally 80 employees. 5 are senior in management, production and technology, and 15 are high quality, young and innovative, making up of a great team.
