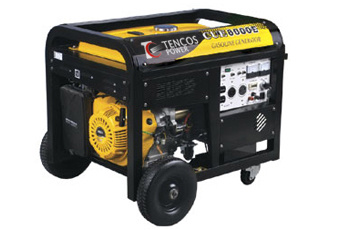

5kw gasoline generator
EPA, CE, CSA Certificate
Total Harmonic distortion<5.0%
2 pole, 1 Phase Brushless-Capacitor excited
Insulation Class F
Features Benefits:
Air Cooled, 4 Stroke, OHV, Gasoline Generator, Rated Power is From 1300W to 5000W
The new type Front panel has Voltmeter and two AC output
Big Fuel tank of 17L keep the generator working steadily for a long time
The design of low noise and shockproof is more environmental protection With DC output.
|
MODEL |
TC 5000
TC 5000E |
TC 6000
TC 6000E |
TC 7000
TC 7000E |
TC 8000
TC 8000E |
|
Generator |
Frequency(HZ) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Voltage(V) |
110,115,120,220,230,240,110/220,115/230,120/240 |
|
Max. Power(kW) |
3.5 |
4.0 |
4.5 |
5.5 |
5.5 |
6.0 |
6.5 |
7.0 |
|
Rated Power(kW) |
3.0 |
3.5 |
4.0 |
5.0 |
5.0 |
5.5 |
6.0 |
6.5 |
|
DC. Current(A) |
12V8.3A |
|
Power Factor cos |
1.0 |
|
Engine |
Model |
TC270F |
TC340F |
TC390F |
TC420F |
|
Max. Output(HP) |
9.0/3600rpm |
11/3600rpm |
13/3600rpm |
16/3600rpm |
|
Displacement(cc) |
270 |
337 |
389 |
420 |
|
Noise Level(at 7m) |
73dB |
77dB |
77dB |
78dB |
|
Starting System |
Recoil/Electric |
|
Type |
Force air-cooled 4 stroke, OHV |
|
Ignition System |
Non-contact transistorized ignition (T.C.I.) |
|
Fuel Tank (L) |
22 |
|
Oil Capacity (L) |
1.1 |
|
Package |
Dimension(LXWXH)mm |
740X530X600
E:740X560X600 |
770X540X600
E:770X570X600 |
790X540X600
E:790X570X600 |
|
G.W (kg) |
70 |
73 |
78 |
81 |
