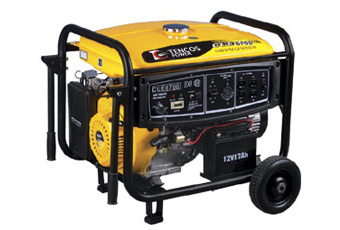

Portable generator set
Features Benefits
Air-cooled Four Stroke OHV Gasoline Engine
Rated Power: 5kw
YamahaSERIES generators adopt advanced technology in design. Adopt brushless, capacitance adjusting the voltage device. Provide stable voltage, avoid the job of boring maintain and change the carbon brush. DC output and double voltage output will be supported on request.
|
MODEL |
TC 4700
TC 4700E |
TC 5700
TC 5700E |
TC 6700
TC 6700E |
TC 7700
TC 7700E |
|
Generator |
Frequency(HZ) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Voltage(V) |
110,115,120,220,230,240,110/220,115/230,120/240 |
|
Max. Power(kW) |
3.5 |
4.0 |
4.5 |
5.5 |
5.5 |
6.0 |
6.5 |
7.0 |
|
Rated Power(kW) |
3.0 |
3.5 |
4.0 |
5.0 |
5.0 |
5.5 |
6.0 |
6.5 |
|
DC. Current(A) |
12V8.3A |
|
Power Factor cos |
1.0 |
|
Engine |
Model |
TC270F |
TC340F |
TC390F |
TC420F |
|
Max. Output(HP) |
9.0/3600rpm |
11/3600rpm |
13/3600rpm |
16/3600rpm |
|
Displacement(cc) |
270 |
337 |
389 |
420 |
|
Noise Level(at 7m) |
73dB |
77dB |
77dB |
78dB |
|
Starting System |
Recoil/Electric |
|
Type |
Force air-cooled 4 stroke, OHV |
|
Ignition System |
Non-contact transistorized ignition (T.C.I.) |
|
Fuel Tank (L) |
22 |
|
Oil Capacity (L) |
1.1 |
|
Package |
Dimension(LXWXH)mm |
680X510X570
E:680X540X570 |
710X520X570
E:710X550X570 |
730X520X570
E:730X550X570 |
|
G.W (kg) |
70 |
73 |
78 |
81 |
Tenchampion Group is a privately joint-stock enterprise, which is a professional Diesel/Gasoline Generator Sets manufacturer. It is located in the economic center in the east of Fujian Province in China.
TENCHAMPION ENTERPRISE has Three branches:
FUAN KINGER ELECTRICAL MACHINERY CO., LTD
Taiwan Branch(OSUMA CO. Ltd. ),
Beijing office.
Our company possesses the KIGER, JINGE, ALIDODO trademark, which has been known in the international market. The mark of the brand means the high quality of our product (Diesel/Gasoline Generator Sets).
We follow honesty, loyalty, cooperation, persistence as our marketing rulers. We offer excellent product (Diesel/Gasoline Generator Sets), excellent brand and excellent marketing to meet our customers' need.
Currently, there are 128 staffs in our company, including 15 executives and 5 technicians. We have 7 production lines which produces 0.1 million sets of products annually. We have more than 10 series and over 100 species gasoline/diesel machine and 95% of that are exported to international market, such as Middle East, Africa, Southeast Asia, Europe and South America, etc.
In order to achieve our company's farsighted strategic goal and provide the best service to our customers, all of us engaged in hard work to meet customers' demand, at the same time we push JINGE, ALIDODO brand forward to enable customer share of JINGE, ALIDODO products (Diesel/Gasoline Generator Sets) in the international market. We strive to adjust the product structure, improve the product (Diesel/Gasoline Generator Sets) quality and cut down the product cost too.
Thank you very much for your attention and we are looking forward to cooperate with you at anytime.
