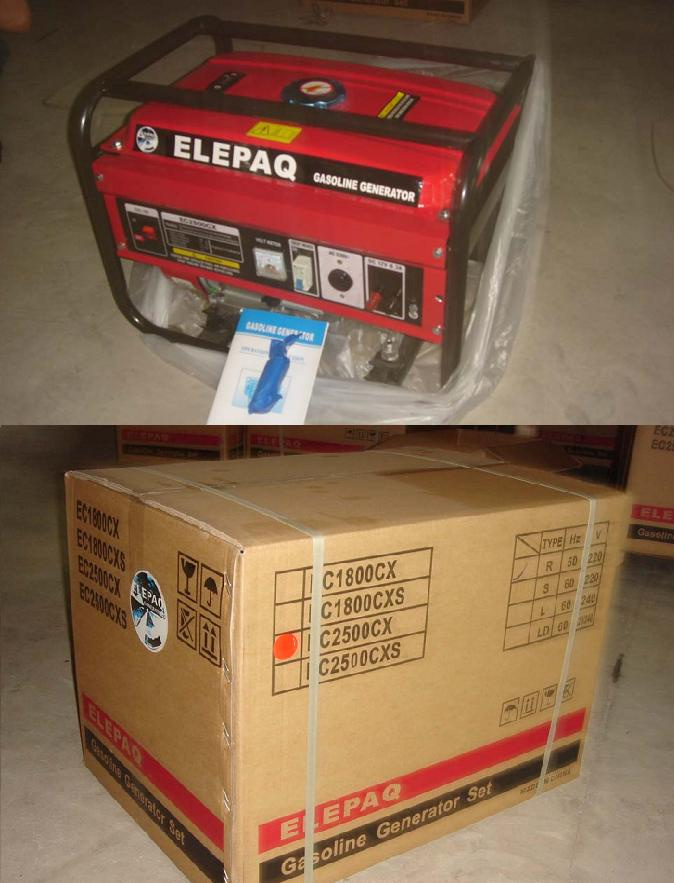

5KW Gasoline Generator set/Power generator set
Features Benefits
Air-cooled Four Stroke OHV Gasoline Engine
Rated Power: 5kw
Honda SERIES generators adopt advanced technology in design. Adopt brushless, capacitance adjusting the voltage device. Provide stable voltage, avoid the job of boring maintain and change the carbon brush. DC output and double voltage output will be supported on request.
|
Model |
EC1500 |
EC2500CX |
EC3500CX |
EC4500CX
EC4500CXE |
EC5500CX
EC5500CXE |
EC6500CX
EC6500CXE |
|
Voltage (V) |
220 |
|
Frequency (HZ) |
50 |
|
Max.Power (kW) |
1.6 |
2.3 |
2.7 |
3.5 |
4.4 |
5.5 |
|
Rated Power (kW) |
1.3 |
2.0 |
2.5 |
3.2 |
4.0 |
5.0 |
|
Rated Current(A) |
5.6 |
9.1 |
11.4 |
14.5 |
18.2 |
22.7 |
|
Engine type |
SW160 |
SW200 |
SW270 |
SW270 |
SW390 |
SW390 |
|
Max.Power (kW) |
5.5 |
6.5 |
6.5 |
9 |
13 |
13 |
|
Displancement (cc) |
163 |
196 |
196 |
270 |
389 |
389 |
|
Noise Leave |
65 |
65 |
65 |
70 |
72 |
74 |
|
Starting System |
Recoil |
Recoil/Electric |
|
Engine type |
Force air-cooled,4 stroke,OHV |
|
Lgnition System |
Non-contact transistorized ignition(T.C.I) |
|
Fuel tank (L) |
17 |
|
Oil Capacitor (L) |
0.6 |
1.1 |
Dimension
(LXWXH)mm |
630×440×500 |
610×445×475 |
685×530×540 |
|
N.W (Kg) |
38 |
44.5 |
52 |
72 |
81 |
85 |
