Home Generator Products 5kw Diesel Generator

5kw Diesel Generator

5kw Diesel Generator
Price: US $ 500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 2/Set
Pay Type: L/C,T/T

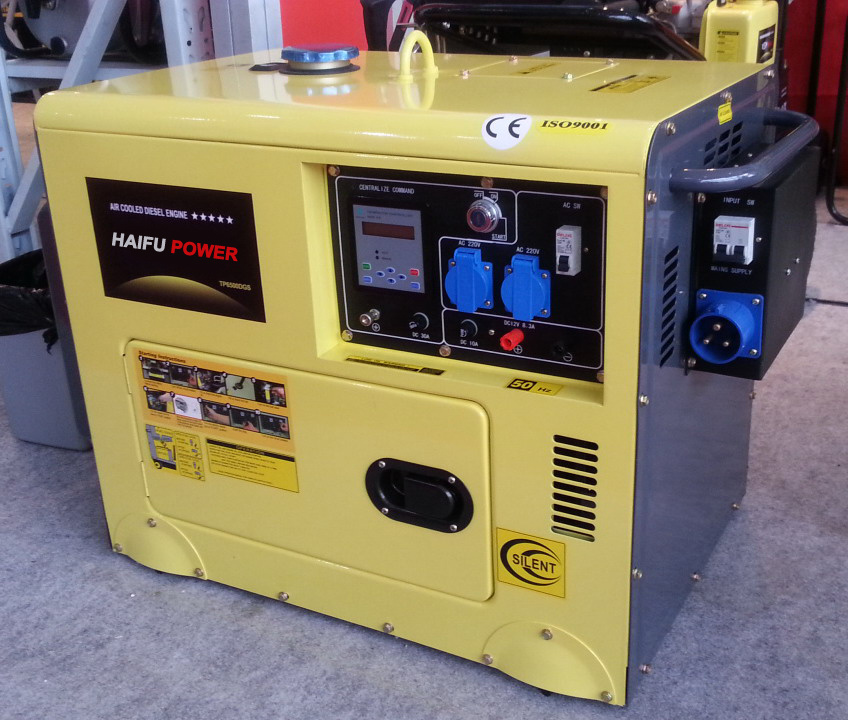

5KW Diesel Generator

1, 178F, 186F, 186FA, 188F Series China Famous Diesel Engine (Air-cooled)
2, CE Approved
3, EPA approved
4, 1-Year Warranty

Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
Advanced and reliable control module: Key start, Auto start/stop
ATS as Options

General Data Sheet

Rated frequency (Hz)50          60
Rated voltage (V)220       120/240
Rated current (A)20.5       40 / 20
Rated output (kw)4.5          5 .0
Max. output (kw)5.0         5.5
Rated speed (r/min)3000      3600
DC output(V.A)12V/8.3A
Power factor (cos)1.0
Phase NO.Single or 3phase
Noise level @7m7 2 - 74
Structure typeSilent
Excitation modeBrushless or Brush AVR
Engine NO.TP186F A
Displacemen(cc)4 18
Compression ratio19:1
Fuel type0#(summer)-10#(winter)-35(chiness)diesel
Lube oil t y peCD grade or SAE10W-30,15W-40
Starting systemElectric start
Battery Ah12V/17AH_36AH
Protection systemLow oil alarm
Overall dimension (LxWxH) (mm)95 0x5 7 0x 7 70
Net Weight1 70
Gross Weight1 75

Prod Model: DG6500LDE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Air Cooled
Installation Method: Portable
Output Type: AC Single Phase
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.

HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.

HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.

HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.

Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.

ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
