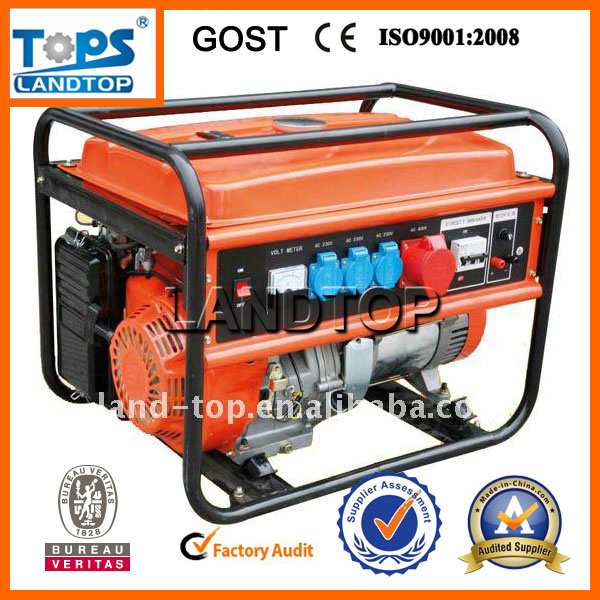

8.125kVA (6.5kw) gasoline generator set
1)Portable gasoline generator
2)High efficiency
3)Low fuel consumption
4)CE, ISO approved
8.125kVA (6.5kw) gasoline generator set
Portale gasoline generator, powered by single cylinder, 4-stroke gasoline engine.
Model Rated power Max output Power Rated Frequency Engine model Dimension
L*W*H Weight.
(KW) (kw) (Hz) (mm) (Kg)
FLG1500 1.3/1.5 1.43/1.65 50/60 168F 605*445*435 33
FLG2500 2.0/2.2 2.2/2.5 50/60 168F 605*445*435 36
FLG3500 2.5/2.8 2.8/3.0 50/60 168F-1 605*445*455 52
FLG4500 3.0/3.5 3.3/3.8 50/60 177F 690*525*560 72
FLG5500 4.0/4.5 4.4/5.0 50/60 188F 690*525*560 81
FLG6500 5.0/5.5 5.5/6.0 50/60 188F 690*525*560 84
FLG7500 5.5/6.0 6.0/7.0 50/60 190 710*540*560 88
| GENERATOR | Model | LTP950DC | LTP1000 | LTP2000 | LTP2500 | LTP3000 | LTP3800 | LTP4000 | LTP5000 | LTP6500 | LTP8000 |
| Type | Brushless, singl-phase |
|
|
|
|
|
|
|
|
|
| Voltage regulate | Capacitor | AVR |
|
|
|
|
|
|
|
|
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. Ac Output(KVA) | 0.7/0.95 | 1.0/1.1 | 1.7/2.0 | 2.2/2.5 | 2.8/3.5 | 3.3/3.8 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 | 7.0/8.0 |
| RatedACVoltage(V) | 110/120/220/230/240 |
|
|
|
|
|
|
|
|
|
| RatedACOutput(KVA) | 0.65/0.8 | 0.9/1.0 | 1.5/1.8 | 2/2.2 | 2.5/3.0 | 3.0/3.5 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 | 6.0/6.5 |
| Power factor | COSΦ =1 |
|
|
|
|
|
|
|
|
|
| ENGINE | Model | 1E45F | GB154 | GB168 | GB168 | GB200 | GB240 | GB270 | GB340 | GB390 | GB420 |
| Type | OHV Forced Air-cooled 2-Stroke | OHV Forced Air-cooled 4-Stroke |
|
|
|
|
|
|
|
|
| Displacement(ml) | 62.8 | 86.5 | 163 | 163 | 196 | 242 | 270 | 337 | 389 | 420 |
| Max. output(HP/rpm) | 1.8/3600 | 2.4/3600 | 5.5/3600 | 5.5/3600 | 6.5/3600 | 8.0/3600 | 9.0/3600 | 11/3600 | 13/3600 | 15/3600 |
| Fuel | Mixing rate between 90# gasoline and two-stroke oil 50: 1 | Unleaded gasoline |
|
|
|
|
|
|
|
|
| Fuel tank capacity(L) | 4 | 5 | 15 |
|
| 25 |
|
|
| 25 |
| Continous operating hours(h) | 13.5 | 15 | 13 | 13 | 11 | 12.5 | 11 | 10 | 9 | 9 |
| Oil | two-stroke oil 50: 1 | SF or Higher grade |
|
|
|
|
|
|
|
|
| Oil capacity | x | 0.4 | 0.6 |
|
| 1.1 |
|
|
| 1.1 |
| Ignition system | C. D. 1 | C. D. 1 | T. C. I |
|
| T. C. I |
|
|
| T. C. I |
| Starting system | Recoil amd hand-operated |
|
|
|
| Recoil amd hand-operated /Electric start |
|
|
|
|
| Operating noise level(7m) db (A) | 68 | 68 | 67 |
|
| 72 |
|
|
| 72 |
| STANDARD FEATURES | Fuel gauge | 0 |
|
|
|
|
|
|
|
|
|
| Voltmeter |
|
|
|
|
|
|
|
|
|
|
| AC Circuit breaker |
|
|
|
|
|
|
|
|
|
|
| Engine switch |
|
|
|
|
|
|
|
|
|
|
| AC Socket |
|
|
|
|
|
|
|
|
|
|
| OPTIONAL | DC Output | + |
|
|
|
|
|
|
|
|
|
| DC Circuit breaker |
|
|
|
|
|
|
|
|
|
|
| Pilot light |
|
|
|
|
|
|
|
|
|
|
| PACKAGE DIMENSION | Dimension L*W*H(mm/mm/mm) | 385*335*340 | 480*410*425 | 600*450*470 |
|
| 700*525*580 |
|
|
| 700*560*580 |
| Gross weight(kg) | 22.5 | 69 | 41 | 42 | 52 | 69 | 74 | 77.5 | 86 | 100 |
| Net weight(kg) | 20.5 | 65 | 39 | 40 | 48 | 65 | 70 | 73.5 | 82 | 96 |
| 20/40FT unit | 672/1428 | 335/675 | 240/475 |
|
| 140/460 |
|
|
| 140/260 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
