5kw-30kw Wind Turbine Generator for Home Use
| Price: |
US $ 5000-11999/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
5kw-30kw Wind Turbine Generator for Home UseANE wind turbine generator advantage1 Intelligent control
The main control center of 20kW/30kW pitch controlled wind turbine is an innovated intelligent electrical system, admitting the best wind turbine control technology and combing pitch controlled wind turbine characteristics. The hardware was chose by the best international supplier, running stable, strong anti-interference ability. The software adopts redundancy control strategy to ensure system running safe and reliable. System has strong extendibility; it can match with all kinds of famous brand inverter and remote monitor module. It meet client's requirement of one-stop service. 1.1 Intelligent protection
15 redundancy safety protection measurements: Yawing brake protection for power failure, such as over voltage, over current, over rotating speed, over temperature, low pressure and so on; sensor failure protection for voltage, current, rotating speed, wind speed, wind direction; system failure emergency brake protection for yawing and pitch control failure; protection for "inverter is out of net"; stop at over wind speed; restart function as low wind speed and so on. All of these measurements ensure wind turbine running safety and reliable. 1.2 Remote monitor

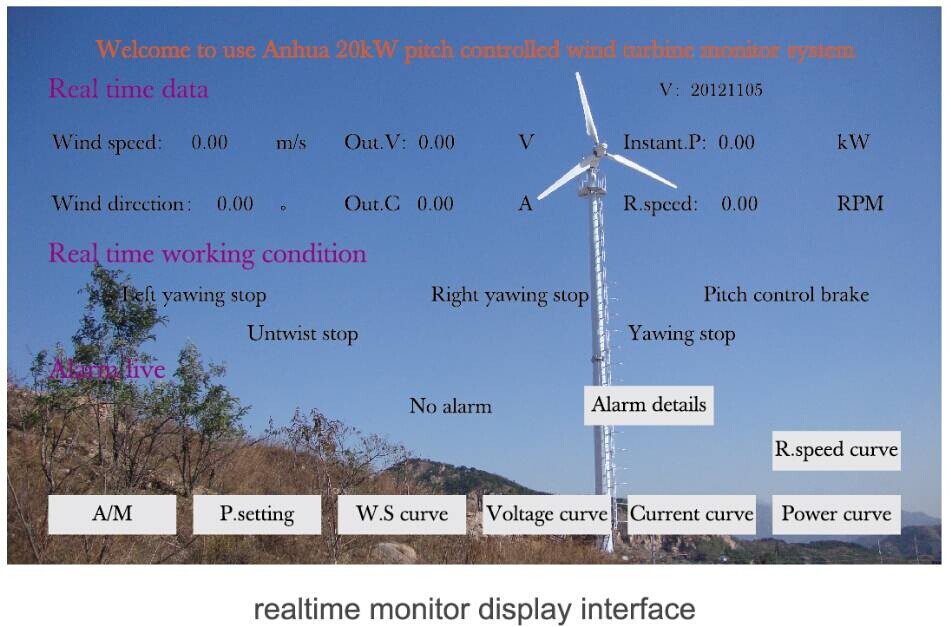

User can monitor the wind turbine system by internet or mobile net at real time. User can learn wind turbine running station at first time.
1.3 Active yawing
Find wind direction automaticThe dogvane can inspect wind direction at real time then ensure wind turbine finding right wind direction intelligent. Finding wind intelligent strategy not only ensures the output power, but also avoids yawing parts abrades because of finding wind direction frequency. 1.4 Automatic untwisting
Double cable untwisting protection, ensures wind turbine's cable untwisting forever. 2 Leading centrifugal pitch controlled technology world-wide

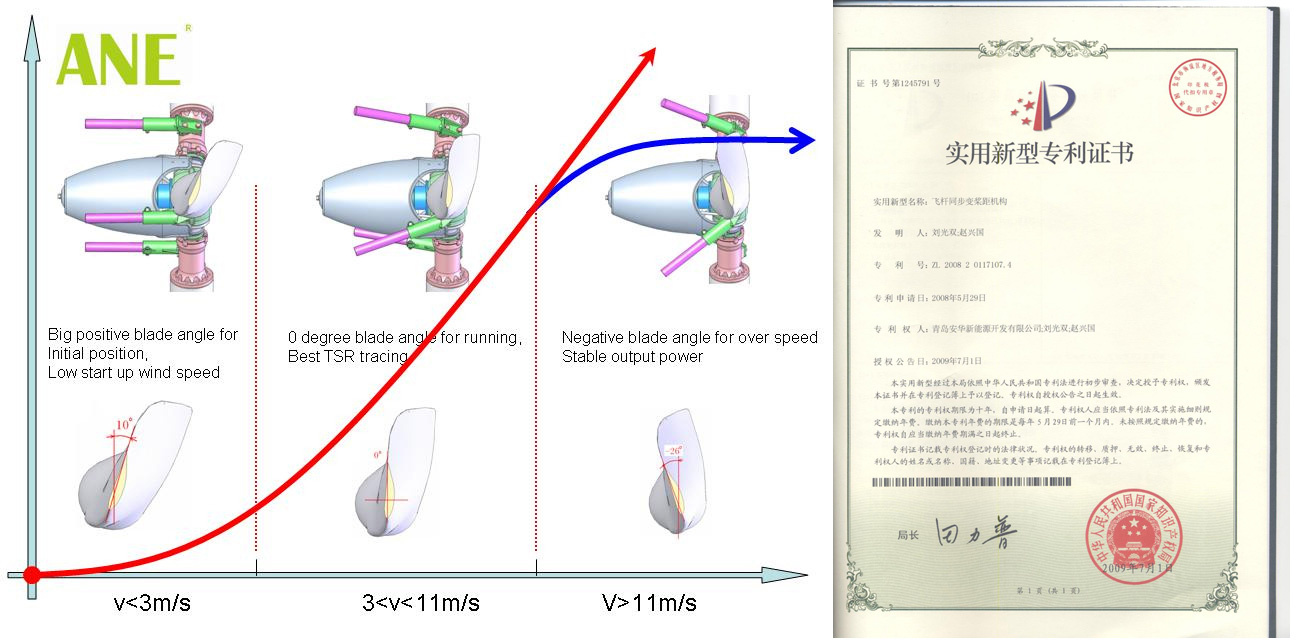

2.1 Leading technology
2.1.1 Exactly and softness regulation of pitch control
Information input source of pitch control is the wind rotor rotating speed, it make sure the response quick and regulate softness2.1.2 Long service life design
System adopts mechanical part, floating connection, full range of lubrication protection. Less system malfunctions and better environmental suitability.2.2 Generate 30% electricity more than normal wind turbine
2.2.1 Lower start up wind speed
Double degree pitch control mechanism ensures blade have an optimum startup degree. Wind rotor can be started with 2m/s wind speed.
2.2.2 Stable running when wind speed is higher than rated wind speed
The blade angle is minus value under pitch controlled when wind speed is over than rated wind speed. It makes system have a stable rated output power.
| AH-20kW Pitch Controlled Technical Parameters |
| Wind rotor diameter (m) | 9.2 |
| Blade material and quantity | Fiber glass reinforced * 3 |
| Rated power | 20kW |
| Rated wind speed (m/s) | 12 |
| Rated rotate speed (rpm) | 180 |
| Working wind speed (m/s) | 3-30 |
| Startup wind speed (m/s) | 2.5 |
| Survived wind speed (m/s) | 60 |
| Working voltage (v) | DC500V |
| Speed regulation method | Pitch controlled + Active yawing +electromagnet brake |
| Stop method | Pitch controlled brake +Active yawing |
| Generator style | Three phase, permanent magnet |
| Wind turbine weight (kg) | 985 |
| Prod Model: |
AH-20kW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
5kw-30kw Wind Turbine Generator for Home Use |
| Technology: |
Pitch Control |
| Brand: |
Ane |
| Rated Power: |
20kw |
| Wind Rotor Diameter: |
9.2m |
| Spec: |
Wind Turbine Geneartor |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Lift Force |
Qingdao Anhua New Energy Equipment Co., Ltd. is a national high and new tech enterprise which specializes in small and medium wind turbine design and manufacture. More than 30 years, the company dedicates to small and medium wind turbine whole system R&D and popularization and accumulates rich experience in design and construction.
ANE wind turbines adopt whole self-developed technology; Meanwhile, ANE possesses more than 10 patents such as pitch controlled system, automatic safety protection system, yawing, permanent magnet generator etc...Now, there are three series of products: Diffused-type wind turbine AH-400W; Yawing-size wind turbine AH-500W, AH-1kW, AH-1.5kW and AH-2kW; Pitch controlled wind turbine AH-5kW, AH-10kW and AH-30kW. Every series of products achieve self-protection and running smoothly and safely at gale condition and extending their service life. Thereinto, a series of pitch controlled wind turbines adopts mechnical pitch controlled system and automatic safety protection system, which is pioneered in China and this revolution leads to the whole small and medium wind turbine industry development in the field of pitch controlled technology. ANE becomes the industry leader in the small and medium wind turbine business.

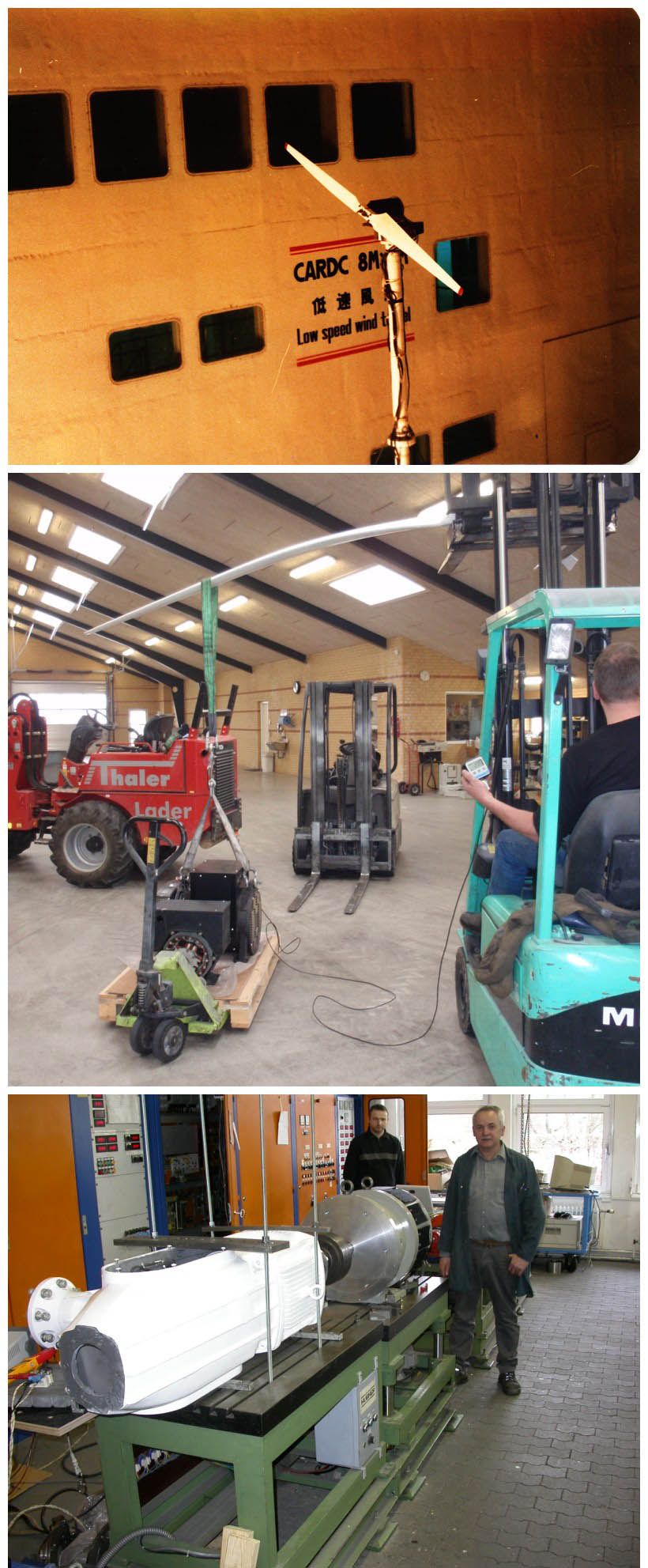

ANE factory covers an area of 5, 000 square meters and occupies the most advanced and self-developed generator test platform, wind rotor balance debug system, pitch controlled system test platform and other various wind turbine specialized detection equipments; Meanwhile, ANE has own test field for small and medium wind turbine. ANE engages well-known wind power expert Professor Zhao Fusheng as General Engineer and meanwhile owns s small and medium wind turbine professional technical team who have strong R&D capability.
ANE has already passed ISO900L Quality Management System and the products have passed CE and EN61400-2 certificate. At home, ANE has cooperated with China Mobile, China Unicom, GUO DIAN Group, State Grid Corporation, Goldwind Science&Technology, BAO LI Group, Da Gang Oild Field, RUI HAO Group, BEI LIANG Group and otherlarge-scale businesses or enterprises, and provides complete system solution for them, and promotes small and medium wind turbine applications in domestic market. Abroad, the products have been passed installation certificate in Germany, Denmark and other countries that are famous for their advanced wind power technology; Meanwhile, bulk products are also purchased in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia and other countries and regions, and have been high praised by the consumers across the world
Qingdao Anhua New Energy Equipment Co., Ltd. is devoting to wind power enterprise development all the time and building the world first-class brand.
