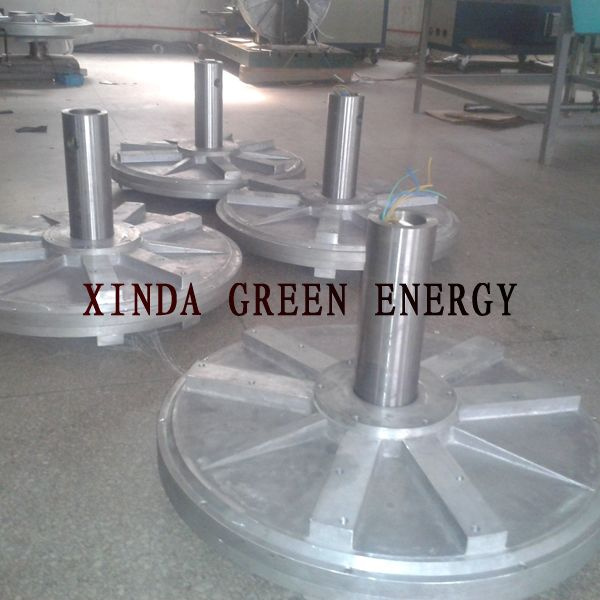

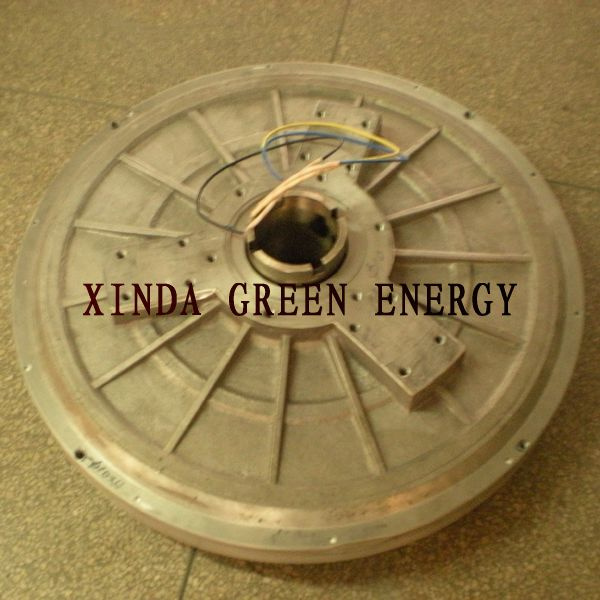

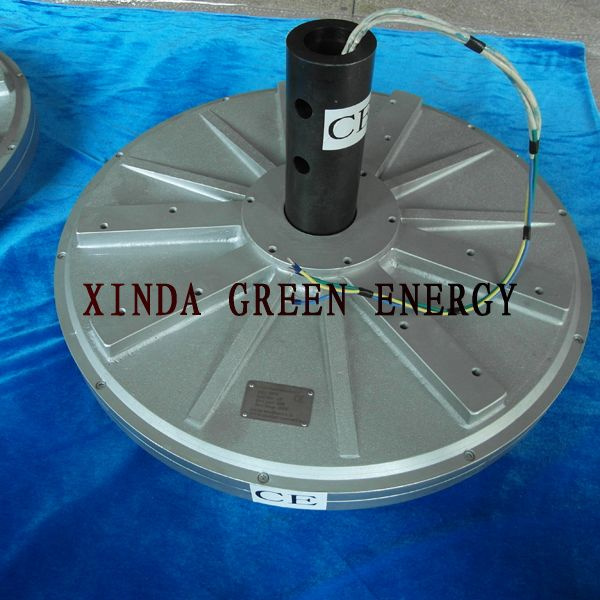

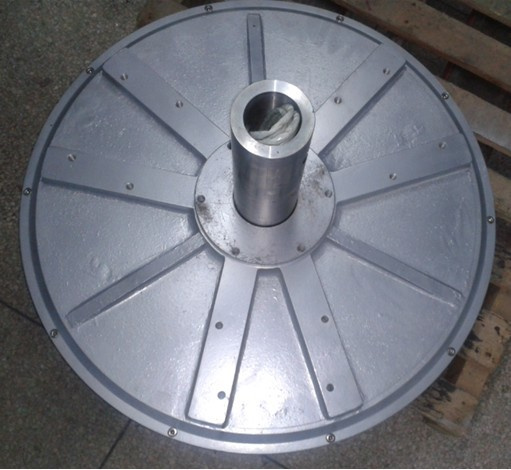

5kw 100rpm Low Speed Dis Generator

5kw 100rpm Low Speed Dis Generator
Price: US $ 500-50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure, High efficiency etc.

Inner or outer rotor all available, and we can do customize generator according customer request

Magnetic levitation, Coreless, anhysteresis, slotless, have low starting torque.
No iron loss, have high efficiency over 98%
Adopt unique coreless precision winding technology design precision coil
Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.
Low speed direct driving, no torque fluctuations
Compact structure, high ratio of power to volume
No iron loss, low calorific value, small temperature rise
Simple structure, easy to install
The brushless structure, free maintenance

RANGE OF APPLICATION
5-10kw vertical axis wind turbine; Gasoline generators; Hydroelectric generator

NO.PARAMETERUNITSDATA
1Rated powerKW5
2Rated speedRPM100
3Rated voltageV380VAC
4RatedCurrentA7.6
6Efficiency
>85%
7Resistance (Line-Line)Ω-
8Winding type
Y
9Insulation Resistance
100Mohm Min(500V DC)
10Leakage level
<5 ma
11Start torqueN/M<0.5
12Phase
Three phase
13Structure
outer rotor
14Stator
coreless
15Rotor
Permanent magnet type (outer rotor)
16Gen. Diametermm765
17Gen. Lengthmm406
18Gen. Weightkg165
19Shaft. Diametermm98
20Housing Material
Aluminum ( Alloy )
21Shaft Material
Steel
Prod Model: XD-PMG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: Customize
Shaft: Customize
Phase: Three Phase
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
