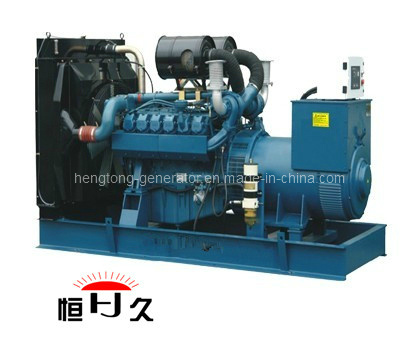

550kw Electric Generator

550kw Electric Generator
Price: US $ 56500.00-59200.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Our products have got CE, ISO, CQC. Hengtong has professional sales and after-sales service team for domestic and overseas markets.

The components of the genset:
(1) Cummins Diesel Engine; (2)Hengjiu Stamford Alternator; (3) Control Panel

Technical parameters of diesel generator sets:

Generator Set:
Generator Model: GF550C
Prime Power(KW): 550KW
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 900A
Dimension (L× W× H) (mm): 3500*1500*2000mm
Genset weight (KG): 5500KG

Diesel Engine:
Brand: Cummins
Type: KTAA19-G7
Power(KW): 610KW
Number of Cylinders: 6
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 159*159mm
Displacement(L): 18.9L
Compression Ratio: 13.9: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: 121L/H
Starting Method: 24V Electrical starting

Alternator:
Brand: Hengjiu Stamford Brushless
Model: HJI550
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 690kVA
Rated Power(KW): 550KW
Connecting Type: 3 Phase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%

NOTES. Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

The parameters listed above are for reference only and should not be taken as the basis for orders.

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.

Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Control System:

Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Optional AST & ATS Control System:

AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
 Parameters of Hengjiu Cummins Diesel Generator Set
Type of set Parameters of set(400V-3-phase4-line 50Hz COSΦ0.8) Parameters of engine(1500RPM 24V Electric start)
Powerof output(KW/KVA) Rated current(A) Weight of set(Kg) Dimensions of set(mm) Type Power(KW) Numbers Bore × stroke (mm) Compression ratio Air discharge(L) Consumption of fuel(100%load g/kwh)
Main Standby Length Width Height
GF20C 20/25 22/27.5 36 560 1600 720 1300 4B3.9-G1 24 4 102*120 16.5:1 3.9 6.3
GF30C 30/37.5 33/41.25 54 650 1600 720 1300 4BT3.9-G1 36 4 102*120 16.5:1 3.9 9.3
GF50C / 50/62.5 90 690 1750 750 1300 4BTA3.9-G2 50 4 102*120 16.5:1 3.9 12.6
GF80C 80/100 88/110 144 1100 2150 850 1300 6BT5.9-G1 92 6 102*120 17.5:1 5.1 20.5
GF100C 100/125 110/137.5 180 1200 2250 820 1350 6BTA5.9-G2 110 6 102*120 17.5:1 5.1 24
GF120C / 120/150 216 1350 2300 850 1400 6BTAA5.9-G2 120 6 102*120 17.5:1 5.9 27.4
GF150C 150/187.5 160/206 270 1700 2400 900 1600 6CTA8.3-G2 163 6 105*120 17.3:1 8.3 37.5
GF180C / 180/225 324 1950 2500 1000 1600 6CTAA8.3-G2 183 6 114*135 17.3:1 8.3 40
GF200C 200/250 220/275 360 2100 2600 950 1650 6LTAA8.9-G2 220 6 114*135 16.6:1 8.9 59
GF200C 200/250 220/275 360 2400 2800 1000 1750 NT855-GA 231/254 6 114*135 15.0:1 14 57
GF250C 250/312.5 275/344 450 2700 3100 1100 1650 NTA855-G1A 261/291 6 125*147 14.0:1 14 67.5
GF250C 250/312.5 275/344 450 2700 3100 1100 1650 MTAA11-G2 282/310 6 140*152 15.0:1 10.8 67.5
GF300C / 300/375 540 2900 3100 1100 1850 NTA855-G2A 313/343 6 140*152 14.0:1 14 72
GF300C / 300/375 540 2900 3100 1100 1850 NTAA855-G4 317/351 6 140*152 14.0:1 14 76.3
GF360C / 360/450 648 3300 3300 1160 1850 NTAA855-G7A 407 6 159*159 14.0:1 18.9 87
GF360C 360/450 400/500 648 4100 3400 1360 2000 KTA19-G3 403/448 6 159*159 14.0:1 18.9 94
GF400C 400/500 440/550 720 4200 3400 1360 2000 KTA19-G4 448/504 6 159*159 13.9:1 18.9 105
GF500C / 500/625 900 4500 3600 1570 2050 KTAA19-G5 555 6 159*159 13.9:1 18.9 113
GF500C 500/625 550/687.5 900 5500 3500 1500 2000 KTAA19-G7 610 6 159*159 13.9:1 18.9 121
GF520C 520/650 570/712.5 936 4650 3750 1600 2100 QSKTAA19-G3 574/634 6 159*159 15.0:1 18.9 143
GF600C 600/750 660/825 1080 8900 4600 1900 2350 KTA38-G2 664/731 12 159*159 15.5:1 37.8 153
GF700C / 700/875 1260 7000 4550 2060 2430 KTA38-G2B 711/789 12 159*159 14.5:1 37.8 170
GF800C / 800/1000 1440 7150 4550 2060 2430 KTA38-G2A 813/895 12 159*159 14.5:1 37.8 153
GF800C 800/1000 880/1100 1440 7500 4800 2060 2430 KTA38-G5 880/970 12 159*159 13.9:1 37.8 203
GF1000C / 1000/1250 1800 8000 5000 2200 2500 KTA38-G9 1089 12 159*159 13.9:1 37.8 221
GF1000C 1000/1250 1100/1375 1800 10000 5500 2200 2500 KTA50-G3 1097/1227 16 159*159 13.9:1 50.3 258
The parameters listed above are for reference only and should not be taken as the basis for orders

Prod Model: GF550C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power (Kw): 550kw
Standby Power Of Output(kVA): 687.5kVA
Rated Current(a): 900A
Weight Of Set(Kg): 5500kg
Dimensions Of Set(Mm): 3500*1500*2000mm
Type Of Engine: Ktaa19-G7
Electric: 24V Electric Start
Air Discharge(L): 18.9L
Brand Of Foreign Engine: Cummins Daewoo Volvo Deutz Styer Ect.
Brand Of Domestic Engine: Jichai Paou Shangchai Wudong Weichai etc.
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Six Stroke
Installation Method: Fixed
Type: Basic or Ast or Ats
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
