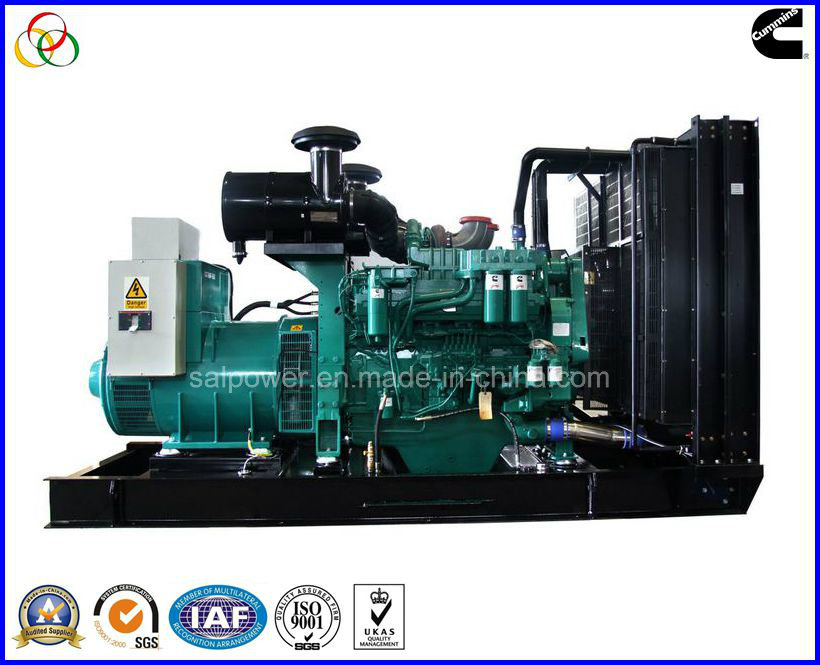

550kw/687kVA Electric Alternator Diesel Fuel Power Generator with Cummins Engine (Ktaa19-G6a)

Name: 550kw/687kVA Electric Alternator Diesel Fuel Power Generator with Cummins Engine (Ktaa19-G6a)
Brand: aboutgenerator.com
SKU: 759772055
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 50475-50584/Set
Trade Terms:	FOB,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Guangdong Salpower Equipment Co., Ltd.

Showroom Product Company Profile

550KW/687KVA electric alternator diesel fuel power Generator with Cummins engine( KTAA19-G6A)

Manufacture			Guangdong Salpower Equipment CO,.LTD
Genset Model			SALC- 440
Prime Power (50Hz/60Hz) 500KW/625KVA Standby Power (50Hz/60Hz) 550KW/687KVA Rated current (Prime) 900A
Size and Weight
Open Type Overall Size:		3500mm1500mm2000mm
Weight:		3650kg
Standard Configuration
Engine(DCEC Cummins( KTAA19-G6A)
Radiator 50OC max, fans are driven by belt, with safety guard
24V charge alternator
Alternator: single bearing alternator IP23, insulation class H/H
Dry type air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Two12V batteries, rack and cable
Muffler and Bellows and other accessories
User manual product certification
Technical Parameters
Gen-set
Steady voltage adjustment rate (%)			≤±1
Voltage fluctuation rate (%)			≤±0.5
Transient voltage adjustment rate (%)			+20~-15
Voltage stability time (s)			≤1
Steady frequency adjustment time (%)			≤±1
Frequency fluctuation rate (%)			≤±0.5
Transient frequency adjustment rate(%)			+10~-7
Frequency stability time (s)			≤3
Waveform distortion rate (%)			≤5
Altitude (m)			≤1000
Relative air humidity (%)			≤90
Engine
Brand			Cummins
Origin			Chongqing
Model			KTAA19-G6A
Primary\Standby power (KVA)			625/687
Type			4Stroke,In-LineType, 6 Cylinder
Start model			24VDC electric start
Bore X Stroke (mm)			159x159
Type of Governor			Electric(E)
Compression Ratio			17.5
Displacement (L)			18.9
Fuel consumption @100% load			196g/kw. h
Cooling system	Cooling style		Closed circulating water cooling
	Oil capacity (L)		50

AC Alternator
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Engga,
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control System
* Standard matching brands:Smartgen,Deep sea and ComAp
* LED/Graphics/meters indicate unit running parameters
* High water temperature, low oil pressure, low speed, overspeed and others alarm and protected
* Automatically start switching when the main power service fails(optional)
* Multi-gensets with automatic parallel connection control module(optional)
* Functions of remote control interface, remote control, remote test and remote signal(optional).
Product description:
Genset with ISO9001/ISO14001,with Cummins engine NTA19-G3 equipped with Alternator Stanford/ ENGGA/ Marathon, the control panel is /Deep sea/ Smartgen /ComAp. The frequency is 50HZ, the rated speed is 1500rpm/min or 60HZ/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.

Additional Info.

Packing:Plywood Case, Customized
Origin:HuBei / GuangDong province,China
Certificates:CE, ISO9001:2008, SGS
HS Code:8502120000
Production Capacity:300sets/Month

Instruction and Quality warranty
Available in the following voltages:415/240,380/220
Prime Power (PRP):Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Quality warranty:Guangdong Salpower Equipment Co.,LTD provides a full line of brand new and high quality products. Each and every unit is strictly tested.
Warranty is according to our standard conditions:12 months, counted on the day sold to the first buyer; One year after installation; 1000 running hours (accumulated); subject to the earlier one

Genset Model	prime/standby power		Cummins engine				Fuel consumption (L/h)	Genset size (mm)			Weight (Kg)
Genset Model	KW	KVA	Engine model	Cylinder(qty. )	Bore*Stroke (mm)	Displacement(L)	Fuel consumption (L/h)	L	W	H
SAL-20	20/22	25/27	4B3.9-G2	4L	102*120	3.9	5.2	1750	695	1100	670
SAL-30	30/33	37/41	4BT3.9-G2	4L	102*120	3.9	7	1750	695	1100	700
SAL-45	45/50	56/63	4BTA3.9-G2	4L	102*120	3.9	10	2060	710	1300	850
SAL-80	80/85	100/106	6BT5.9-G2	6L	102*120	5.9	21	2120	790	1323	1000
SAL-90	90/100	112/125	6BTA 5.9-G2	6L	102*120	5.9	31	2120	790	1323	1105
SAL-105	105/114	130/142	6BTAA5.9-G2	6L	114*135	5.9	33	2250	840	1430	1150
SAL-145	145/160	181/200	6CTA8.3-G2	6L	114*135	8.3	34	2800	850	1433	1450
SAL-173	173/190	216/238	6CTAA8.3-G2	6L	140*135	8.3	43	2900	850	14654	1650
SAL-200	200/220	250/275	6LTAA8.9-G2	6L	140*152	8.9	55	2900	1000	1454	1800
SAL-200	200/220	250/275	MTA11-G2A	6L	125*147	11	54.7	2950	1100	1600	2800
SAL-250	250/280	312/350	MTAA11-G3	6L	125*147	11	61.3	3250	1100	1720	2940
SAL-200	200/220	250/270	NT855-GA	6L	140*152	14	53.4	3000	1100	1650	3350
SAL-220	220/250	275/312	NTA855-G1A	6L	140*152	14	61.3	3000	1100	1650	3400
SAL-250	250/280	312/350	NTA855-G1B	6L	140*152	14	71.4	3000	1100	1650	3400
SAL-275	275/300	344/375	NTA855-G2A	6L	140*152	14	71.9	3000	1100	1650	3480
SAL-280	280/310	350/388	NTA855-G4	6L	140*152	14	75.3	3000	1100	1650	3520
SAL-300	300/330	375/413	NTAA855-G7	6L	140*152	14	85.4	3300	1150	1650	3600
SAL-320	320/360	400/450	NTAA855-G7A	6L	140*152	14	85.4	3300	1150	1650	3870
SAL-360	360/400	450/500	KTA19-G3	6L	159*159	18.9	97	3600	1355	1910	3970
SAL-400	400/450	500/563	KTA19-G4	6L	159*159	18.9	107	3600	1355	1910	4100
SAL-420	420/500	525/625	KTAA19-G5	6L	159*159	18.9	113	3720	1640	2040	4400
SAL-500	500/550	625/688	KTAA19-G6A	6L	159*159	18.9	125	3720	1640	2040	4450
SAL-520	520/570	650/713	QSKTAA19-G3	6L	159*159	19	143	4345	1710	2300	6000
SAL-600	600/660	750/825	KTA38-G2	12V	159*159	37.8	167	4530	1710	2300	6950
SAL-640	640/710	800/888	KTA38-G2B	12V	159*159	38	181	4530	1710	2300	7000
SAL-720	720/800	900/ 1000	KTA38-G2A	12V	159*159	38	191	4530	2060	2300	7430
SAL-800	800/880	1000/ 1100	KTA38-G5	12V	159*159	38	209	4530	2060	2300	7550
SAL-900	900/1000	1125/ 1250	KTA38-G9	12V	159*159	38	214	4660	2090	2320	7900
SAL-1000	1000/1100	1250/ 1375	KTAA38-G9A	12V	159*159	38	274	4660	2090	2320	7900
SAL-1000	1000/1100	1250/ 1375	KTA50-G3	16V	159*159	50.3	254	5650	2100	2350	9800
SAL-1100	1100/1300	1375/ 1625	KTA50-G8	16V	159*159	50.3	289	5800	2100	2400	10000

Prod Model:	SALC-550(12)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cylinder Block:	Cast Iron, 6 Cylinder
Starting Voltage:	24 Volt, Negative Ground
Fuel System:	Direct Injection
Fuel Filter:	Spin-on Fuel Filters with Water Separator
Lube Oil Filter Type(S):	Spin-on Full Flow Filter
Cooling System Design:	Jacket Water After Cooled
Coolant Ratio:	50% Ethylene Glycol; 50% Water
Type:	Self-Starting Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase
Speed:	1500 Rpm /1800rpm
