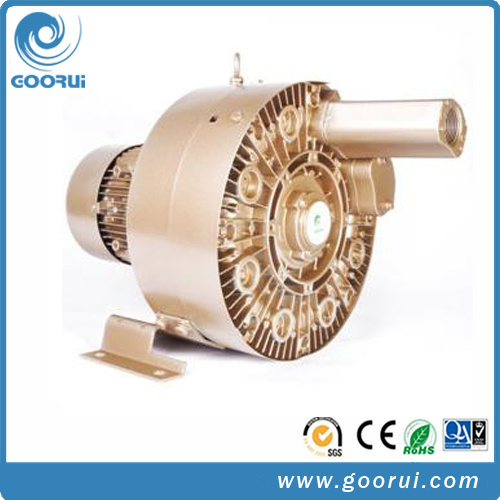

Goorui Side Channel Blower Material:
Goorui Side Channel Blower adopts ADC12 aluminium alloy materials(Benz wheel) and high precision high temperature Sweden SKF bearings.
Goorui Side Channel Blowers' features:
Almost completely maintenance free
Have a wide range of performance
Robust yet light weight
Reliability - Built to last
50/60 Hz Voltage range motors
Low level of noise
Easy installation
No vibration, complete dynamic stability
Pulsation free discharge
Simple and minimal maintenance
Higher Pressure Ratios
Cooler Running Bearings
Longer Grease Life
100% Oil Free Air
Suitable to environment protection
GOORUI SIDE CHANNEL BLOWER APPLICATIONS:
Drying out buildings - Ventilating/drying out buildings after flood
Dental vacuum
Filling Bags and bottles
Filling Silos
Fishpond/breeding pond ventilation - Enriching water with oxygen
Food processing - Degasification
Gas analysis
Industrial vacuum cleaners, central extraction systems
Lifting and holding parts using vacuum suction
Laser printers - Powder dusting and extraction
Letter sorting, enveloping
Packaging Machines
Paper Industry - Sheet separation, turning, transport, fixation and drying
Pneumatic Conveying
Soil Treatment - Extracting ground level air
Swimming pool technology/spas - Blowing air into water tanks
Textile machines - Extracting waste thread and fluff
Thermoforming
Ventilation of sewage treatment plants - Enriching water with oxygen
Why Choose Goorui Side Channel Blower:
10 Years experience in vacuum field and solutions.
We have 36 core technology patents.
All our products adopt SKF & NSK bearing.
Our product can heat-resistant up to 130`C.
Power: 150W to 25KW.
Airflow up to 2400m3/H.
Pressure up to 1000mbar.
Vacuum up to -730mbar
CE, SGS, RoHS, ISO9001:2008certified
| Model | Frequency | Power | Voltage | Current | Max. Air Flow | Max.Static Pressure | Max.Static Pressure | Noise | Dimensions(L*W*H) | Weight |
| In stock | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | mm | Kg |
| GHBG 002 34 2R3 | 50 | 1.5 | 200-240/345-415Y | 7.5/4.3Y | 65 | -440 | 540 | 59 | 325*495*345 | 30 |
| 60 | 1.75 | 220-275/380-480Y | 7.6/4.4Y | 76 | -560 | 600 | 63 | 30 |
Dongguan Foersheng Mechanical &Electrical Technology Company Limited (FLS) is one of the world's leading side channel blower manufacturer with over 10 years experience in blower and motors R&D, producing, marketing and after sales service.
FLS has own a manufactory center in Dongguan City and sales subsidiaries in 4 cities, Dongguan, Shanghai, Chengdu and Qingdao. Its sales network covers over 20 countries worldwide, including Asia, Europe, Africa and American, etc.
Our service includes
1. Supply & manufacture of side channel blower (ring blower/regenerative blower), air flow capabilities range from 60 to 2550 m3/h, vacuum capabilities 60 to 1000mbar. Supply & manufacture of explosion proof blowers and bare shaft (belt drive style ) blower.
2. On site performance testing of side channel blowers.
3. Also supply accessories (silencer, pressure relief valve, filter, filter barrels), frequency inventor, liquid ring vacuum pump. etc.
Our Blower features are:
1.100% oil free air delivery
2. No routine maintenance
3. Quiet operation, low noise
4. Versatile /ATEX /IE motor options
5. CE, UL, CCC, RoHS, ISO9001
6. Insulation class: F, Protection class: IP54
Industries application:
1. Agriculture(Fish pond and aeration tanks)
2. Food and vegetable processing
3. Dental cart and dental vacuum
4. Air knives blown-off / Labeling/Drying
5. Air knives blown-off/ Bottle blow mould / Extruder Degassing/Pneumatic conveying/ Thermoforming)
6. Printing/CNC table material holding
7. Paper and pulp/ paper converting
8. Textile industry
9. Pneumatic conveying/ Biogas conveying /material handling
10. Water treatment/Sewage treatment
11. Woodworking(CNC Routing/bulk handling)
