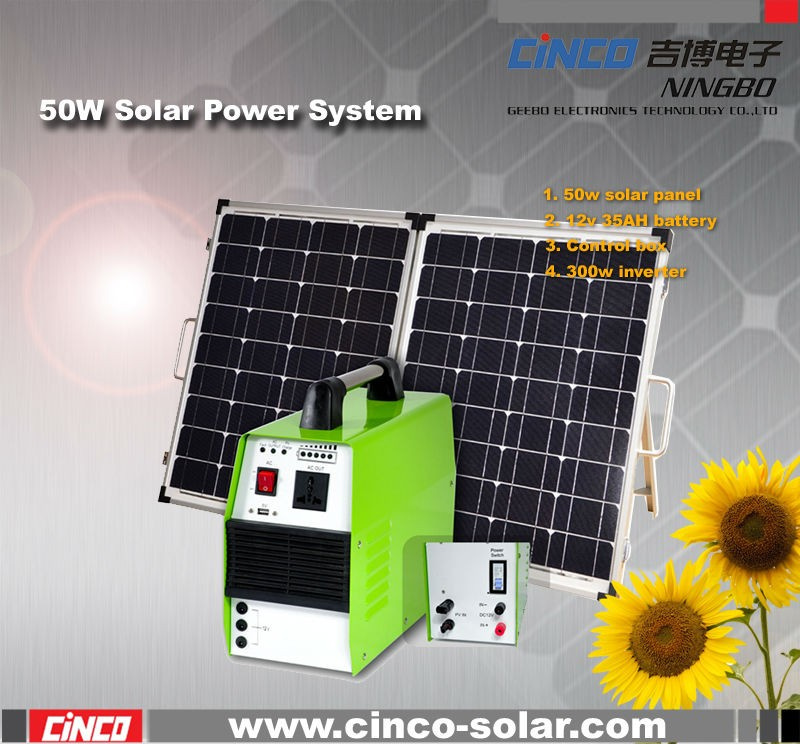

50W Solar Home System Features
Digital indication of working model
Easy operation Smart control
Overloading protection
Short cricuit protection
Reverse discharge protection
Reverse polarity connection protection
Over discharge protection
Over charge protection
Suitable for household lighting TV, fan radio and computer.
Not suitable for Capacitive load, as electric motor, refrigerator, air conditioning, Microwave and ovens.
Solar panels and public grid, two ways of charge to battery
The solar home system can be mounted both indoors and outdoors on walls
50W Solar Home System Specification
Model CNCH-50W
Solar panel power 50WP
Solar charge controller 12V10A
Solar inverter 300W Modified Wave Sine Inverter
Battery capacity 12V 38AH Deep Cycle Battery
Output voltage/frequency 110VAC/220VAC 50/60Hz
Inverter conversion efficiency 85%
Volume 0.08m3
Weight 18.0Kg
50W Solar Power System Load Item
2 Energy Saver Bulbs
1 Colour TV
|
Model |
CNCH-50W |
|
Specifications |
|
Rated Output Power |
300W |
|
Solar Panel Power |
18V 50W(50W*1) |
|
Solar Panel Charging Time |
5.5 hours effective sunlight |
|
Battery Capacity |
12V 35Ah lead acid battery |
|
AC Output |
AC 110V/220V/230V 50/60Hz |
|
AC Output Waveform |
Pure sine wave |
|
AC Output Socket |
English/German/French/Australian/American/Universal |
|
Output Interface |
3*12V DC output & 1*5V USB |
|
Peak Inverter Efficiency |
92% |
|
Overload Protection |
Yes |
|
Under-voltage Alarm |
Yes |
|
Overheat Protection |
Yes |
|
Short-circuit Protection |
Yes |
|
Battery Power Indicator |
Yes |
|
External Battery Charger |
Yes |
|
External Battery |
Yes(12V lead acid) |
|
External Battery Capacity |
Based on actual needs and to be prepared by customer,
the capacity of charging is more than or equivalent to the sum capacity of
both our product and external battery. |
|
Accessories(Optional) |
PV connectors 2 pairs |
|
External battery cables 2pcs |
|
Certificate |
CE & RoHS |
|
Mechanical Data |
|
Dimensions of System Box(mm) |
L375*W150*H320 |
|
Net Weight of System Box(kg) |
15.90 |
|
Appearance Color |
White + Green |
|
Dimensions of Solar Panel(mm) |
L640*W530*H30 × 2 |
|
Net Weight of Solar Panel(kg) |
10.50 |
|
Dimensions of Battery(mm) |
L195*W130*H156 (Total H179) |
|
Net Weight of Battery(kg) |
10.50 |
