Home Generator Products 50kw Wind Turbine Generator Three Phase Output

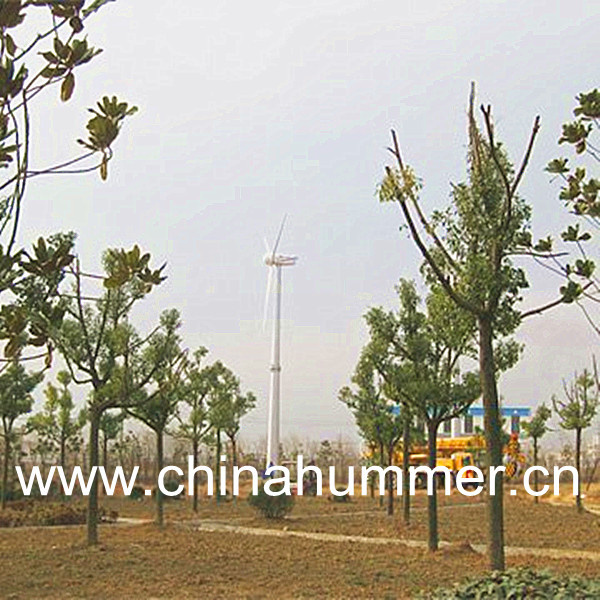

50kw Wind Turbine Generator Three Phase Output

50kw Wind Turbine Generator Three Phase Output
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Features of 50kW Wind Turbine:

1) Small size, light weight, high reliability and efficiency.
2) High quality by adoption of NSK bearings, Siemens CPU etc
3) Easy control by PLC
4) High reliability by triple brake system for over wind speed
5) SCF supercritical generator technology
6) Gold medalist at 37th Eureka Worldwide Invention Exposition in Brussels

Application of 50kW wind turbine:

1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
Model No.H16.5-50KW
Configuration3 Blades, Horizontal axis, Upwind
Rotor Diameter16.5m
 Direction of RotationClockwise looking upwind
Blade MaterialFiberglass reinforced composite
Rated Power50 kW
Battery Bank Voltage400 Vdc
System Output Voltage380 Vac three phase
Cut-in Wind Speed3m/s
Rated rotating rate70 r/min
Working Wind Speed3-25 m/s
Survival Wind Speed50m/s
AlternatorPermanent magnet alternator, SCF technology
Alternator Weight2000kg
Generator Efficiency>0.90
Energy monitoring & User controlSiemens PLC controller with touch screen
GearboxNone, Direct drive with front generator design
Over Speed RegulationAuto Yawing & Hydraulic Braking
Shutting Down MethodManual & Automatic electromagnetism Braking
 Warranty 2 years

Prod Model: 50KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Permanent Magnet Generator
Certificate: CE, BV, ISO
Rated Power: 50000W
Max Power: 50000W
Working Wind Speed: 3-25m/S
Over Speed Control: Hydraulic Brake, Yawing, Pitch Control
Shut Down Method: Auto or Manual
Blade Material: Fiber Glass
Output Voltage: 380VAC, Three Phase
Charge Voltage: 400V
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
