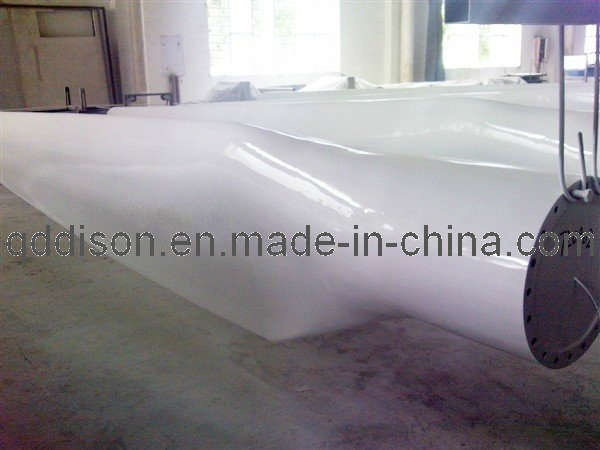

50kw Wind Turbine Blade (WT152-50KW)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1set |
| Pay Type: |
T/T |
Type: WT152-50KW
Rated Power: 50KW
Shaft Power: 55KW
Rated Wind Speed: 10.5m/s
Cut-in Wind speed: 3m/s
Cut-out Wind speed: 25m/s
Max Cp: 0.45
Rotor Diameter: 15.2m
Blade Length: 7.2m
Tip Chord: 289mm
Max Chord: 979mm
Material: FRP
Weight(Kg/PCS): 208
Direction: Clockwise
Orientation: Upwind
Configuration: Horizontal
Survival Speed: 60m/s
Standard: AWEA/IEC
Design Life: 20years
Bolt Circle Dia: 434mm
|
Rated Power |
Type |
Length |
Diameter |
Weight |
Rated Wind Speed |
Cut-in Wind Speed |
Cut-out Wind Speed |
Survival Wind Speed |
Max Chord |
Tip Chord |
Max Cp |
Design Life |
Material |
|
1KW-1.5KW |
WT32P |
1.55m |
3.2m |
3.5KG |
8.5/10m/s |
3m/s |
25m/s |
40m/s |
230mm |
55mm |
0.48 |
20 years |
GFRP |
|
2KW-3KW |
WT40P |
1.93m |
4.0m |
6KG |
10/11 m/s |
3m/s |
25m/s |
40m/s |
252mm |
76mm |
0.48 |
20 years |
GFRP |
|
WT45WF |
1.98m |
4.5m |
10KG |
7/10 m/s |
2m/s |
25m/s |
52.5m/s |
280mm |
30mm |
0.48 |
20 years |
GFRP |
|
3KW-5KW |
WT50P |
2.49m |
5.0m |
13KG |
9/11 m/s |
3m/s |
25m/s |
40m/s |
330mm |
80mm |
0.48 |
20 years |
GFRP |
|
WT58WF |
2.6m |
5.8m |
14kg |
8/10 m/s |
2m/s |
25m/s |
52.5m/s |
338mm |
75mm |
0.48 |
20 years |
GFRP |
|
5KW |
WT64P |
3.1m |
6.4m |
19.5KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
360mm |
255mm |
0.48 |
20 years |
GFRP |
|
WT55P stalled |
2.6m |
5.5m |
7.5kg |
11m/s |
3m/s |
25m/s |
40m/s |
300mm |
100mm |
0.48 |
20 years |
GFRP |
|
WT64W |
2.95m |
6.4m |
20KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
350mm |
50mm |
0.48 |
20 years |
GFRP |
|
10KW |
WT80P |
3.9m |
8.0m |
25KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
397mm |
250mm |
0.48 |
20 years |
GFRP |
|
WT80W |
3.5m |
8.0m |
32KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
400mm |
130mm |
0.48 |
20 years |
GFRP |
|
20KW |
WT100P |
4.79m |
10.0m |
50KG |
11m/s |
3m/s |
25m/s |
52.5m/s |
470mm |
270mm |
0.48 |
20 years |
GFRP |
|
WT100 |
4.82m |
10.0m |
72KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
580mm |
160mm |
0.48 |
20 years |
GFRP |
|
30KW |
WT120 |
5.7m |
12.0m |
112KG |
10m/s |
3m/s |
25m/s |
52.5m/s |
783mm |
230mm |
0.48 |
20 years |
GFRP |
|
50KW |
WT152P |
7.43m |
15.2m |
170KG |
10.5m/s |
3m/s |
25m/s |
52.5m/s |
979mm |
289mm |
0.48 |
20 years |
GFRP |
|
WT152 |
7.2m |
15.2m |
208KG |
10.5m/s |
3m/s |
25m/s |
60m/s |
979mm |
289mm |
0.48 |
20 years |
GFRP |
|
WT165 |
7.85m |
16.5m |
250KG |
10m/s |
3m/s |
25m/s |
60m/s |
979mm |
289mm |
0.48 |
20 years |
GFRP |
|
WT180WF |
8.7m |
18.0m |
350kg |
10m/s |
3m/s |
25m/s |
60m/s |
1023mm |
130mm |
0.48 |
20 years |
GFRP |
|
100KW |
WT191 |
9.2m |
19.2m |
278kg |
12m/s |
3m/s |
25m/s |
60m/s |
1070mm |
120mm |
0.48 |
20 years |
GFRP |
|
200KW |
WT250 |
11.8m |
25.0m |
600kg |
13m/s |
3m/s |
25m/s |
60m/s |
1152mm |
|
0.48 |
20 years |
GFRP |
| Prod Model: |
WT152-50KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Lift Force |
| Rotating Shaft: |
Horizontal |
Qingdao Dison Machine Products Co., Ltd Is Located in Qingdao China, Which Is a Professional High-Tech Enterprise Engaged in Researching, Developing, Producing and Selling Wind Turbine Blades, Precision Castings, Handrail Fittings, Farm Fence, Galvanized Steel Barrier Since 2002. with High Quality Products, Good Price and Good Service. All The Products Are Exported to Europe Countries, America, Canada, Australia, New Zealand etc.
We Would Also Like to Take The Opportunity to Thank Our Many Friends and Customers for Their Support and Trust We Will Continue to Work Together for Many Years to Come.
And Also We Sincerely Hope We Can Have Your Opportunity to Cooperate with All New Friends and Customers in The Whole World, You Will Be Welcome at Anytime.
Products Range:
* Wind Turbine Blades
Blades for 1kw, 1.5kw, 2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 65kw, 100kw, 200KW. The blade length is from 1.55meters to 12. Ometers.
*Handrail Fittings
*Glass Clamp, Elbow, Bracket, Crossbar Holder, Sheet Adapter, End Cap, Cover, Glass Adapter
*Precision Castings
Machinery Part, Auto Part, Valve Part, Hardware, Construction
*Farm Fence
Livestock Equipments, Including Cattle Equipment, Horse Equipment, Sheep Equipment, Goat Equipment. Dog Kennel. All Equipment Hot DIP Galvanized to ISO 1461 Unless Otherwise Indicated.
*Galvanized Steel Barricades
Uses: Security and Safety, Traffic & Pedestrian Control, Special Events, Concerts, Stadiums/Arenas/Convention Centres, Fairs/Carnivals/Festivals, Parades/Rallies
*OEM Products
We Also Can Produce According to Customer's Design.
