TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
KVA | KW |
Single phase 230V 50Hz/1500r/min |
ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
ST-3 | 3 | 3 | 13 | 4 | 1500 |
ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
ST-20 | 20 | 20 | 87 | 4 | 1500 |
Three phase 400V 50Hz/1500r/min |
STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |

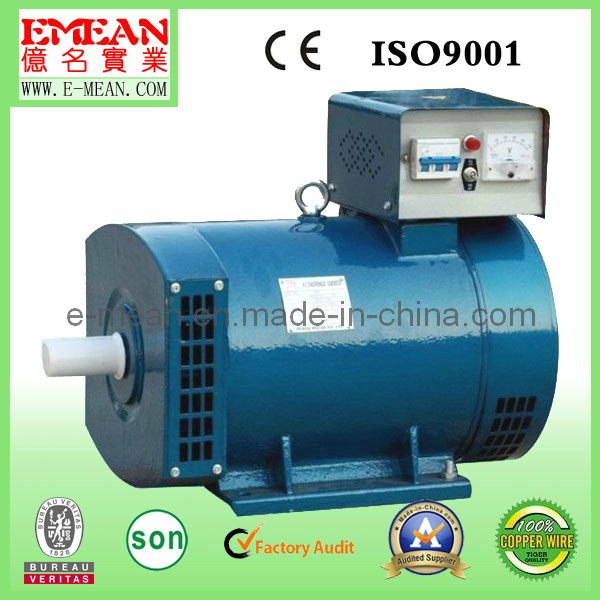

Place of Origin: Fujian, China (Mainland)
Brand Name: EMEAN
Model Number: STC-50
Type: Diesel generator, AC Synchronous generator Brush type
Phase No.: Three phase
Color: Blue according to customer requirements
PRODUCT FEATURES
(1)Easy to be connected with power network or other generators.
(2)Balanced rotor with two sealed ball bearings
(3)Convenient installation and maintenance with easy access to terminals, coupling bolts and Brush
(4)Full power and 100% copper design alternator
MECHANICAL FEATURES
Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 5 to 10 and 4%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of winding design or AVR.
Axis and Key
All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P. 1, G 2.5 two bearing alternator has a half-key testing balance
Terminal and control box
The alternator had 4 leads brought out to the terminals in the terminal box. Output 4 wire control box with voltage meter switch and indicator light
The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
