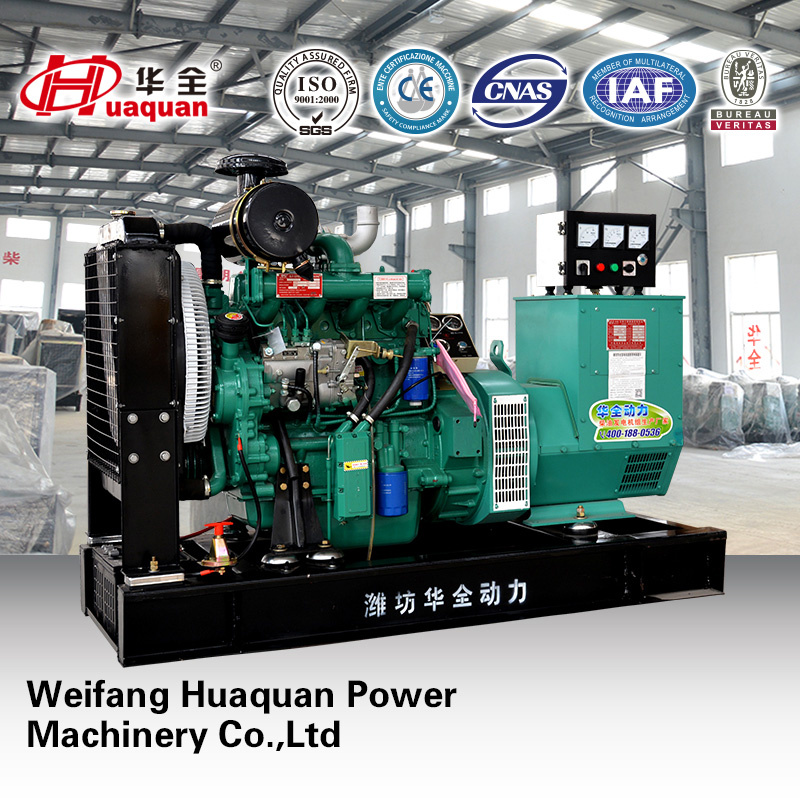

50kw Ricardo diesel engine generator.
Diesel generator set:
Model number: HQT50GF
Prime power: 50kW/62.5kVA
Standby power: 55kW/68.7kVA
Voltage: 110/220V 230/400V
Frequency: 50Hz/60Hz
Connection Type: Single phase, Three phase
Dimensions: 1, 800 X 720 X 1300mm
Weight: 850kg
Diesel Generator Features and Standard Congurations
1. Adopt The Chinese Top Quality Ricardo R4105ZD engine
2. Adopt Xingnuo Stanford Brushless Alternator
3. High efficiency Fuel pump, Low consumption.
4. Battery charge motor
5. Shock absorber system
6. After acidification under frame
7. Standard control panel
8. Daily use fuel tank
9. Start battery
10. Generator test report
11. Tools box
12. Manuals
Options
1. Soundproof or Weatherproof
2. LCD Show panel with Four protection system
3. ATS and AMF
4. Trailer
Diesel engine:
Model number: R4105ZD
Engine characters: Water-cooled, in-line, direct-injection and 4 strokes
Rated output: 56/70kVA
Standby power: 61.6kW/77kVA
Cylinder number: 4
Aspiration: Turbocharged aspiration
Bore X stroke: 105X 125mm
Compression ratio: 17: 1
Displacement: 4.33
Start type: 24V DC electric start
Rate speed: 1500/1800rpm
Rating fuel consumption: ≤ 228g/kW. H
Alternator:
Model number: XN50/Xingnuo Stanford
Continuous output: 50kW/62.5kVA
Voltage control: AVR
Excitation types: Brushless
Insulation: Class H
Power factor: 0.8
Weifang huaquanpower machinery Co., Ltd
We can supply 10kVA-1000kVA diesel generator set, including silent type, mobile sation, silent with ATS type and open type, the power is from 10kVA TO 1000kVA.
If you are interested in my product, please kindly contact me.
Engine brand | Ricardo | Alternator brand | Stamford |
Engine model | R4105ZD | Alternator model | XN50 |
Engine ouptout | 56kw | Alternator power | 50kw |
Cylinder No. | 4 | Protection grade | IP23 |
Cooling method | water cooled | Excitation mehtod | brushless |
Start method | electric starting | Insulation grade | H |
