MWM marine generator with highly efficient and environmentally friendly systems for energy production,With its understanding of the added value chain...
HND-MWM is one of the world's leading suppliers of highly efficient and environmentally friendly systems for energy production. The company, based in Mannheim, Germany, can draw on over 140 years' experience in the development and optimisation of combustion engines for natural gas, special gases and diesel. With its understanding of the added value chain, its engineering expertise and innovative ideas, MWM is a dependable partner who can develop and manufacture customised solutions for individual requirements.
Alternator
Engine can be coupled with SUNVIM, STAMFORD, LEORY SOMER, MARATHON alternator according to customers' demand.
Prime output power: 20kw-1600 kw(25kva-2000kva)
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.

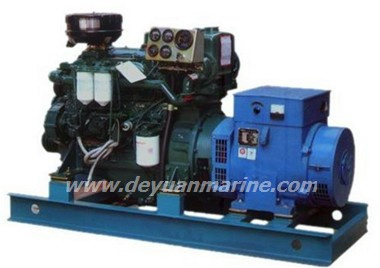

Marine generator set/Marine Generating Set are suitable for sea areas as draining water ship, tugboat, fishnet ship, freighter and digging-ship etc as electric power supply and can be used as Marine Main Generator set, Marine emergency Generator set or Harbor Generator set.
As to the certificates of marine generating set,will supply CCS as standard. And we also can supply ABS, BV, DNV,LRS Certificates for clients' option according to their special requirements, which can provide a reliable guarantee for your ship and equipments,Foundpower's marine power generator is one of your best choices in selecting auxiliary equipment for all kinds of ships.
EIAPP, Meet requirements of IMO for NOx Standard.
<
| Genset Specification | Engine Specification | Alternator Specification | Unit Appearance |
|
| Model | Rated Output | Fre/Volt
/ | Model | Power/Speed
/
KW/rpm | Cyl | Fuel
Consumption
(l/h) | Model | Dimension
L*W*H(mm) | Weight
(kgs) |
|
| KW | KVA | Hz/V | Marathon | Sunvim |
| CCFJ150JW | 150 | 187.5 | 50/400 | TBD234V6 | 186/1500 | V6 | 34.94 | MP-H-150-4 | SVH274 | 2430*1130*1850 | 2740 |
| CCFJ200JW | 200 | 250 | 50/400 | TBD234V8 | 249/1500 | V8 | 46.12 | MP-H-200-4 | SVH314 | 2775*1130*1850 | 3200 |
| CCFJ250JW | 250 | 313 | 50/400 | TBD234V8 | 273/1500 | V8 | 57.65 | MP-H-250-4 | SVH314 | 2775*1130*1850 | 3200 |
| CCFJ300JW | 300 | 375 | 50/400 | TBD234V8 | 300/1500 | V8 | 69.18 | MP-H-300-4 | SVH350 | 2775*1130*1850 | 3200 |
| CCFJ320JW | 320 | 400 | 50/400 | TBD234V12 | 373/1500 | V12 | 73.78 | MP-H-320-4 | SVH354 | 3680*1270*1850 | 4500 |
| CCFJ350JW | 350 | 437.5 | 50/400 | TBD604BL6 | 400/1500 | L6 | 81.12 | MP-H-350-4 | SVH354 | 3665*1350*2130 | 5260 |
| CCFJ400JW | 400 | 500 | 50/400 | TBD604BL6 | 450/1500 | L6 | 91.29 | MP-H-400-4 | SVH354 | 3725*1350*2130 | 5430 |
| CCFJ450JW | 450 | 562.5 | 50/400 | TBD604BL6 | 500/1500 | L6 | 104.29 | MP-H-450-4 | SVH354 | 3815*1350*2130 | 5430 |
| CCFJ500JW | 500 | 625 | 50/400 | TBD604BL6 | 550/1500 | L6 | 115.88 | MP-H-500-4 | SVH404 | 3815*1350*2130 | 5500 |
| CCFJ600JW | 600 | 750 | 50/400 | TBD620V8 | 834/1500 | V8 | 170.29 | MP-H-600-4 | SVH404 | 4200*1695*2275 | 7200 |
| CCFJ1000JW | 1000 | 1250 | 50/400 | TBD620V12 | 1251/1500 | V12 | 222.35 | MP-H-1000-4 | SVH454 | 4795*1695*2275 | 9500 |
| CCFJ1000JW | 1100 | 1375 | 50/400 | TBD620V12 | 1251/1500 | V12 | 244.59 | MP-H-1100-4 | SVH454 | 4795*1695*2275 | 9500 |
| CCFJ1500JW | 1500 | 1875 | 50/400 | TBD620V16 | 1668/1500 | V16 | 342.35 | MP-H-1500-4 | SVH454 | 5085*1800*2500 | 12500 |
| CCFJ200JW | 200 | 250 | 60/440 | TBD234V6 | 222/1800 | V6 | 47.29 | MP-H-200-4 | SVH314 | 2430*1125*1850 | 2740 |
| CCFJ250JW | 250 | 313 | 60/440 | TBD234V8 | 296/1800 | V8 | 58.53 | MP-H-250-4 | SVH314 | 2775*1130*1850 | 3200 |
| CCFJ400JW | 400 | 500 | 60/440 | TBD234V12 | 444/1800 | V12 | 103.95 | MX-H-400-4 | SVH354 | 3675*1270*1850 | 4500 |
| CCFJ500JW | 500 | 625 | 60/440 | TBD604BL6 | 600/1800 | L6 | 129.41 | MX-H-500-4 | SVH354 | 3815*1350*2130 | 5500 |
| CCFJ800JW | 800 | 1000 | 60/440 | TBD620V8 | 910/1800 | V8 | 199 | MX-H-800-4 | SVH404 | 4200*1695*2275 | 7200 |
| CCFJ1200JW | 1200 | 1500 | 60/440 | TBD620V12 | 1364/1800 | V12 | 275.29 | MX-H-1200-4 | SVH454 | 4795*1965*2275 | 9500 |
| CCFJ1600JW | 1600 | 2000 | 60/440 | TBD620V16 | 1819/1800 | V16 | 402 | MX-H-1600-4 | SVH454 | 5085*1800*2500 | 12500 |
