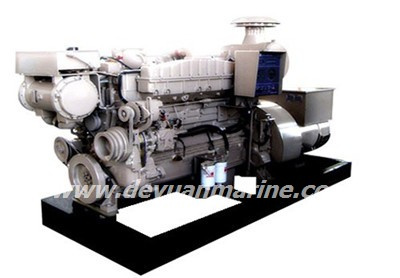

50kw Marine Cummins Genset/Cummins Generator Set
50KW Cummins Genset, 65KW Cummins generator set, 75KW Cummins Genset:
50KW Genset Features:
Genset model: DY-CGM50A
Engine Model: 6BT5.9-GM83(cummins brand)
Alternator Model: UCM224F
Rated Power: 50 KW
Standby Power: 55 KW
Rated Voltage: 380/220V, 400/230V, 415/240V, 440/254V
Frequency: 50 Hz
Power Factor: 0.8
Winding Connection: 3-phase, 4-wire
Dimension(mm): 1560*750*1290
Net Weight: 1200 KG
Engine Details:
Engine Model: 6BT5.9-GM83(Cummins)
Rated Power: 83 KW@1500 rpm
Bore * Stroke (mm): 102*120
Engine Type: 6 Cylinders, in Line, 5.9 L
| Alternator for DY-CGM50A Generator Set |
| Alternator Brand | Stamford |
| Alternator Model | UCM224F |
| Frequency | 50 HZ |
| Rated Votage | 380/220V, 400/230V, 415/240V, 440/254V |
| Winding Connection | 3-phrase, 4-wire |
| Power Factor(COS) | 0.8 |
| Stator Winding | Double Layer Concentric |
| Exciting Method | Brushless Self-exciting |
| Insulation System | Class H |
| Protection Class | IP23 |
| Winding Leads | 12 |
| Winding Pitch | Two Thirds |
| Voltage Regulation | ± 1.0 % |
| Efficiency | 90.1% ~ 90.7% |
| Waveform Distortion | <1.5% (no load) |
| Maximum Overspeed | 2250 Rev/Min |
| Telephone Interference(THF) | 2% |
Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .
We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.
We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field
Our products include:
Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)
Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)
Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)
Marine Mooring Equipment: (marine anchor, anchor chain etc)
Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)
Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)
Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.
We are very confident that our ethusiasam and profession, integrerity will earn your trust.
