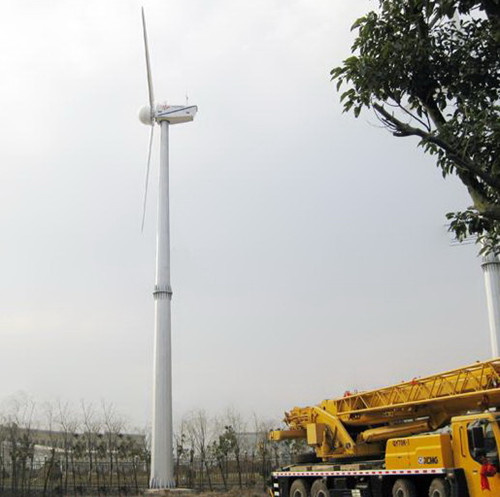

Intelligent Wind Turbine generator (H16.5-50KW)
I. Product features:
1. SCF Supercritical generator
Hummer 50kW wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 20% to 30% of the traditional one, and the production efficiency is 10% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
2. NSK bearings
Hummer 50kW wind turbine adopts the NSK bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load.
3. PLC integrated with Siemens module
Hummer 50kW wind turbine's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
4. Low noise
The design of the rotor blade of Hummer 50kW wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
5. Triple braking protection
Hummer 50kW wind turbine generally adopts the yawing system and the electromagnetic braking system to regulate the rotation of the wind turbine. Besides, customer can order the hydraulic braking system as well as a third protection. It is easy and convenient to shut down the whole system both manually and automatically.
| Rated power (W) | 50000 |
| Maximum output power (W) | 50000 |
| Battery bank voltage (VDC) | 400 |
| Cut-in wind speed (m/s) | 3 |
| Rated wind speed (m/s) | 11 |
| Working wind speed (m/s) | 3-25 |
| Survival wind speed (m/s) | 50 |
| Generator efficiency | >0.90 |
| Generator type | Permanent Magnet Alternator |
| Generator weight (kg) | 2000 |
| Blade material/quantity | GRP/3 |
| Blade diameter (m) | 16.5 |
| Over speed control | Yaw + Pitch control + Hydraulic brake |
| Shutting down method | Manual + Automatic |
