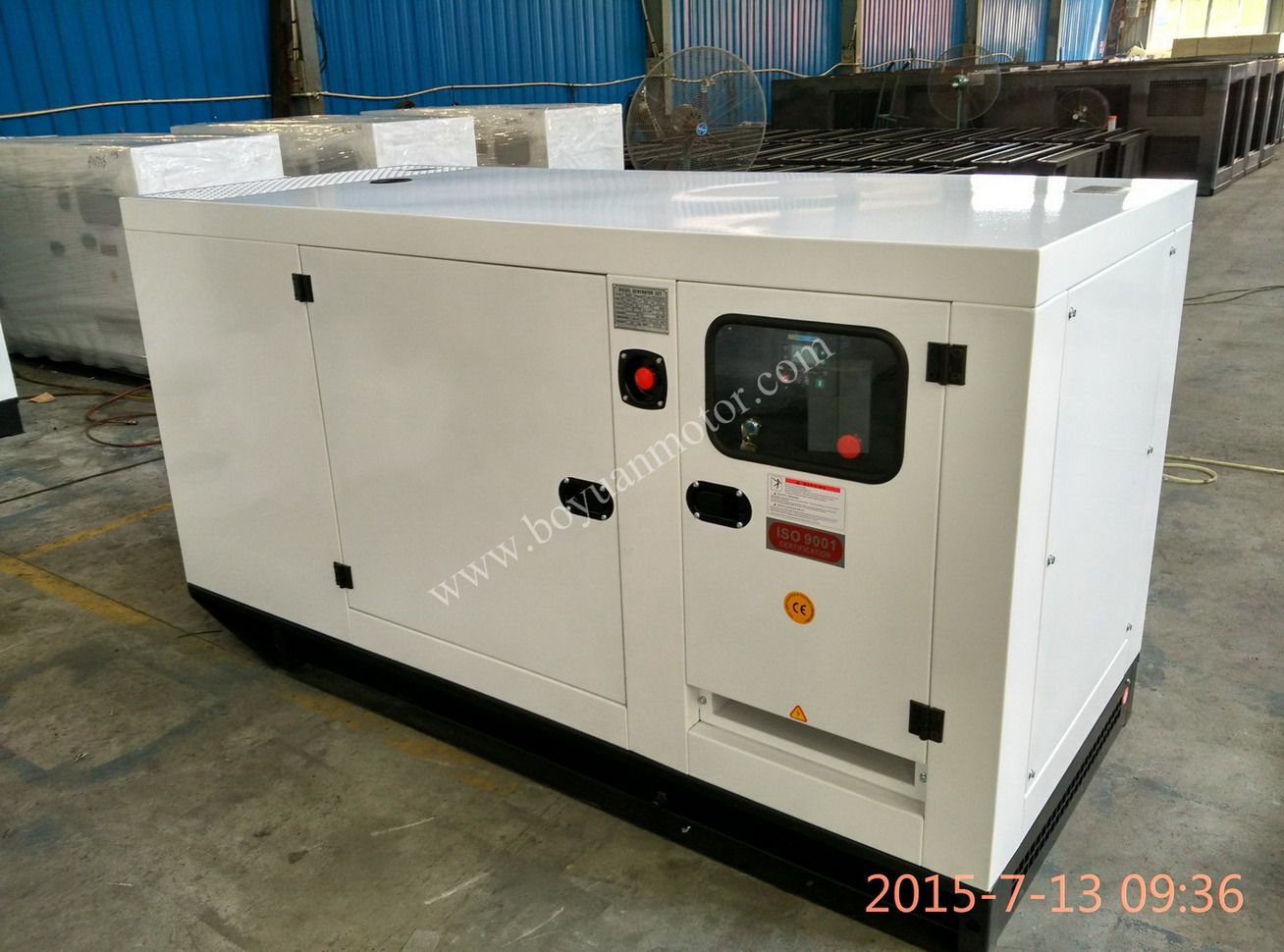

Yuchai Chinese top brand diesel generator set
Diesel engine:
*Heavy load durable, four-stroke, water cooled engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner
*24V DC safe isolate valve
*Dual spin-on paper element fuel filter
*Gen-sets equipped with dual flexible fuel union pipe.Diesel generator set
Alternator:
*Brushless, four-pole revolving field, single bearing and drop proof screen protected.
*Class H insulation
*IP21-IP23 protection standard
*Dynamically balanced rotor to BS 5625 grade 12.5
*High-quality lubrication sealed for long-life bearing
*If need Stamford Original, PLS contact us for further prices
Control system:
Cummins standard control module
*Completed gen-set parameter display, perfect protection and control function
*All English display, friendly operation interface
*Excellent anti-jamming function, adapt to extreme condition.
*Independent over-load protection
*Unique sensors protection, adapt to all sensors
Sound proof canopy:
* With special treated steel sheet
* Stainless steel locks
* Control panel viewing window for monitoring the status of the generator set
* Good ventilation system and anti-heat radiation struction
* Effective anti-vibration devices to ensure the geneartor set run steadily
* Super silent materials inside to ensure the noise lower than 68 dB 3 meters away
* Emergency stop button mounted outside
* Side lockable door easy for maintenance and installation
* Lube oil and cooling water drains piped to exterior of the canopy
Our advantage:
Professional diesel engine manufacturer, not simply assembler or trader
Decades' years of manufacturing and exporting experience
Adopt International quality standards, to meet high quality requirement
Good reputation for Reliable quality & Reasonable price
Strong technical support
Advanced production line with skilled workers.Diesel generator set
Sales Promises:
We provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment. Quality warranty is according to our standard conditions:12 months from date of bill of lading or 1000 hours of running, whichever comes first.
Efficient process
You can tell us the capacity of generator set you need, or tell us the engine /alternator/ controller you like
We have all kinds of engines such as Cummins series / (Lovol) series / Deutz series / Yuchai and so on
The alternator we have Stamford / TFW / MDG / ST / STC and so on
Then we will introduce Corresponding alternators and generator sets to you
It will be efficient to tell your budget
At the last let us talk about some optional accesorries and the price
Packaging & Shipping
Packaged by seaworthy wooden cases or plywooden cases or bubble wrap packing
Our Services
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
| MAIN SPECIFCICATIONS OF GENERATOR SETS |
|
|
| GNESET MODEL | GF-YC20 | GF-YC30 | GF-YC40 | GF-YC50 | GF-YC64 | GF-YC75 | GF-YC100 | GF-YC120 | GF-YC150 | GF-YC200 |
|
|
| Alternator Model | TFW-20 | TFW-30 | TFW-40 | TFW-50 | TFW-64 | TFW-75 | TFW-100 | TFW-120 | TFXH-150 | TFW-200 |
|
| Rated Voltage(V) | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 |
|
| Rated Current(A) | 36.1 | 54.1 | 72.2 | 90.2 | 115.2 | 135.3 | 180 | 216.5 | 270.6 | 360.8 |
|
| (Hz/rpm) | 50/1500 |
|
| Power factor (Cos ) | 0.8 lagging |
|
| Phase | 3-Phase4-wire |
|
| Voltage Regulation | 0.5%with 4%engine governing |
|
| Exciting | Brushless-self-exciting |
|
| Engine Model | YC2115D | YC2115ZD | YC4D55-D20 | YC4D75Z-D20 | YC6B95-20 | YC6B115Z-D20 | YC6B150L-D20 | YC6A190L-D20 | YC6G205L-D20 | YC6M320L-D20 |
|
|
| Rated output (KW) | 27 | 33 | 40 | 55 | 70 | 84 | 112 | 139 | 150 | 235 |
|
|
| Model Information | Vertical,in-line,water-cooled,4-stroke |
|
|
| Intake way | Natural Aspiration | Turbo-charging | Natural Aspiration | Turbo-charging | Natural Aspiration | Turbo-charging | Gasturbo-charging&lnter-cooling |
|
| Bore-stroke(mm) | 115*120 | 115*120 | 108*115 | 108*125 | 108*132 | 112*132 | 120*145 |
|
| Piston Displacement(L) | 2.49 | 2.49 | 4.21 | 6.87 | 7.25 | 7.8 | 9.84 |
|
| Start Method | Electric Start |
|
| Min.Fuel Consumption | Fuel | <232 | < 232 | < 199 | < 197 | < 198 | < 197 | < 195 | < 195 | < 195 | < 195 |
|
| Oil | < 0.5 |
|
| Dimension(cm) | 1550*750*1100 | 1550*750*1200 | 2000*850*1200 | 2000*850*1200 | 2300*900*1400 | 2300*900*1400 | 2400*900*1400 | 2500*900*1400 | 2800*950*1450 | 2950*1000*1600 |
|
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
