Company information
Weifang Huaquan Power Machinery Co.Ltd is in economic technical development area of Weicheng Shangdong Province ,professsional produing, running,developing terrestrial and marine diesel generator, natural gas generator and automatic pumps.The series of our product including lots of famous brand in the world,such as Cummmins, Steyr,deutz, Volvo,Ricardo ect. The kilowatt is from 8kw to 1500kw. alternator are chosen as Stanford,Leroy Somer,Engga,Qianghui, and we have already registered as the name of Huaquan Diesel Generator set.we also pay attention to building after-sale service ,solved lots of customers' problems .Our product are sold to more than 30 countries and areas such as Africa ,Europe ,West Asia and Southeast Asia.

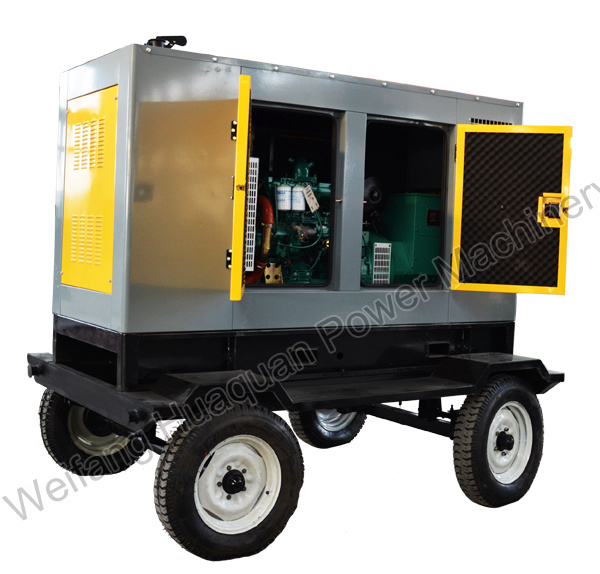

50KW Yuchai Diesel Generator
50KW Yuchai Diesel Generator: Power prime:50kw(63kVA),Max Power:55kw(69kVA) Engine Model Brand:Yuchai YD4D85Z-D20 Alternator:China Stanford Brushless Speed adjustment options: Mechanical or Electrical
50KW DIESEL GENERATOR DETAILS |
Model | HQY50GF | Start Method | DC 24 |
Generator Prime Power(KW/kVA) | 50/63 | Output Current(A) | 90 |
Standby Power(KW/kVA) | 55/69 | Voltage(V) | 400/230 |
Power Factor | 0.8 | Phase | Three phase, Four Wires |
Frequency(Hz) | 50 | Weight(kg) | 1000 |
Size(mm) | L | W | G |
1800 | 750 | 1300 |
Diesel Engine Data |
Manufacturer | Yuchai | Model | YC4D85Z-D20 |
Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 60.5 |
Cylinder No. | 4 | Arrangement Type | In-line |
Bore×Stroke(mm) | 108×115 | Displacement(L) | 3.61 |
Intake Method | Turbocharged | Compression ratio | 17.0:1 |
Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
Oil Capacity(L) | 14 | Start Method | Electrical |
Engine Cooled Method | Radiator Max 40ºC,fans are driven by belt with safety guard. |
Alternator Data |
Manufacturer | China Stanford | Model | XN50 |
Rated Power(KW/kVA) | 50/63 | Excitation Type | Brushless |
Insulation Class | H | Protection Grade | IP22 |
Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
Efficiency (%) | 94.8 | Voltage Control Method | AVR |
Guangxi Yuchai Diesel Generator Set Features:
1. Diesel generator adopt the Guangxi original Yuchai engine, as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled
2. Yuchai engine basic its years experience,produce the more strong ,stable and low fuel cost engine.
Widely used as continous work area, continous working time more than 48 hours.
3. Yuchai engine strong power,stable,long working life,low fuel cost, and price economic, price lower than Deutz, Cummins engine etc.Widely used in Factory, Project, Shop,Hospital ,Train,Aireport,station etc areas.
4. Alternator, adopt option brand like China brush alternator, Stamford, Farady, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life..
10.We offer options generators as the below shows:
A.Frequency we offer 50Hz and 60Hz.
B.Voltage: we offer 110/220V, 240V,380V/440V,254V/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank
Company strength
Weifang huaquan machinery co.Ltd is a company specialized in manufacturing and selling diesel engine , diesel generator set ,natural gas engine generating set and automatic pump unit and always devotes itself to manufact.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
