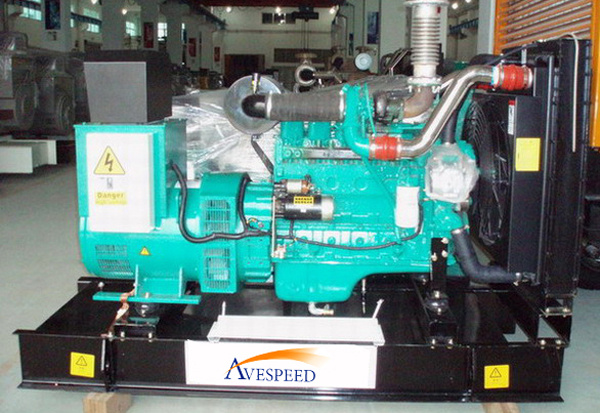

50KW Cummins Range Generating Set (Open-Frame Type)
Engine:
4 strokes, direct injection, water-cooled, exhaust turbocharging, inter-cooling.
Alternator:
World-famous Brand: Stamford, Marathon, Leroy Somer, Kaijieli,
Type: Brushless, Self-exciting, Class 4, Self-ventilating, Rotating Magnetic Field,
Protection Grade: IP23,
Insulation Class: H, Single Bearing.
Controller specification:
DSE6020 is an AutomaticMains (utility) Failurecontrol module for single genset application. Mains Failure detection canbe disable by the customer.
1. Designed to work with electronic and non-electronic engine, Display parameter of
2. Engine: Speed, oil Pressure, cool temperature, fuel level and plant battery.
3. Display parameter of generator: Frequency, voltage and current.
4. Display parameter of Gen-set power: KVA, KW, PF, KVAR, KWh, KVAH andKVARH
5. Display parameter of mains: Frequency and voltage.
6. The module can be programmed using the front panel or by using the DSE Configuration Suite PC software.
7. Oil pressure and engine temperature sensors have self-checking function.
Delivery Time: 25 working days
Period of Validity: In 30days
Packing: Wooden packaging, foam packing or as Need
Certificate: CE& ISO 9001 CCS CQC ISO 8528
Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery.
Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
| Generator Type | Spare
KW | C ommon
KW | Engine model /Power (kw) | Lube capacity (L) | A lternator Type | Weight (kg) | Demensions(mm)
LxWxH |
| Stamford |
| AVE -C20GF | 20 | 25 | 4B3.9-G2/24kw | 10.9 | PI144E | 750 | 1700x750x1150 |
| AVE -C30GF | 30 | 3 7.5 | 4BT3.9-G2/36kw | 10.9 | PI144J | 840 | 1700x750x1150 |
| AVE -C40GF | 40 | 50 | 4BTA3.9-G2/50kw | 10.9 | UCI224D | 940 | 1700x750x1150 |
| AVE -C50GF | 50 | 62.5 | 6BT5.9-G2/90kw | 16.4 | UCI224E | 940 | 2100x750x1250 |
| AVE -C64GF | 64 | 8 7.5 | 6BT5.9-G2/90kw | 16.4 | UCI224G | 1120 | 2100x750x1250 |
| AVE -C75GF | 75 | 94 | 6BT5.9-G2/90kw | 16.4 | UCI274C | 1120 | 2100x750x1250 |
| AVE -C160GF | 160 | 200 | 6CTAA8.3-G2/183kw | 16.4 | UCI274H | 1990 | 2300x850x1350 |
| AVE -C180GF | 180 | 225 | NT855-G/225KW | 14 | UCDI274J | 2600 | 3100x1000x1750 |
| AVE -C200GF | 200 | 2 50 | NT855-GA/254KW | 14 | UCD274K | 2600 | 3100x1000x1750 |
| AVE -C500GF2 | 500 | 625 | KT38-G/615KW | 37.8 | HCI544FS | 8650 | 4450x1700x2300 |
| AVE -C520GF2 | 520 | 520 | QSKTAA19-G3/634KW | 37.8 | HCI544F | 8650 | 4450x1700x2300 |
