Engine:
1. Made in chinese cummins engine factory, brand of the cummins corporation U. S
2. Bosch fuel system and the technology of turbocharger and after-cooler, higher power output.
3. Lower fuel lubrication oil consumption
4. Most convenient and shortcut services throughout their service networks in 160countires.
Alternator
1. Optional permanent generator (PMG) system provides constant excitation under all conditions
2. Easy paralleling with mains or other generators, standard 2/3 pitch winding avoids excessive neutral currents
3. Dynamically balanced rotors with sealed-for-life ball bearing and single construction
4. H-class insulation system
5. Wide ranf of flange adapters and isc couplings
6. Conforms to all leading industrial standards.

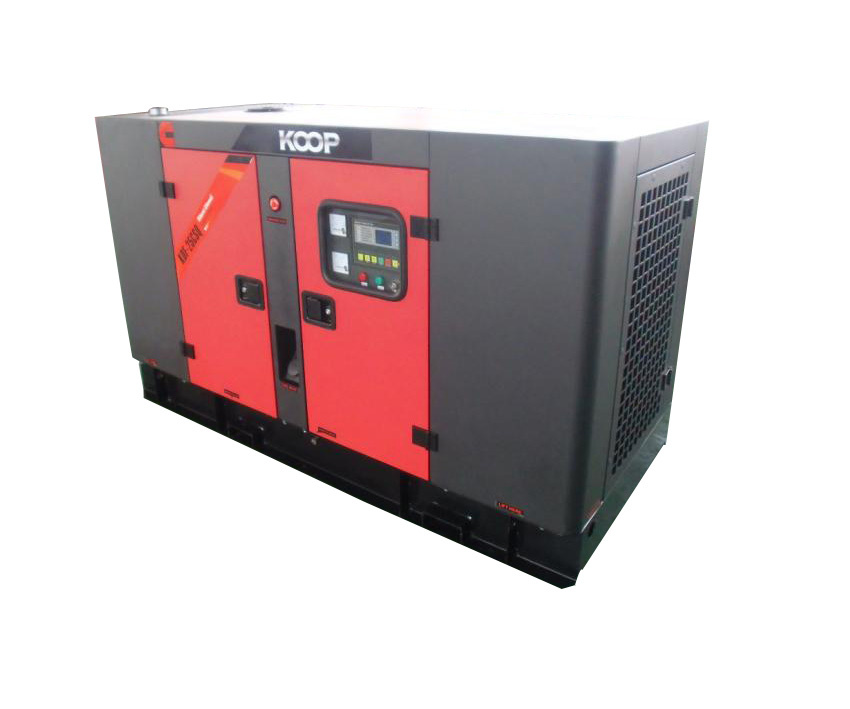

MODEL
| KDF-50CM/Q
|
Powered by Cummins Engine
|
Continuous Power
| 50KW/62.5KVA
|
Standby Power
| 55KW/69KVA
|
Engine Model
| 6BT5.9-G2
|
Engine Power
| 92KW/115KVA
|
Speed
| 1500rpm
|
Cooling Method
| Water - cooled
|
Starting Method
| 24V DC electrical start
|
Compression Ratio
| 17.5:1
|
Bore x Stroke(mm)
| 102 X 120
|
Cubic Capacity(L)
| 5.9
|
Fuel Consumption
| ≤ 215g /kW.h
|
Lube Consumption(prime)
| ≤ 1.36g /kW.h
|
Radiated Heat to Ambient(KW/m)
| 14
|
Heat Rejection to coolant(KW/m)
| 62
|
Heat Rejection to Exhaust(KW/m)
| 69
|
Intake Air Flow(I/s)
| 94
|
Exhaust Gas Flow(m 3 /h )
| 840
|
Exhaust Temperature( )
| 510
|
Fan Cooling Air Flow(m 3 /h )
| 7470
|
Exhaust Back Pressure
| 10kPa(Max)
|
Max. water temperature
| 100
|
Alternator Model
| GM-50-4
|
Alternator Power
| 50KW/62.5KVA
|
Voltage
| 380/220V
|
Electric Current
| 95A
|
Power Factor
| 0.8
|
Phase
| 3-phases
|
Brush/Brushless
| Brushless
|
OPTIONAL
|
|
Panel
| Auto Transfer Switch (ATS) Control Panel
|
ATS
| Electricity Output Cabinet ( ≥ 75KW better chose)
|
KOOP is a pioneer enterprise which involves in the research and manufacture of small power engine and standby power system. The core team consists of industrial senior technology experts and management elites, who acquire the advanced design ability as well as abundant experience in internal combustion engine, electrical and electric field. After many years' efforts, with Changzhou KOOP Power Machinery Co., Ltd., Changzhou KOOP Imp. & Exp. Co., Ltd., and Changzhou Powermart Imp. & Exp. Co., Ltd. As sub-companies, KOOP has become a leading manufacturer of engine power industry in China.
Changzhou KOOP Power Machinery Co., Ltd., the manufacturing base of KOOP Group, which locates in the California Technology Park, Changzhou Development Zone, Jiangsu, China, is a modernized garden-like factory with convenient traffic and beautiful environment. The company has a construction area around 20000m2, including 5000m2 none-dust workshop and large logistics center, with an annual production capacity of 50, 000 air-cooled diesel engines and generator sets.
From the many years passed to now, KOOP has always been following the concept of 'Technology as priority, Quality as foundation'. Every product is elaborately manufactured and strictly tested according to standard, to ensure its high quality when delivered to customer. At present, the company has established and perfected the quality management system in accordance with TS16949 standard. KOOP will make continuous efforts to ensure the products quality and plant the quality as culture into the hearts of our staff. At the same time, KOOP will feed back our customers with best quality and price through design innovation, scientific management and lower cost.
KOOP is making ceaseless efforts to build itself the best engine power supplier in China. We are willing to develop with all the partners and create a bright future together.
