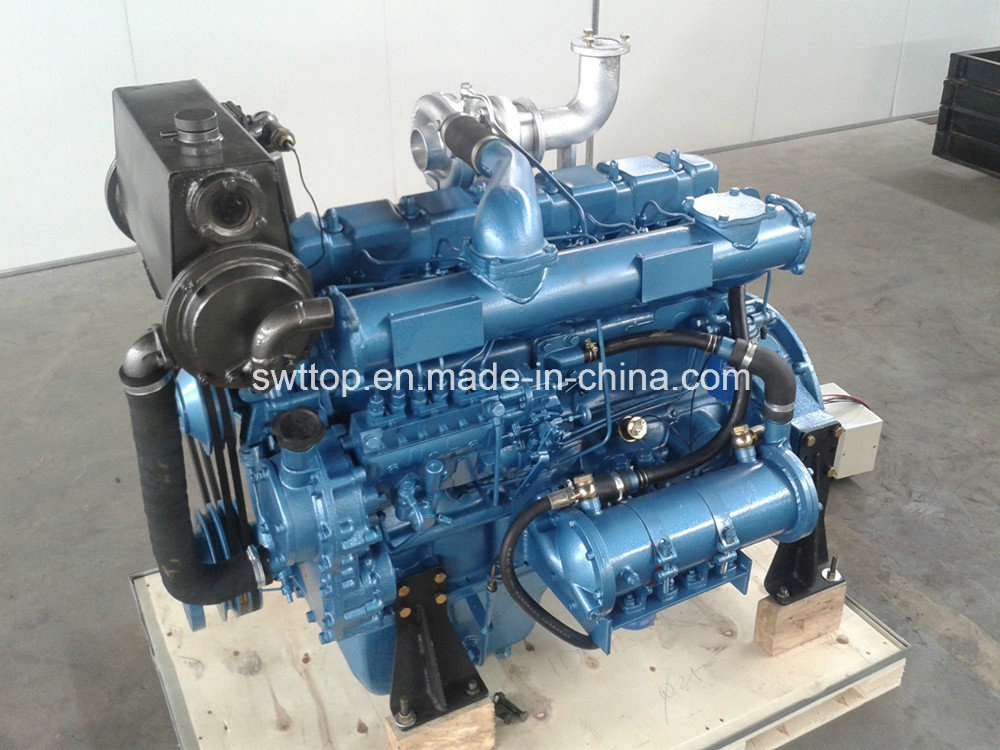

50kw / 60kw, 1800rpm, Ricardo 6105 Marine Engine for Generator Use
Price: |
US $ 1800-4000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
The marine engine is with sea water pump, heat exchanger, silencer with wave tube, big oil cooler, Deutz monitor, power output interface size is 3# shell, 11.5 inch flywheel:
Model | 6105ZC |
Usage | For generator use |
Rated power | 60KW |
Rated speed | 1800rpm |
Governor type | Mechanical |
Aspiration mode | Turbo charged |
Starting method | 24V, electric start |
Stroke | 4 stroke |
NO. of cylinders | 4 |
Fire order | 1-3-4-2 |
Type of cooling | Water cooled |
FIP type | Inline |
Displacement | 6.49L |
Fuel consumption at 100% load | ≤218 g/kw.h |
Lubricate oil consumption at 100% load | ≤2.04 g/kw.h |
Exhause temperature | ≤ 600°C |
BorexStroke | 105x125mm |
Compression ratio | 1:19 |
Recommended lub oil change period | 250 hours |
Type of lub oil filter | Spin on |
Type of air filter | Dry |
Interface | SAE3#, 11.5 |
Weight | ≤630 kg |
The diesel engine product include: 1: diesel engine 2: heat exchanger 3: sea water pump 4: 24V starter 5: 28V alternator 6: big oil cooler 7: injection pump 8: air filter 9: fuel filter 10: oil filter 11: Deutz monitor(without remote control) 12: turbo charger 13: stop solenoid |
Prod Model: |
6105 series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
CE, ISO9001 |
Fuel: |
Diesel Engine |
Speed: |
1800rpm |
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.
We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.
Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.
Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.
Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom
To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.
When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
